Well Depth Cable Level Meter

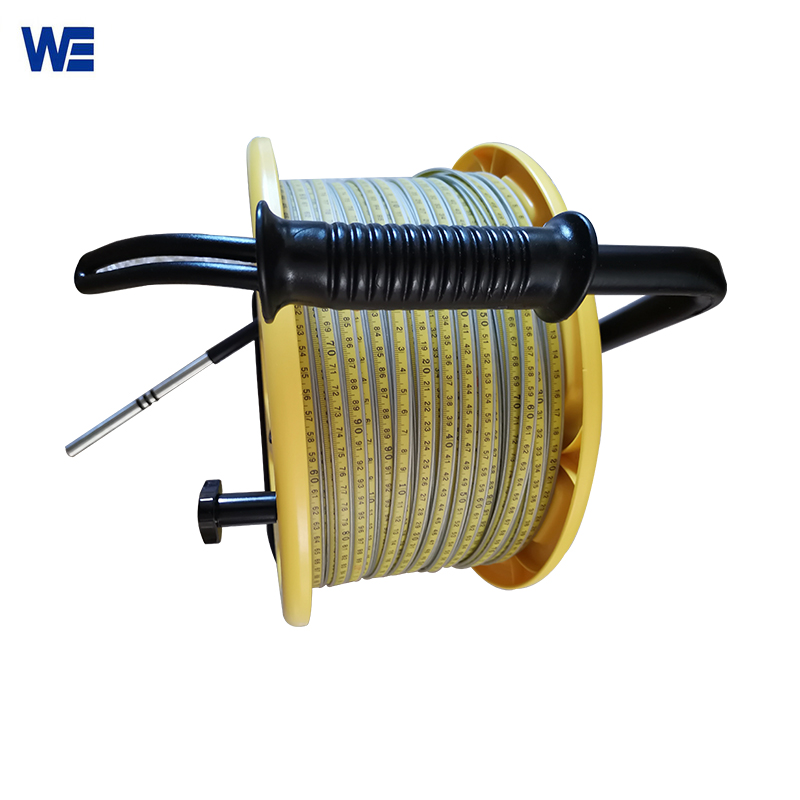

The structure of the Well Depth Cable Level Meter is simple, consisting of a probe, a steel rule cable, a receiving system and a winding reel.
The structure of the Well Depth Cable Level Meter is simple, consisting of a probe, a steel rule cable, a receiving system and a winding reel. Easy to use at site, there is no complicated debugging process, no installation steps, the use effect is not affected by the on-site environment, the measurement results are clear at a glance, and the product cost is also low.
The well depth cable level meter is compact in size and easy to carry. It can be used during water conservancy and hydrological construction and long-term safety monitoring of projects. Due to its advantages and characteristics, the well depth cable level meter is not only used in more and more industrial sites, but also in agricultural irrigation. , family farms are favored too.
▲Probe parts: stainless steel, installed the water resistance point of contact in inside , when the probe contact the water, it will turn on the receiving system automatically.
▲Portion of the cable: steel ruler tape with PE coating , combined by cables and wires, the readings greater ease and accuracy. Minimum scale: 1cm.
▲Receiving parts of the system: audio and peak indicator, the sound from the buzzer to send a continuous beep sound, the LED light and voltmeter indication is very necessary in the noisy surroundings, no matter what kind of reception system, readings are consistent.
| Product Name | Well Depth Cable Level Meter |
| Measure Range (m) | 30m,50m,100m ,150m,200m,250m,300m,350m,400m,450m,500m |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |
| Material | ● ABS Reel and handle ,Metal frame (Range less than 350m )
● Metal reel , Metal Handle , Metal Frame (Range≥ 400m ) ● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m) |
| Cable Material /Size | Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |
