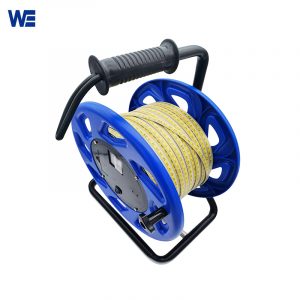

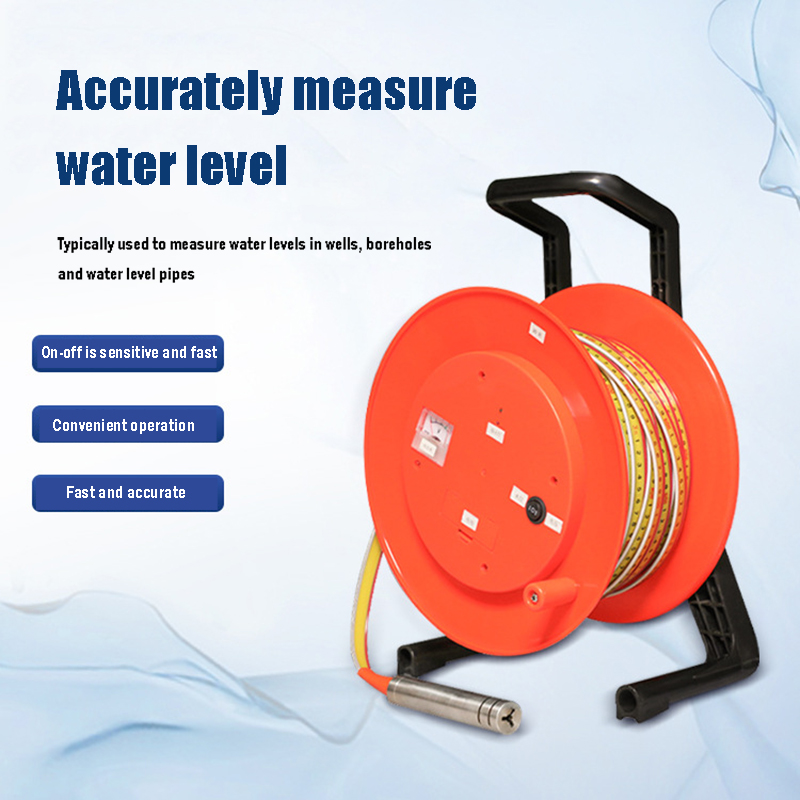

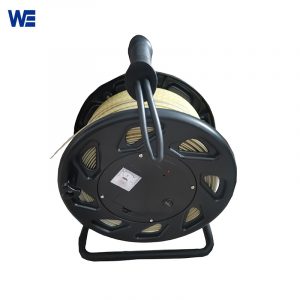

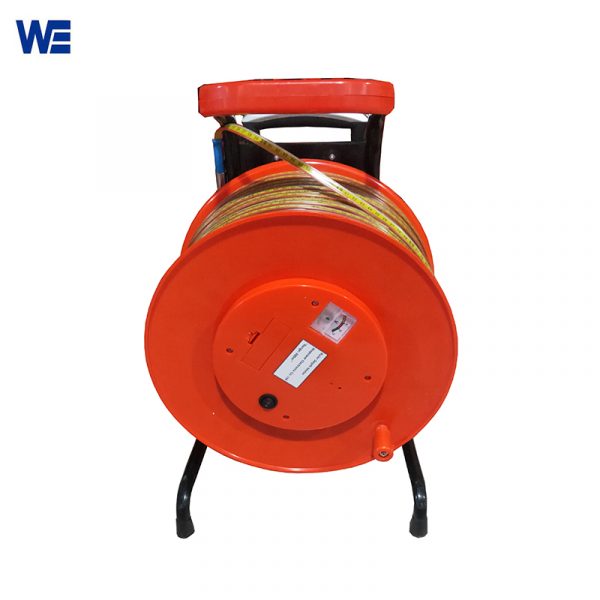

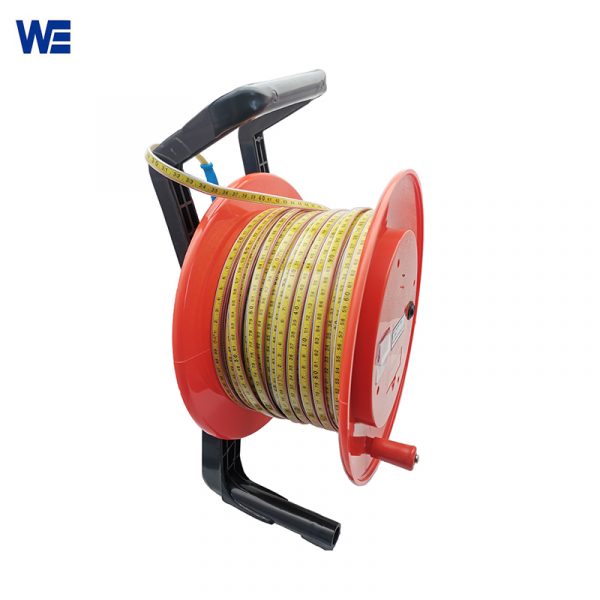

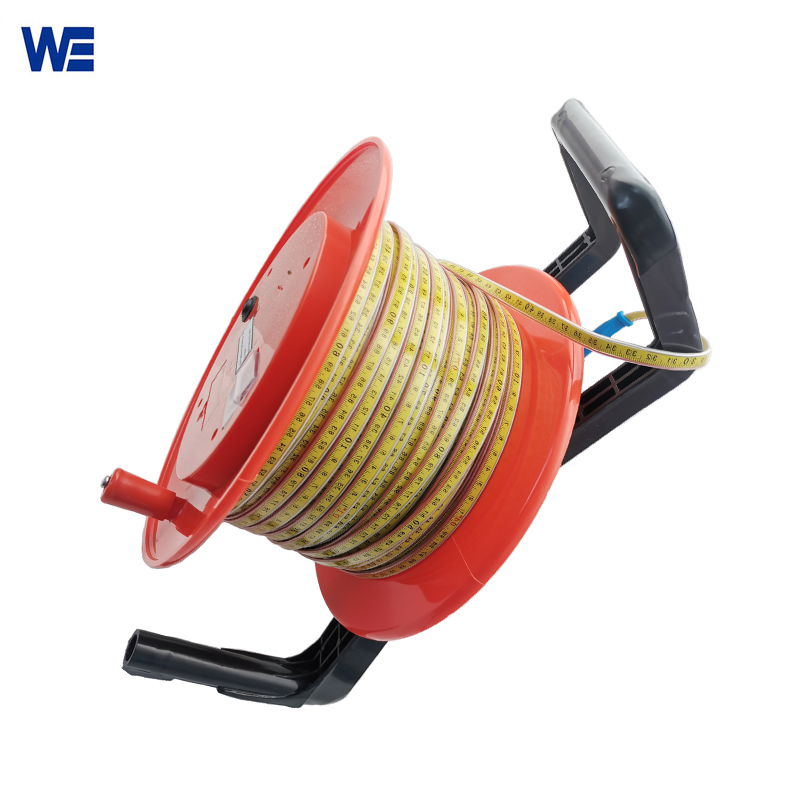

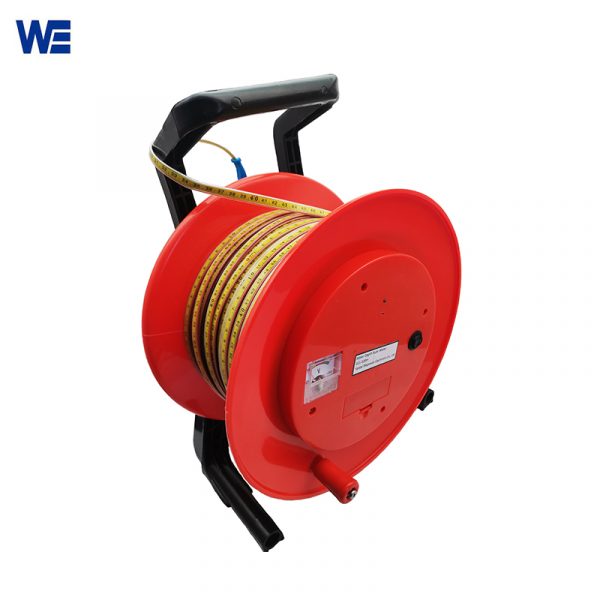

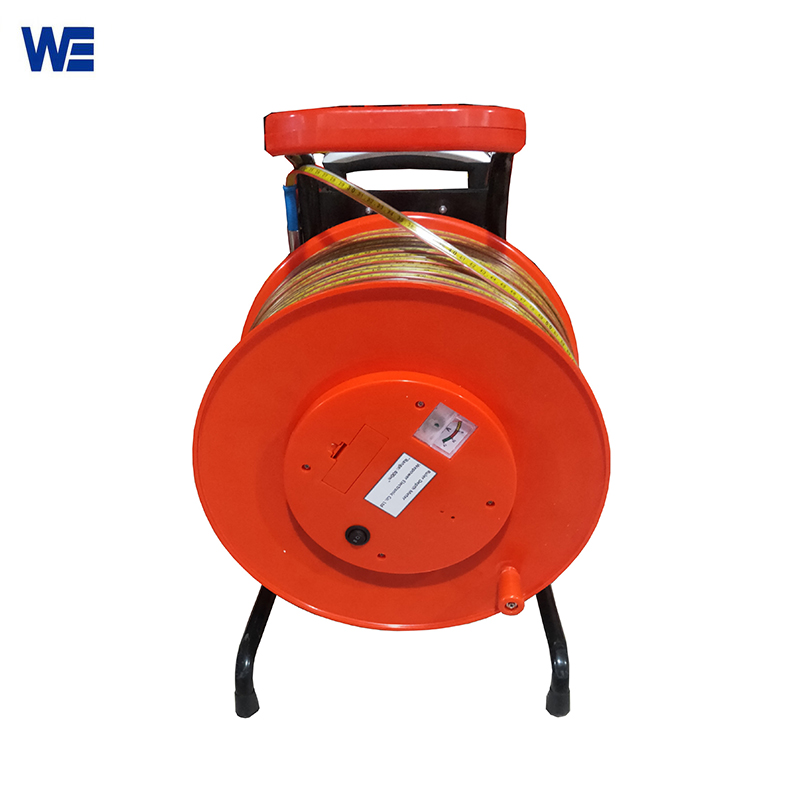

Water Level Indicator Meter
Water level indicator meter can measure 30 meters to 500 meters. This water level indicator meter probe is sensitive, the indicator meter reading is accurate, and it is suitable for the measurement of water in various states. Wepower Electronic has many years of production experience and strong qualifications.
Precautions For Using Water Level Indicator Meter:
The Water Level Indicator Meter can be utilized in a variety of settings, including water pipes, wells, and groundwater. The process of arrangement and operation does not require much effort and time. Since the water level indicator meter doesn’t require charging before use and can be readily measured by just changing the battery, it may be employed in a variety of field environments.
When using the Water level indicator meter, all that is required of the user is to position the steel ruler in an appropriate location and then manually rotate the turntable of the device so that the cable plastic ruler gradually extends into the measuring wellhead or deep underground hole. When the water level indicator meter’s alarm and indicator light go off, the probe has made contact with the water source, and the user can read the value on the ruler close to the hole at this time. Varied geographical areas have different requirements for the size of the water level indicator meter.
What Is The Standout Of The Water Level Indicator Meter?
The most outstanding thing about the water level indicator meter is the price/performance ratio. The water level indicator switch is sensitive and fast, the operation is simple and convenient, the measurement is fast and accurate, and its performance is not inferior to other water level meter products. Ours is less expensive overall than other items since it streamlines the functionality of the product based on the original.
| Product Name | Â Water Level Indicator Meter |
| Measure Range (m) | ECL-10m, ECL-20m, ECL-30m, ECL-50m, ECL1-00m, ECL-150m, ECL-200m, ECL-250m, ECL-300m, ECL-350, ECL-400m, ECL-600m etc. |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 15mm*160mm; (Dia16mm can be offered too) |
| Material | ● Stong ABS reel disc and frame ;Trolley for ≥400m range
â—Ź SS304 Probe |
| Cable Material *Size | Steel ruler with PE Coating ; Width: 9.8mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer |
| Product Size | Length 46cm * Width 37cm * Height 28cm (150 meters and below) ; Length 46cm * Width 37cm * Height 30cm (200m, 300m ) ; Length 51cm * Width 48cm * Height 64cm (400m,500m,600m) |
| Weight | 5KGS (50m )/ 9KGS(300m) /25KGS(500m) |
| Reel Disc Color | Orange |

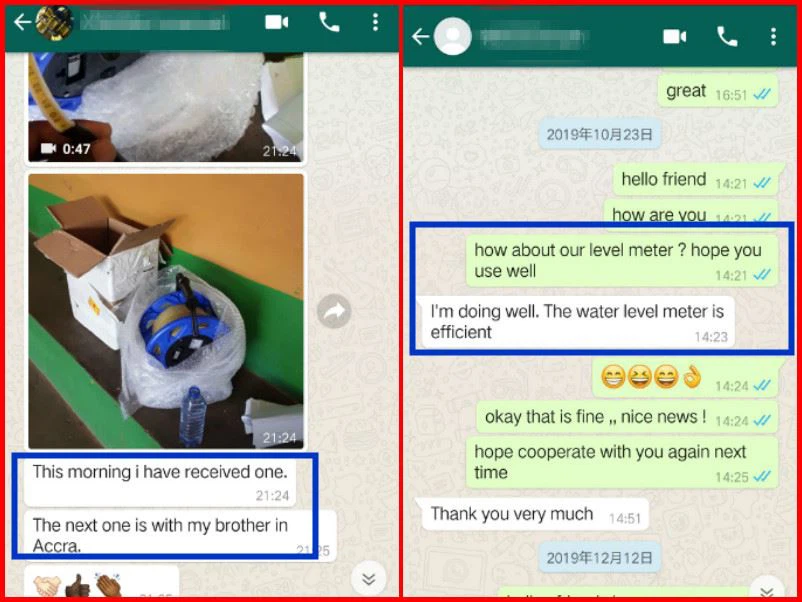

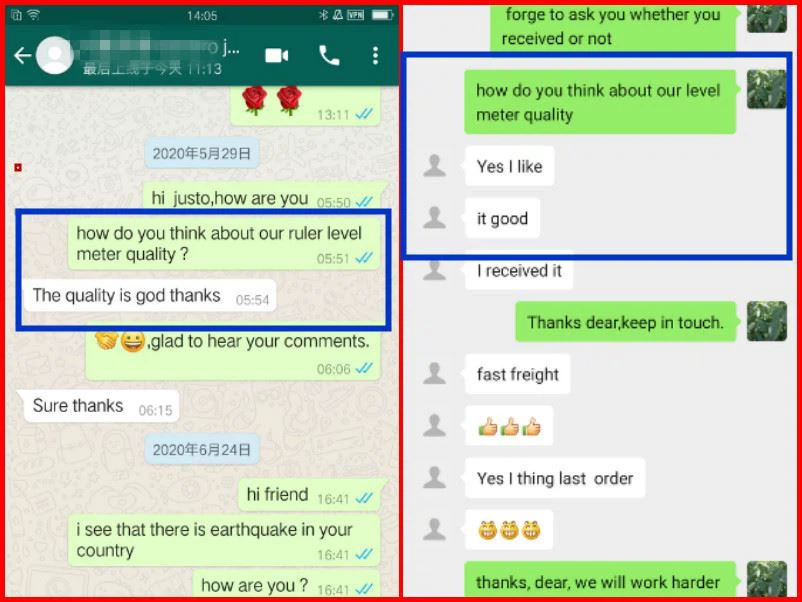

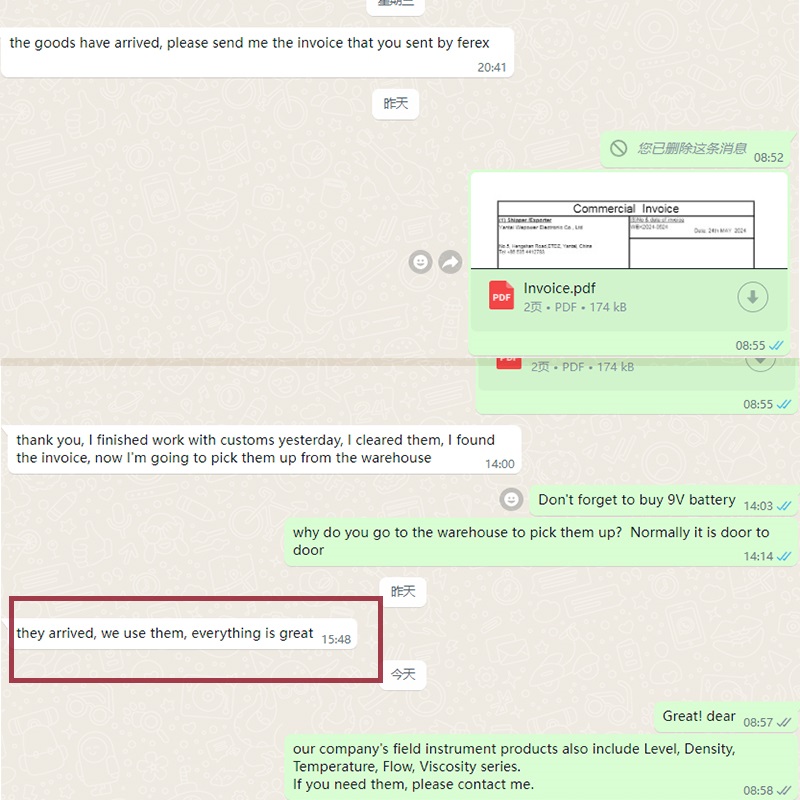

Customer Feedback

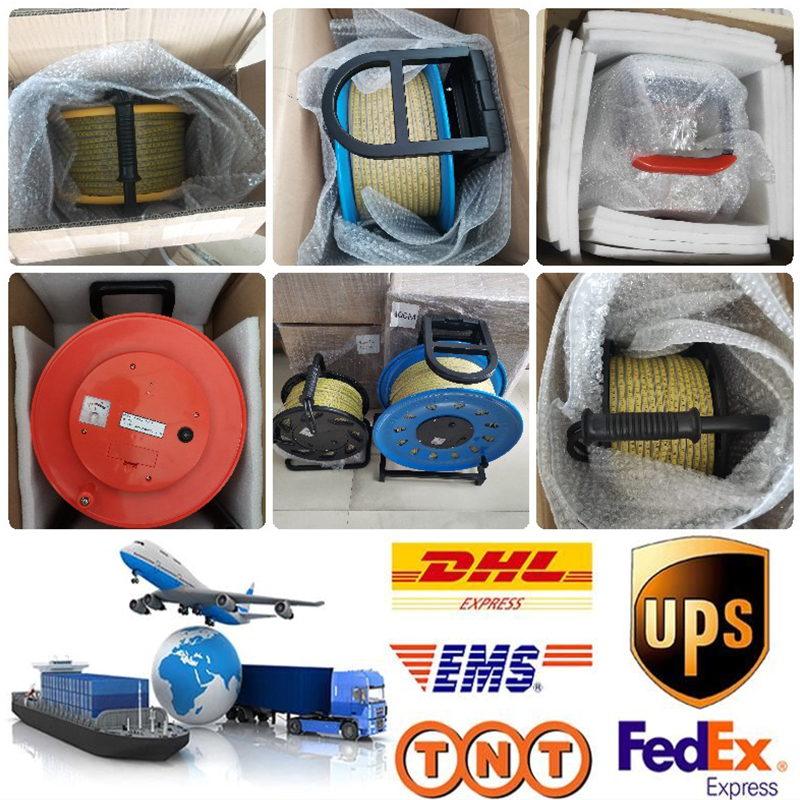

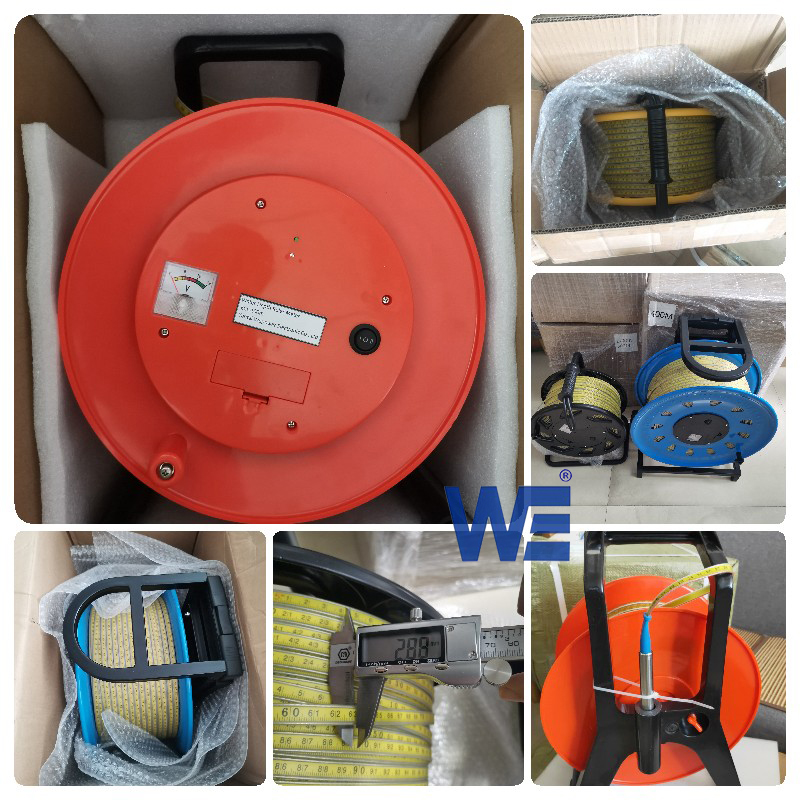

Our good quality level meter ,fast shipping , considerate service always get nice feedback from our customers all over the world , please see the details.
Click on the image to view more videos of water level indicator meter
