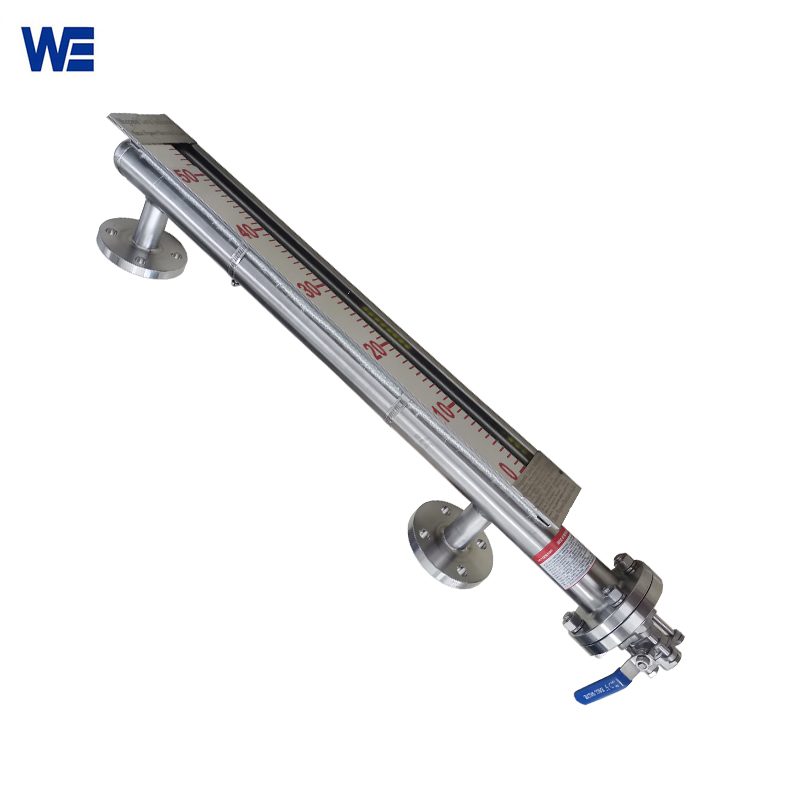

Water Level Gauge Magnetic Type
The water level gauge magnetic type can be used for the medium liquid level detection of various equipment such as towers, tanks, tanks, ball containers and boilers. What are you waiting for? Contact Wepower please!
The Water Level Gauge Magnetic Type can be used for the medium liquid level detection of various equipment such as towers, tanks, ball containers and boilers. If you need to measure aggressive media, such as Acids and Alkalis, you can order tubes made of PP or PVC, or you can use stainless steel tubes lined with PTFE for excellent reliability and corrosion resistance. Our Water Level Gauge Magnetic Type can meet all your customized needs. Moreover, our self-developed water level gauge magnetic type has a high cost performance and is favored by many countries around the world. What are you waiting for? Contact WEpower quickly!
| Product | Water level gauge magnetic type |
| Model number | WP/ZP- UHZ |
| Working principle | Magnetic coupling effect |
| Measuring media | liquid like water, solutions |
| Measuring range | 300-13000mm |
| Accuracy | 10mm |
| Working pressure | 1.0/1.6/2.5/4.0/6.0/16Mpa |
| Working temperature | -20~450°C |
| Medium Viscosity | ≤0.5Pa.S |
| Medium density | ≥0.45g / cm 3 |
| Relative Humidity | 10% to 90% |
| Environmental Pressure | 86KPa ~ 106KPa |
| Wetted materials | stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc. |
| Process connection | flange connection, DN25 by default. |
| Power supply | DC24V or AC220V |
| output | Mechanical type, output type(4-20mA+HART) |
| Display | With LCD display or Without |
| Installation type | Side mounted or top mounted |
Installation Feedback From One Of Our Overseas Customers, A 4-meter-long Magnetic Level Transmitter(With WEpower, Don’t Have To Worry About The Extra Long Size.)
