Water Dip Meter
Water Dip Meter uses a 9V lithium battery. Due to aviation logistics reasons, the battery is not included in the package when it leaves the factory, but it can be purchased locally.

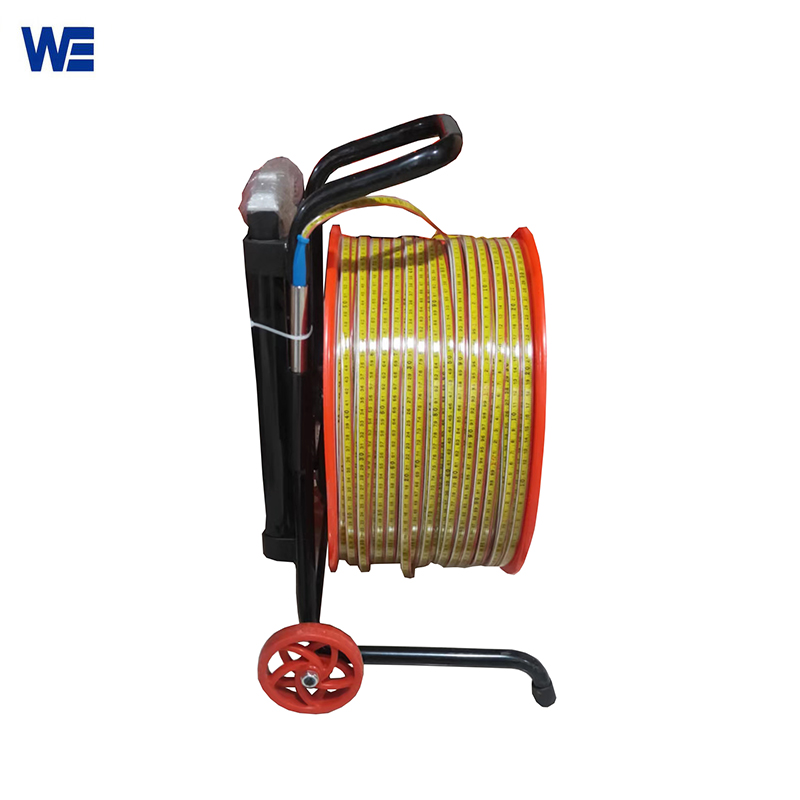

The Water Dip Meter Consists Of A Probe, A Steel Cable Ruler, A Receiving System And A Winding Reel

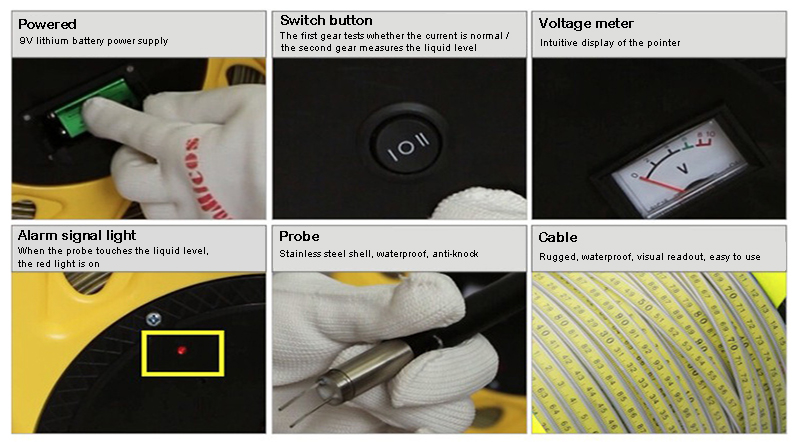

â–˛Probe: The probe of water dip meter is made of stainless steel, with water resistance contact points installed inside. When the contacts touch the water surface, the receiving system will be connected. When the contacts leave the water surface, the receiving system will be turned off.
â–˛Steel cable ruler: The steel ruler and the wire are combined into one by plastic technology, which prevents the steel cable from rusting and simplifies the operation process, making the measurement and reading more convenient and accurate.
â–˛Receiving system: It consists of a sounder, indicator light and peak indicator. The sounder emits a continuous buzzing sound, the indicator light is on, and the peak indicator is the voltage meter indication
Use Notice:
When measuring, loosen the stop screw in the back of the winding drive, let the wire spool rotate freely, press the power button (power indicator light), put the probe into the pipe, holding a cable, the probe move slowly, the sound of the receiving system will send a continuous buzz, read and write cable in the dept dimension of the nozzle is the distance from the nozzle to the groundwater. The water dip meter produced by Wepower Electronic is of stable quality, simple to measure and economical.
| Product Name | Â Water Dip Meter |
| Measure Range (m) | ECL-10m, ECL-20m, ECL-30m, ECL-50m, ECL1-00m, ECL-150m, ECL-200m, ECL-250m, ECL-300m, ECL-350, ECL-400m, ECL-600m etc. |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 15mm*160mm; (Dia16mm can be offered too) |
| Material | ● Stong ABS reel disc and frame ;Trolley for ≥400m range
â—Ź SS304 Probe |
| Cable Material *Size | Steel ruler with PE Coating ; Width: 9.8mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer |
| Product Size | Length 46cm * Width 37cm * Height 28cm (150 meters and below) ; Length 46cm * Width 37cm * Height 30cm (200m, 300m ) ; Length 51cm * Width 48cm * Height 64cm (400m,500m,600m) |
| Weight | 5KGS (50m )/ 9KGS(300m) /25KGS(500m) |
| Reel Disc Color | Orange |
Water Dip Meter of WEpower has won the favor of many customers in different countries due to its high-quality materials and high cost performance.
Water Dip Meter products are exported to Europe, South America, Africa, the Middle East and Southeast Asia.
