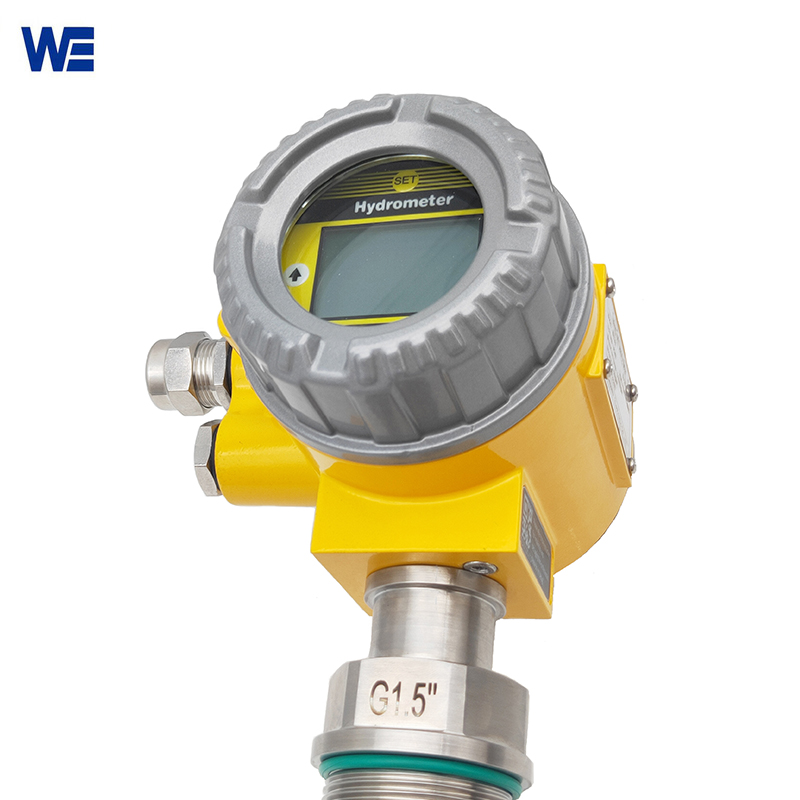

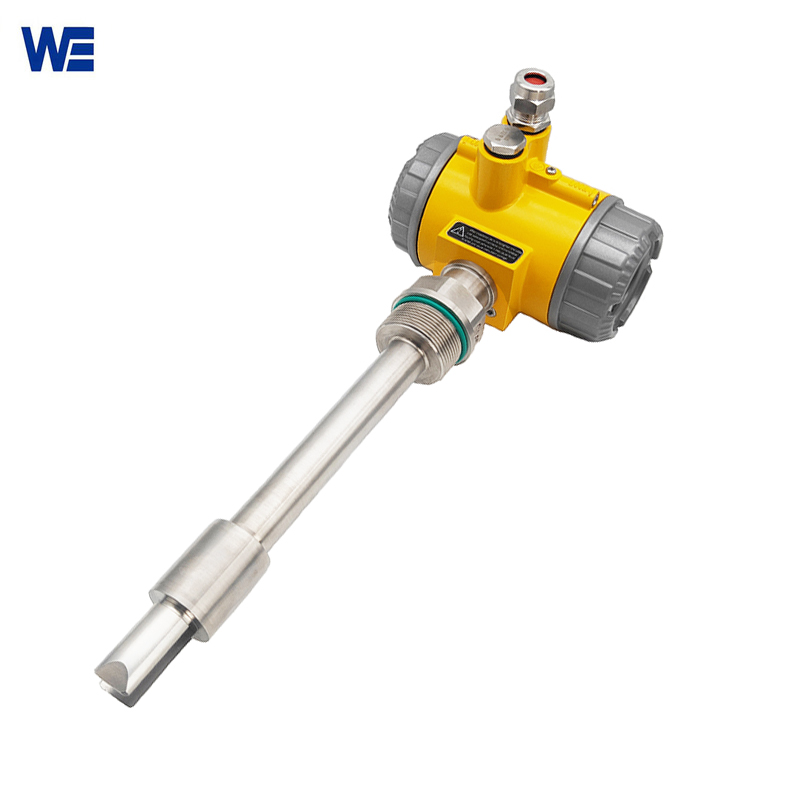

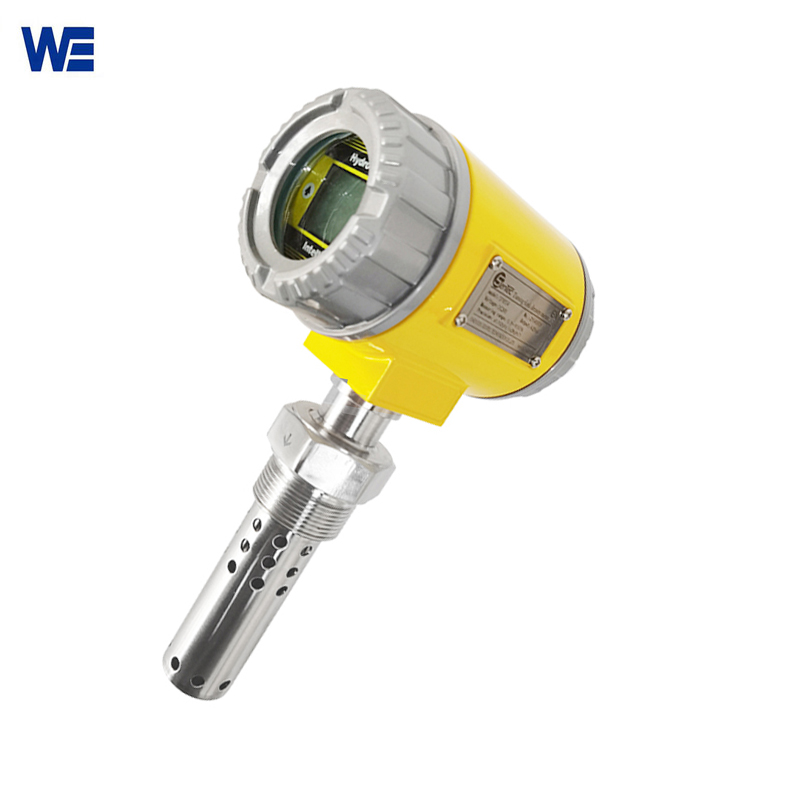

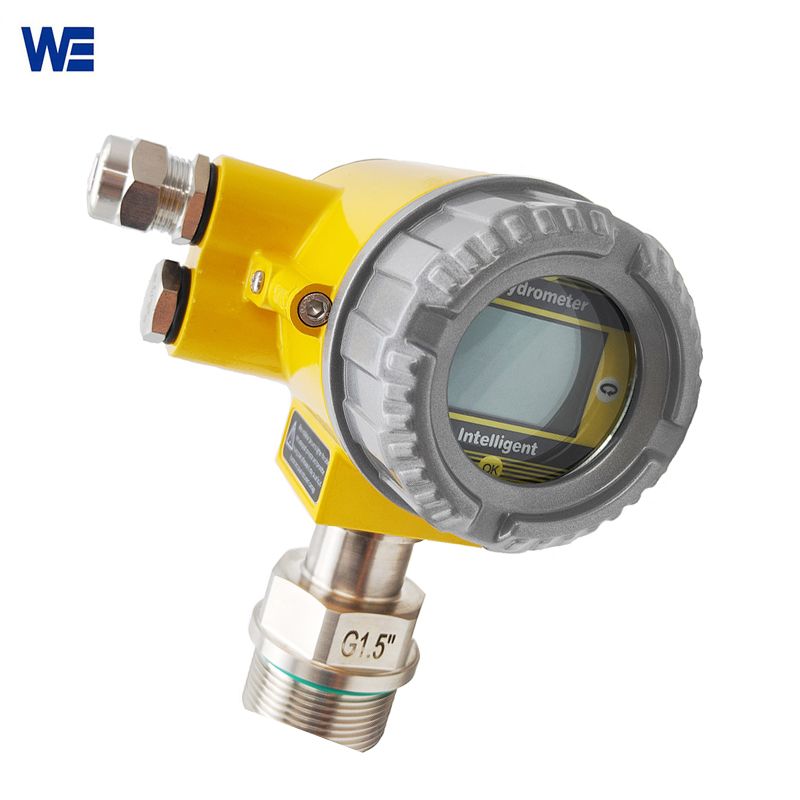

Vibration Type Liquid Density Meter
WPX301 Vibration Type Liquid Density Meter , compared with the old differential pressure principle density meter , WPX301 advantage is obvious and recognized by the modern industries process control : compact dimension , easy for transport and install , high accuracy and stability , insensitive for the influence of pressure , temperature and stirring ;reasonable competitive price with long lifetime !
WPX301 Vibration Type Liquid Density Meter ,it is also named Vibration Fork Density Meter,Micro Motion Density Meter, Tuning Fork Density Meter ,Direct Insertion Density Meter ,Online Densitometer. Compared with the old differential pressure principle density meter , WPX301 advantage is obvious and recognized by the modern industries process control , firstly WPX301 is compact dimension , easy for transport and install , require less installation works ; secondly the accuracy is much accurate , measuring is much stable because it is insensitive for the influence of pressure , temperature and stirring etc.; what is more ,our WEPOWER vibration liquid density meter is reasonable price in the market , although the price looks a little higher than the differential pressure principle density meter, but our lifetime is much longer . Above all , choosing WPX301 vibration density meter is high cost performance ratio!
| Product name | Tuning Fork Densitometer/Density Meter Online For Liquids / Mico Motion Liquid Density Meter |
| Measurement range | 0-2.5 g /cc (0-2500 kg/m3);，0~100.0% |
| Medium | Liquid;slurry , liquid mixture |
| Function | Test Density and Concentration online |
| Temperature range | -50 c ~+150 c |
| Accuracy | ±1-2kg/m3(± 0.002 g/cc ) |
| Max Working Pressure | 207bar (3000psi) |
| Medium Viscosity | 0-10000cp;Fluid viscosity range 0-2000cp |
| Power Supply | 24 V DC |
| Signal Output | 4 -20 mA，0-1000Hz，RS485 Modbus RTU |
| IP Grade | IP67 |
| Wetted Material | SS316/SS2205/Hastelloy C/ PTFE |
| Process Connecting | Flange (ANSI 150 ~1500 RF，DIN 50 PN16，DIN 50 PN40) /Tri- clamp /Thread |
| Disadvantage | not ideal for measuring crystallization and fouling media |
| Ordering Sheet | |||||||
| WPX301 | Vibrating Densitometer | ||||||
| / | CODE | Type | |||||
| A | Common | ||||||
| B | High Temp | ||||||
| C | Hygeian（Sanitary) | ||||||
| / | CODE | Length | |||||
| 01 | 150mm（Standard） | ||||||
| 02 | 200mm（Standard ） | ||||||
| 03 | Rod Extension 150mm～3000mm | ||||||
| / | CODE | Pressure | |||||
| D | 24V DC±10% | ||||||
| / | CODE | Material | |||||
| 1 | 316（Standard ） | ||||||
| 2 | 2205 | ||||||
| 3 | Hastelloy C | ||||||
| 4 | Anti-corrosive ，with coated PTFE | ||||||
| 5 | Other Customer Request | ||||||
| / | CODE | Process Connecting | |||||
| G | Dn50 PN16 316L | ||||||
| T | 1.5”G Thread | ||||||
| C | Tri-Clamp | ||||||
| F | Other Customer Request | ||||||
| / | CODE | Other Parameters | |||||
| A | Normal Temperature ℃ | ||||||
| B | Normal Pressure Kpa | ||||||
| C | IP Grade ：IP67 | ||||||
| D | Explosion-proof ：ExdⅡ CT5 | ||||||
| E | Temp:℃ | ||||||
| F | Pressure : Kpa or Mpa | ||||||
| （） | Other Customer Request | ||||||
| WPX301 | A | 01 | D | 1 | G | AB (Example ) | |
