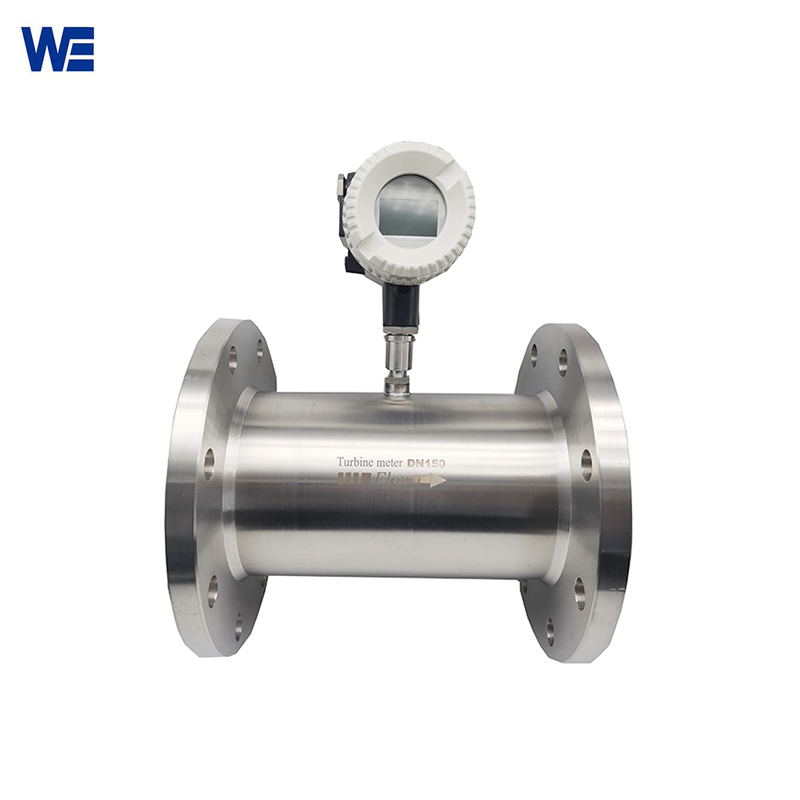

Turbine Type Flow Meter

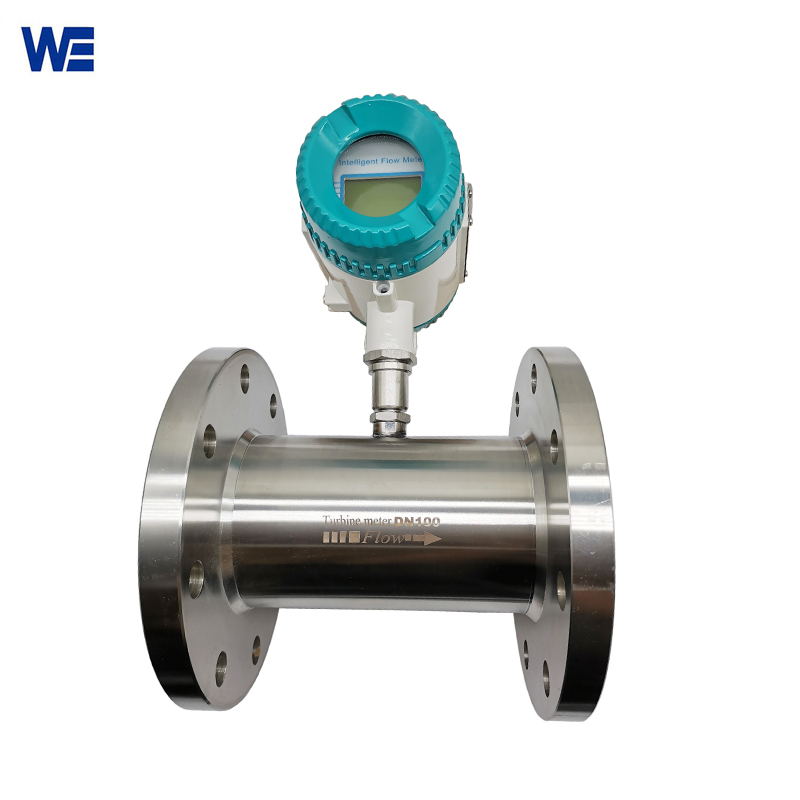

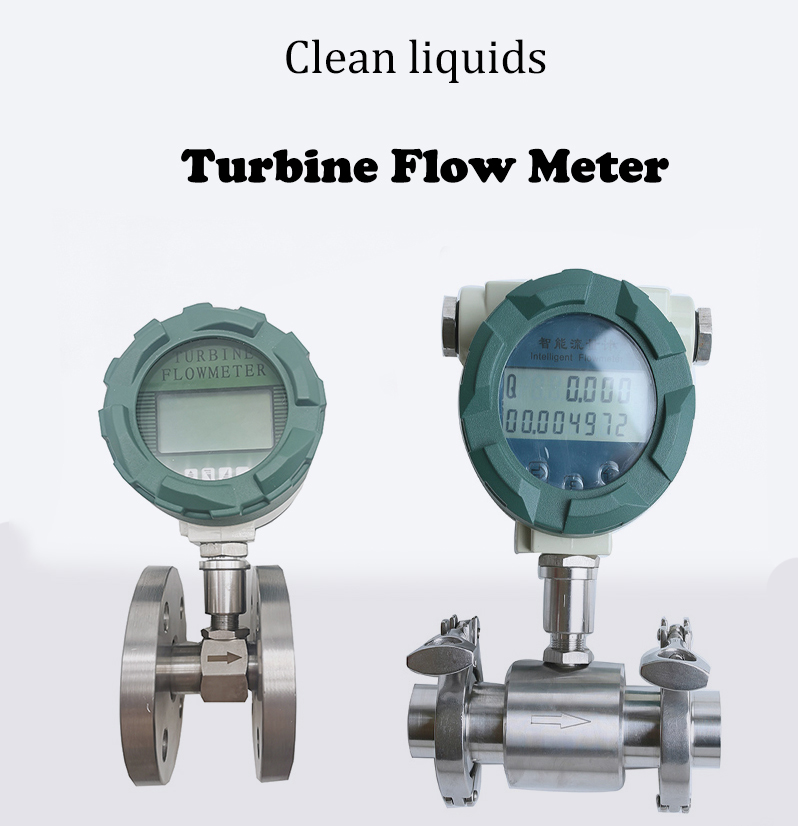

Turbine type flow meter is a velocity type flow meter which is widely used in petroleum, chemical industry, electric power, gas pipeline networks, etc.Turbine type flow meter is available for clean fluids , such as the clean water, clean oil etc .
What is the Turbine Type Flow Meter’s measuring principle?

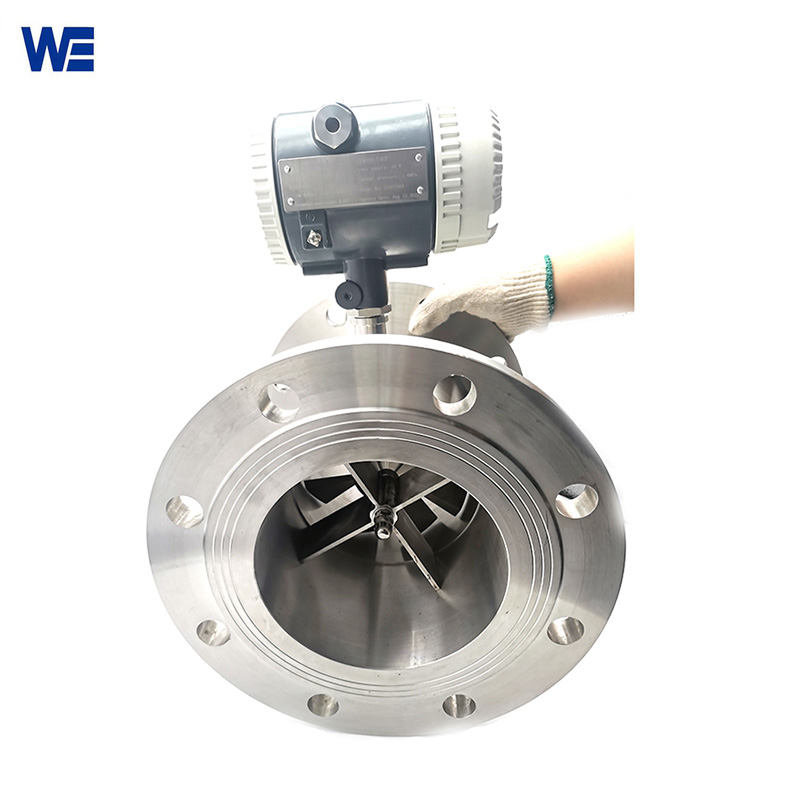

The fluid affects the turbine blades as it travels through the turbine, causing them to rotate. The angular velocity of the turbine blades therefore serves as an indirect indicator of the flow rate. The idea is that the fluid velocity and the blade’s angular velocity are proportionate.The rotational speed of the turbine is converted into electrical pulses using a magnetoelectric converter and displayed on a secondary instrument. The data displayed by the turbine type flow meter reflects the flow rate of the fluid. Turbine type flow meter is available for clean fluids , such as the water, clean oil etc .
What are the advantages of turbine type flowmeter?
-
- High precision, good repeatability, no zero drift, and high range ratio.
- The turbine flow meter has high-quality bearings and specially designed guide vanes, which greatly reduces wear.
- The pressure loss is small, and the impeller has anti-corrosion function,suitable for acid and alkali solutions.
- The accuracy of the correction formula is better than ±0.02%.
| Product Name | Turbine type flow meter |
| Measuring diameter | DN4-DN200 |
| Applicable media range | impurity-free, low viscosity, no strong corrosive liquid |
| Accuracy | 1% |

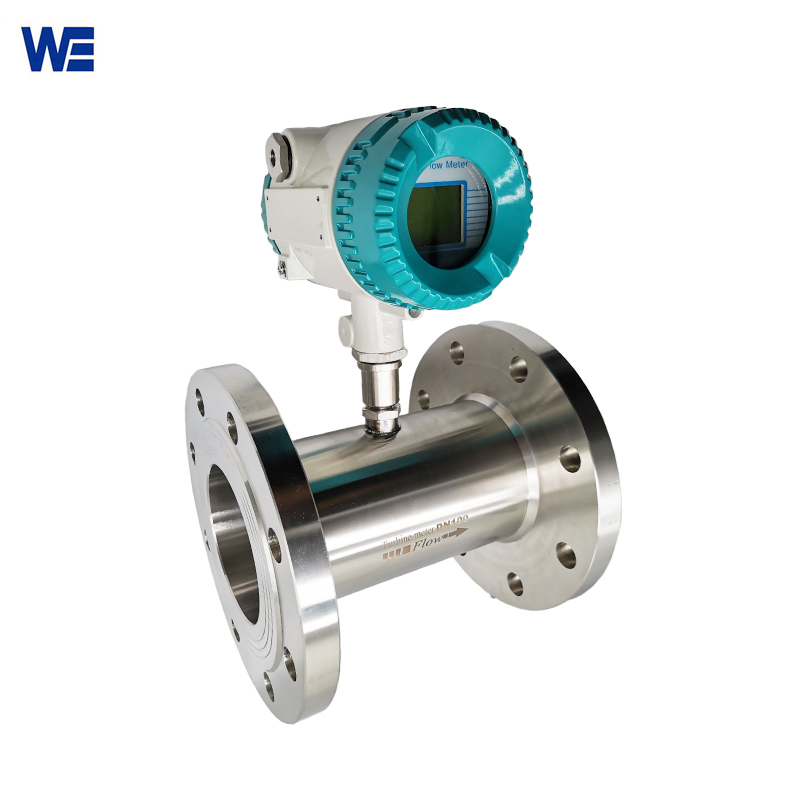

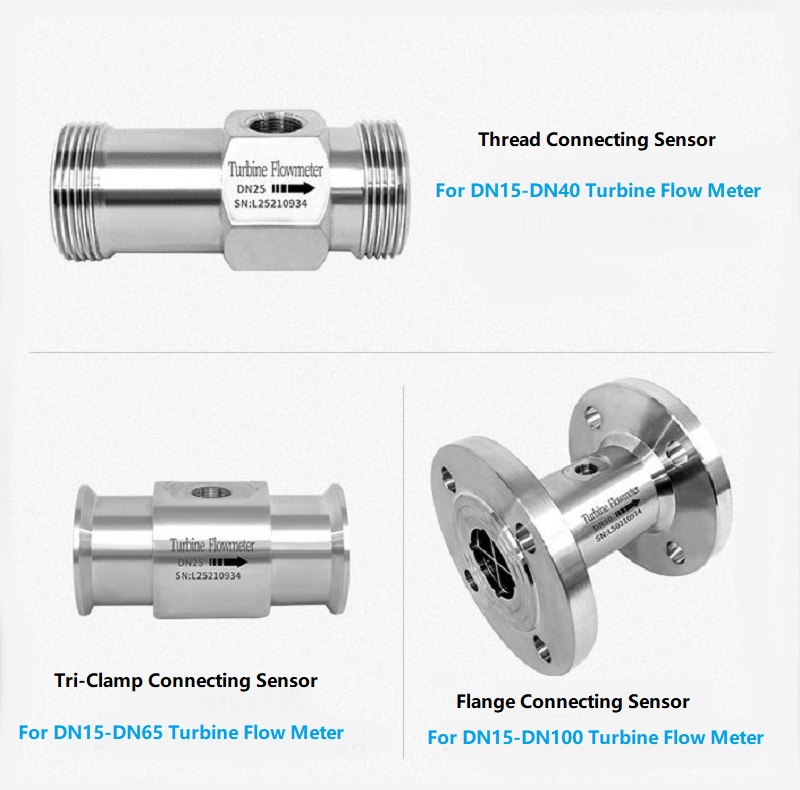

| Connection method | flange, thread, clamping |
| Medium temperature | -20°C~80°C |
| Nominal pressure | 1.6MPa,4.0MPa,6.3MPa,11MPa,15MPa,26MPa,42MPa |
| Precision class | 0.2, 0.5, 1.0, 2.5 |

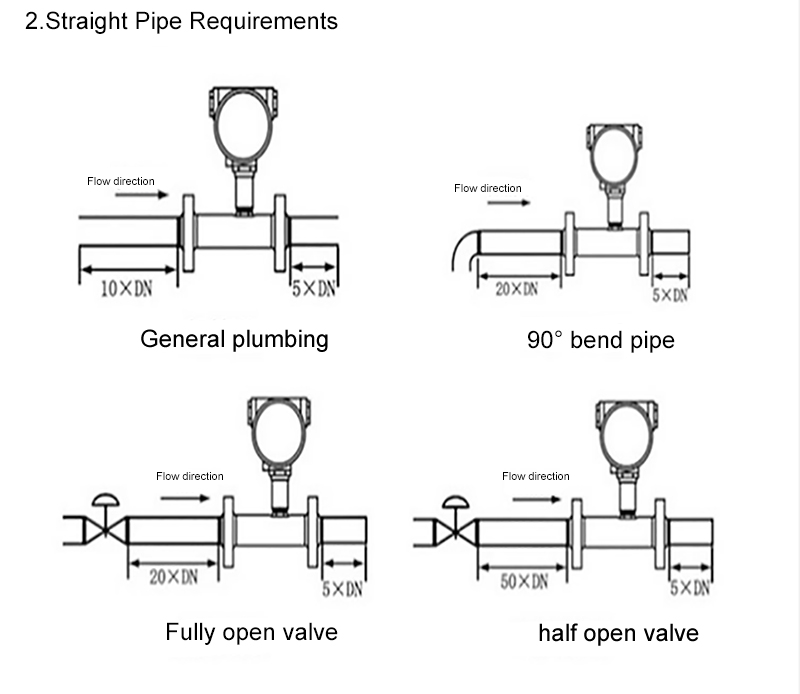

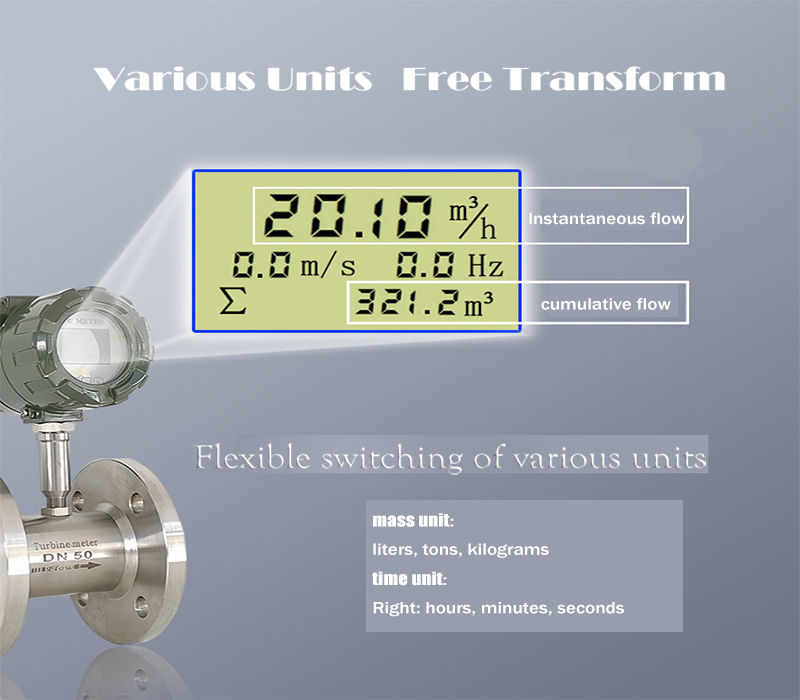

| Signal output | Pulse, 4-20Ma, RS485, HART |
| Power supply | DC24V Meter head display 3.6V or DC24V+3.6V |
| Ambient temperature | -20°C~60°C |
| Relative humidity | 5%~90% |
| Meter body material | 304, 316L stainless steel |
| Protection class | IP65 |
| Explosion-proof grade | ExdIICT6Gb |
| Impeller material | 2Cr13 impeller |
| Pressure resistance grade | Duplex steel impeller |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Starting flow rate (m³/h) | Maximum pressure loss (KPa) |
| DN4 | 0.04-0.25 | 0.04-0.4 | 0.02 | 120 |
| DN6 | 0.1-0.6 | 0.06-0.6 | 0.05 | 80 |
| DN10 | 0.2-1.2 | 0.15-1.5 | 0.07 | 50 |
| DN15 | 0.6-6 | 0.5-5 | 0.35 | 35 |
| DN20 | 0.8-8 | 0.45-9 | 0.3 | 35 |
| DN25 | 1-10 | 0.5-10 | 0.4 | 35 |
| DN32 | 1.5-15 | 0.8-15 | 0.6 | 35 |
| DN40 | 2-20 | 1-20 | 0.6 | 35 |
| DN50 | 4-40 | 2-40 | 1 | 35 |
| DN65 | 7-70 | 5-70 | 4 | 25 |
| DN80 | 10-100 | 7-100 | 5 | 25 |
| DN100 | 20-200 | 10-200 | 8 | 25 |
| DN125 | 25-250 | 13-250 | 10 | 25 |
| DN150 | 30-300 | 15-300 | 12 | 25 |
| DN200 | 80-800 | 40-800 | 20 | 25 |

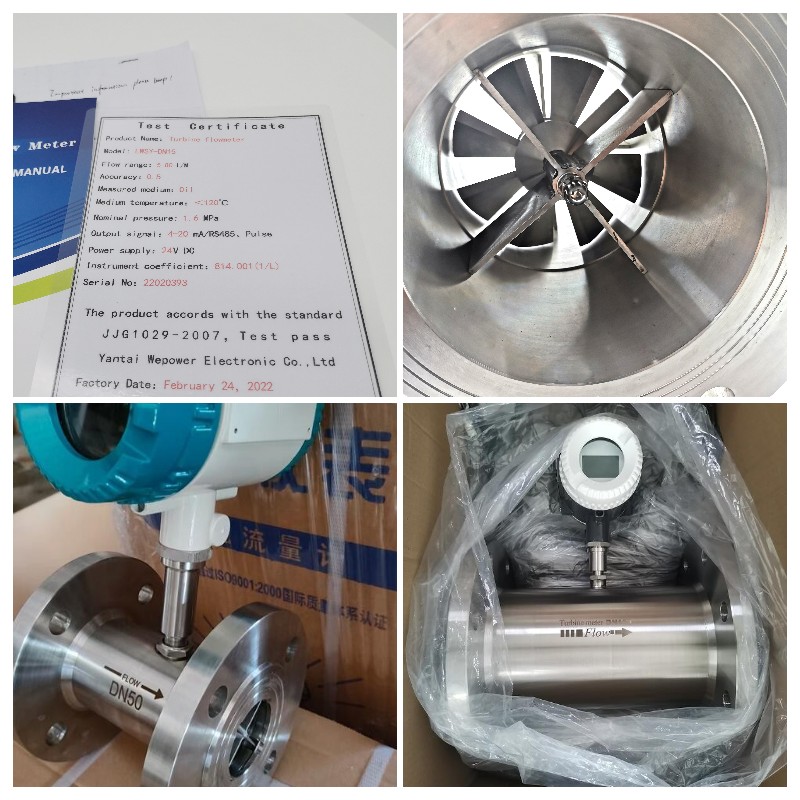

All our LWGY turbine flow meter 100% checked and calibrated before shipment to ensure the accuracy, you can ask us to provide you the factory testing report paper together with the turbine flow meter. On our website, you may find more precise instruments and are invited to purchase them.
