Tuning Fork Densitometer
Except offering the single density meter, we can also offer the pipeline type density meter set, we design and customize the adapter device for easy installation based on different site conditions.Contact us for the online efficient continuous denisty /concentration measurement !

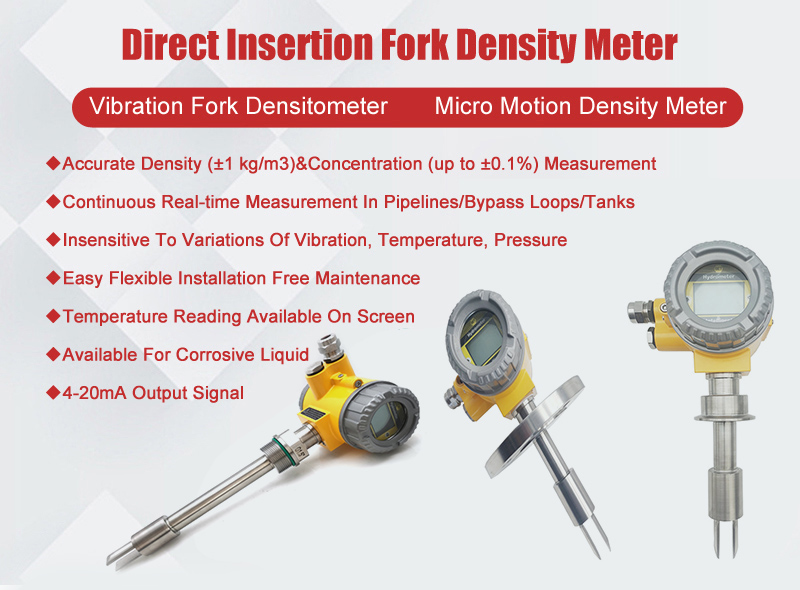

WPX301 tuning fork densitometer is also named micro motion density meter for continuous real-time liquid measurement in pipelines, bypasses and tanks. The compact structure is easy to transport and install , there is not moving parts, no maintenance, flexible and convenient installation, no debugging, small overall size, low on-site space requirements.
Except offering the single density meter , we can also offer the pipeline type density meter set,we design and customize the adapter device for easy installation based on different site conditions , this customized adapter can reduce the flow rate by increasing diameters of the pipelines to improve the measuing stability for tuning fork densitometers .
Above all , our pre-sales technicians will recommend and customize a tuning fork density meter and its matching pipeline device for site installation .
| Product name | Tuning Fork Densitometer |
| Measurement range | 0-2.5 g /cc (0-2500 kg/m3);，0~100.0% |
| Medium | Liquid;slurry , liquid mixture |
| Function | Test Density and Concentration online |
| Temperature range | -50 c ~+150 c |
| Accuracy | ±1-2kg/m3(± 0.002 g/cc ) |
| Max Working Pressure | 207bar (3000psi) |
| Medium Viscosity | 0-10000cp;Fluid viscosity range 0-2000cp |
| Power Supply | 24 V DC |
| Signal Output | 4 -20 mA，0-1000Hz，RS485 Modbus RTU |
| IP Grade | IP67 |
| Wetted Material | SS316/SS2205/Hastelloy C/ PTFE |
| Process Connecting | Flange (ANSI 150 ~1500 RF，DIN 50 PN16，DIN 50 PN40) /Tri- clamp /Thread |
| Disadvantage | not ideal for measuring crystallization and fouling media |
