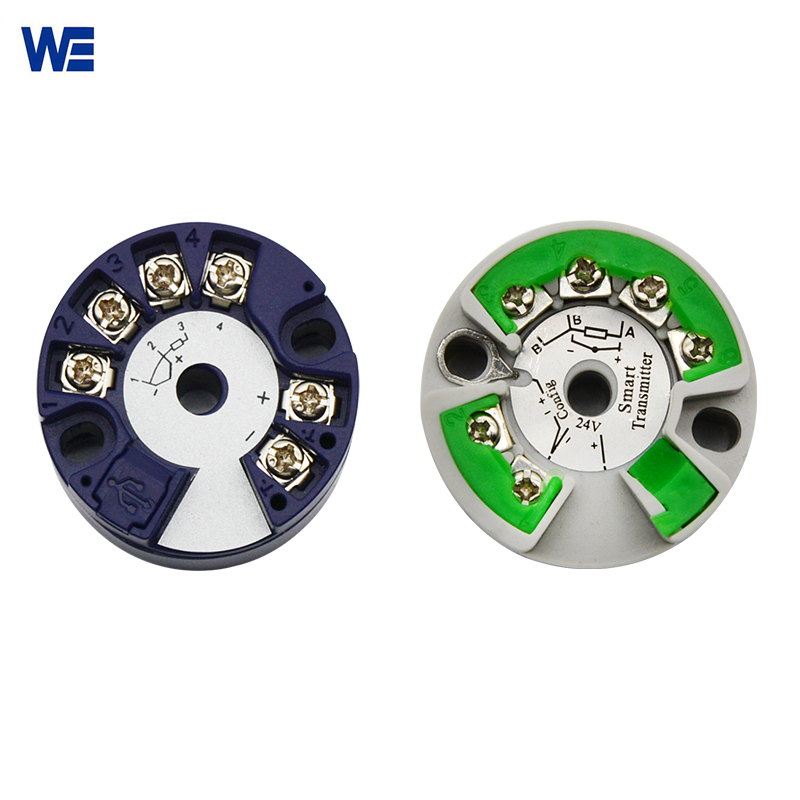

Temperature Transmitter Module HART
Temperature Transmitter Module HART supports multiple signal inputs such as thermal resistors, thermocouples and voltages. The parameter setting is flexible and convenient.
Features Of Temperature Transmitter Module HART:
Temperature Transmitter Module HART supports multiple signal inputs such as thermal resistors, thermocouples and voltages. The temperature transmitter module HART can be freely configured using PAD or PC. The parameter setting is flexible and convenient. It automatically adjusts the input signal type, measurement range and thermocouple cold end compensation. It has optional HART communication function. The temperature transmitter module HART has the characteristics of high accuracy, low temperature drift, long life, easy replacement, flexible installation and operation, and strong anti-interference ability.
Application:
โฒHigh temperature furnace
โฒFood industry
โฒProcess industry
โฒMachine building and plant construction
โฒConstruction industry
โฒNew energy industry
โฒShipbuilding industry
Parameters:
| Model Name | Temperature Transmitter Module HART |
| Accuracy | โค0.2%FS |
| Power supply | DC 12-35V |
| Input signal * | RTD (PT100, PT1000), thermocouple (E/K/S/B/T/J/N/R) |
| Output signal | 4-20mA |
| Transmission mode | 2-wire |
| Load resistance | 0~600ฮฉ (DC 24V), rated load 250ฮฉ |
| Temperature influence | โค0.05/1โ |
| Mechanical vibration | fโค55Hz, amplitude๏ผ0.15mm |
| Working environment | Temperature: -25~+80โ, humidity: 5%~95%RH |
| Settable parameter | Input signal, measuring range, cold junction compensation (automatic adjusting) |
| Configuration | PAD or PC |
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850โ | 10K | 3-wire |
| Cu50 | -50~+150โ | 10K | 3-wire |
| B | 400~+1820โ | 500K | 2-wire |
| E | -100~+1000โ | 50K | 2-wire |
| J | -100~+1200โ | 50K | 2-wire |
| K | -180~+1372โ | 50K | 2-wire |
| N | -180~+1300โ | 50K | 2-wire |
| R | -50~+1760โ | 500K | 2-wire |
| S | -500~+1760โ | 500K | 2-wire |
| T | -200~+400โ | 50K | 2-wire |
| Resistance transmitter | 0~4500ฮฉ | 10ฮฉ | 2-wire |

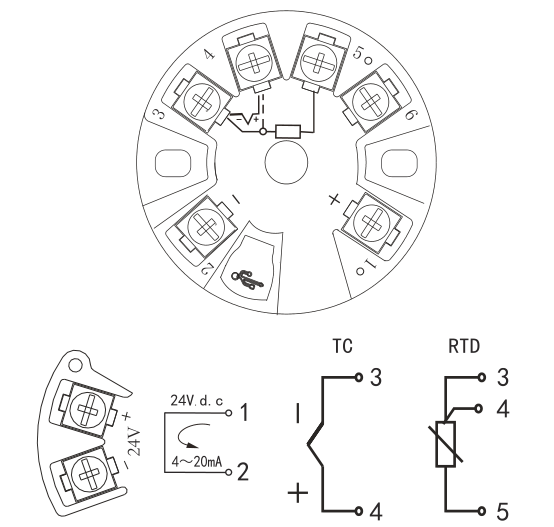

Structure Diagram:
