Temperature Transmitter Module
Temperature transmitter modules are essential components in temperature measurement and control systems.
A crucial part of the system for measuring and controlling temperature is the Temperature Transmitter Module. The sensor’s temperature reading is transformed into an electrical signal by the temperature transmitter module so that the system can easily measure and interpret it. And when installed, the temperature transmitter module can be set very easily, quickly and at a glance.
Applications Of Temperature Transmitter Module:
- Process industry
- Machine building and plant construction
- Construction industry
- New energy industry
- Shipbuilding industry
Parameters:
| Model | Temperature Transmitter Module |
| Accuracy | 0.5%FS, 0.2%FS , |
| Power supply | DC 12-40V |
| Input signal | RTD (PT100, Cu50), thermocouple (B/E/J/K/N/R/S/T), resistance, voltage (Mv) |
| Output signal * | 4-20Ma, 1-5V |
| Digital communication * | Hart protocol (optional) |
| Response time | ≤1s |
| Working temperature | -40~+85℃; humidity: 5%~95%RH |
| Settable parameter | Input signal, measuring range, cold junction compensation (automatic adjusting) |
| Configuration | PAD or PC |
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |

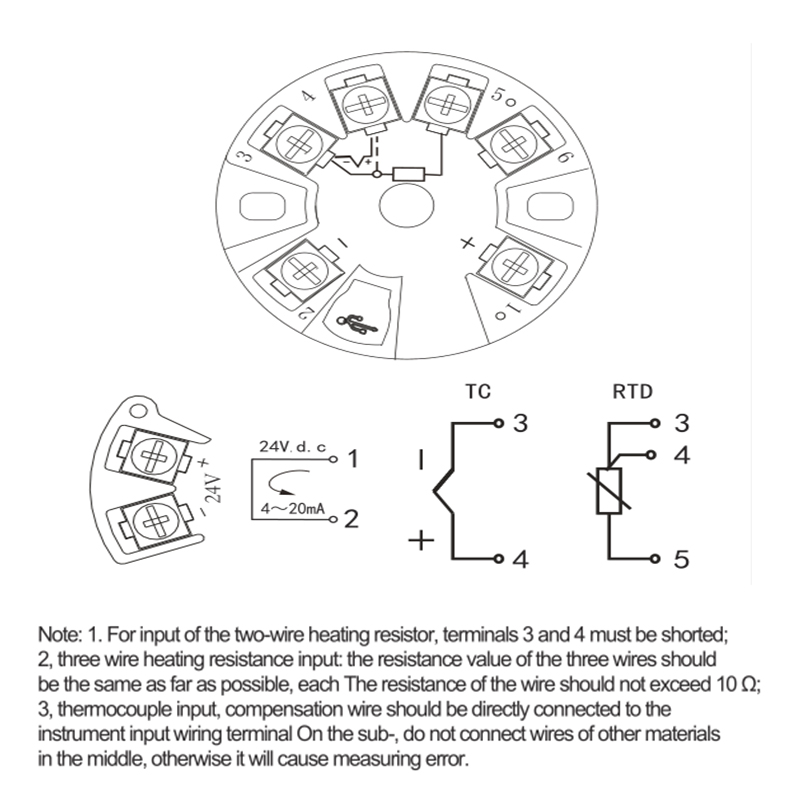

Installation Guidance:
