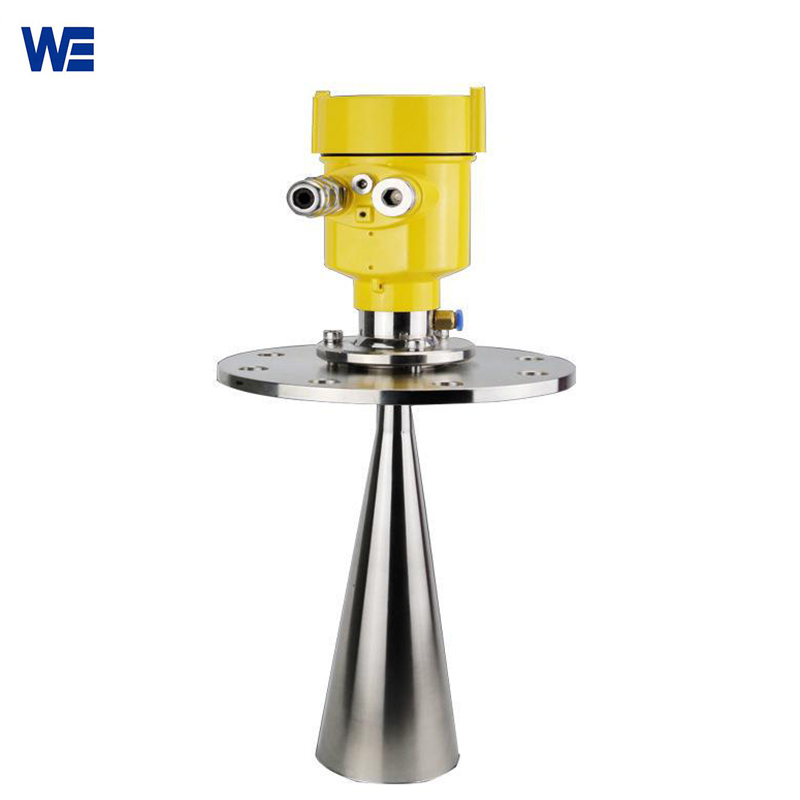

Tank Radar Level Transmitter
Level Measurement Radar Transmitter adopt advanced 26G non-contact radar measurement technology, which can accurately identify the time interval between the transmitted pulse and the received pulse, so as to further calculate the distance from the antenna to the surface of the measured medium.
Tank Radar Level Transmitter can can be used in hygienic applications for non-contact level measurement, tank radar level transmitter consists of protection aluminum housing head with LCD display with optional display mode indictaes the echo signal return curve , waterproof connectors, SS316 antenna with PTFE inner shields for corrosive medium , this model also called flat antenna radar level transmitter .
The non-contact liquid radar level transmitter is intended for hygienic liquid storage or corrosive liquid tanks containers , the pointed PTFE antenna can help the drops of dew and steam slides down , this scientific antenna design is good for the liquid measuring occasions with dew and steams .
| Model | WERD806 |
| Medium Features | Hygienic Liquid Storage，corrosive container |
| Shipping weight | 3.5kgs |
| Measuring range * | 0-30m |
| Accuracy | ±3mm |
| Resolution | 1mm |
| Display | LCD display |
| Measured interval | 1s (according to parameter setting) |
| Adjustment time | 1s (according to parameter setting) |
| Microwave frequency | 26GHz |
| Output signal * | 4-20mA (can be connected with HART), RS485/232 |
| Power supply * | DC 6-24V, AC 220V/50Hz |
| Material | Shell: aluminum; Antenna : SS316 with inner PTFE |
| Pressure | Maximum 4MPa |
| Shock resistance | 10m/s2, (10~150)Hz |
| Communication protocol | Modbus |
| Storage temperature | -40~+100℃ (-40~+212℉) |
| Process connection (antenna) temperature | -40~+150℃ (-40~+302℉) |
| Protection class | IP67 |
| Electrical connection | 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2″ NPT |

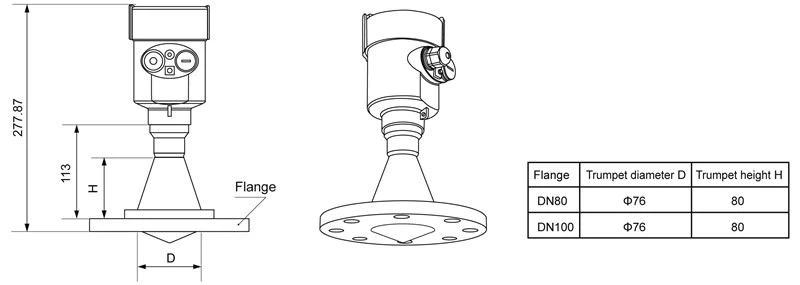

| Installation * | G1-1/2″A thread, vertical bracket, flange |
| Warranty | 12 months |
Are you a manufacturer or a trading company?
We are manufacturer. Welcome to visit our factory any time.
What’s the payment term?
T/T, MasterCard, VISA, Western Union etc .
How about the delivery time ?
2-3 days for standard models. For big orders, it takes about 10-15 days.
What is the standard of package?
Export standard package or special package according to customers’ request.
How about the Warranty Time ?
12 months after customer receive the instrument .
