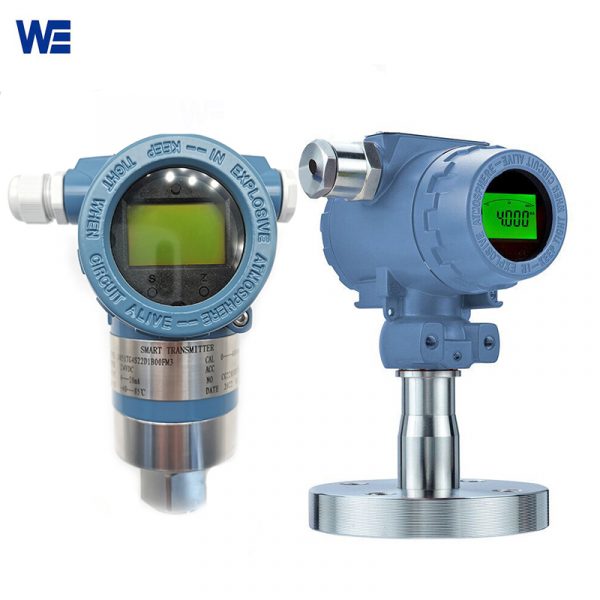

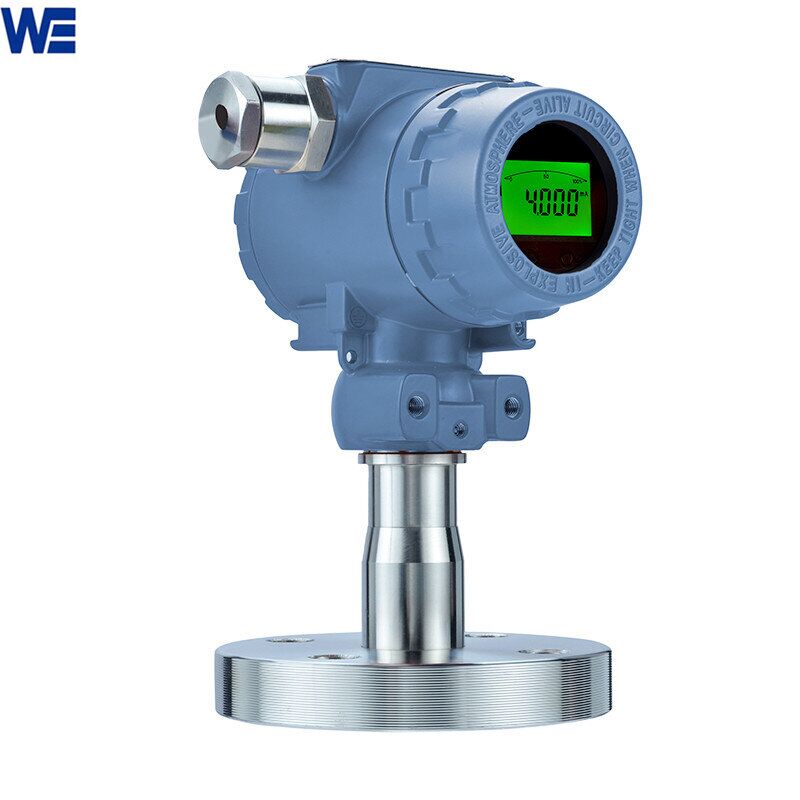

Tank Pressure Transmitter
WE3051TG Tank Pressure Transmitter is a field instrument that accepts a pressure variable and converts the pressure change into a standard output signal according to a certain proportion after sensing conversion.
The Tank Pressure Transmitter is a field instrument that accepts a pressure variable and converts the pressure change into a standard output signal according to a certain proportion after sensing conversion.This kind direct mount pressure transmitter ,thread mounted and diaphragm flange mounted are mostly applied at site, can be installed for the the industrial storage tank and various pipelines . Pressure measurment for tanks and pipes play a vital role in the industrial field, tank pressure transmitter mainly used to measure and convert pressure signal to standard electrical signal output, for process control, pressure monitoring, energy efficiency management, data acquisition and other applications.
The site can be equipped with a HART communicator. Through the communicator, you can check and set the zero point and range of the pressure transmitter, the temperature of the transmitter working point, and the selection of engineering pressure units, such as Pa, Bar and other working conditions, such as If the zero point or range of a certain pressure point needs to be changed, it can be easily changed by using the communicator in the power room. If you are in need of the HART communicator, contact us please.
| Description of goods | Intelligent Pressure Transmitter – 3051TG |
| Application | Gauge pressure |
| Medium | Liquid, Gas or Vapor |
| Measuring range（MPa） | 0-41MPa |
| Display | LCD 5 Digits programmable & 0-100% Bargraph |
| Dump adjusting | Constant of time 0 – 32 seconds |
| Response Time | 100 mS |
| Mounting | Direct installation or bracket on 2″ Pipe |
| Load | ohm=(Vdc-9)*50 |
| Keypad | 3 internal keys for programming and output setting |
| Power Supply | 9 ~ 36 VDC |
| Humidity Limit | 0 to 100% Relative Humidity |
| Dimensions | 102 mm ( W ) * 160 mm ( H ) * 130 mm ( D ) |
| Weight | 1.3 Kg |
| Turndown ratio | 100:1 |
| Accuracy | ±0.1% |
| Stability | ±0.2% URL for 2 years |
| Output | 4-20mA DC/HART protocol |
| Connection | SUS304/SUS316 |
| Diaphragm Material | Stainless Steel 316L, Hastelloy C |
| Cable Entry | M20 Conduit Threads / 1/2″NPT (Female) |
| Housing | Low copper cast aluminum alloy with polyurethane, light blue paint |
| Working temperature | -25 to 95°C |
| Media temperature | -40-120℃ |
| Process connection | M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M), etc |
| Over Pressure Limit | 120% of full scale |
| Sensor type | Metal capacitive sensor, Silicon sensor |
| Protection class | IP65 |
