Solid Level Switch

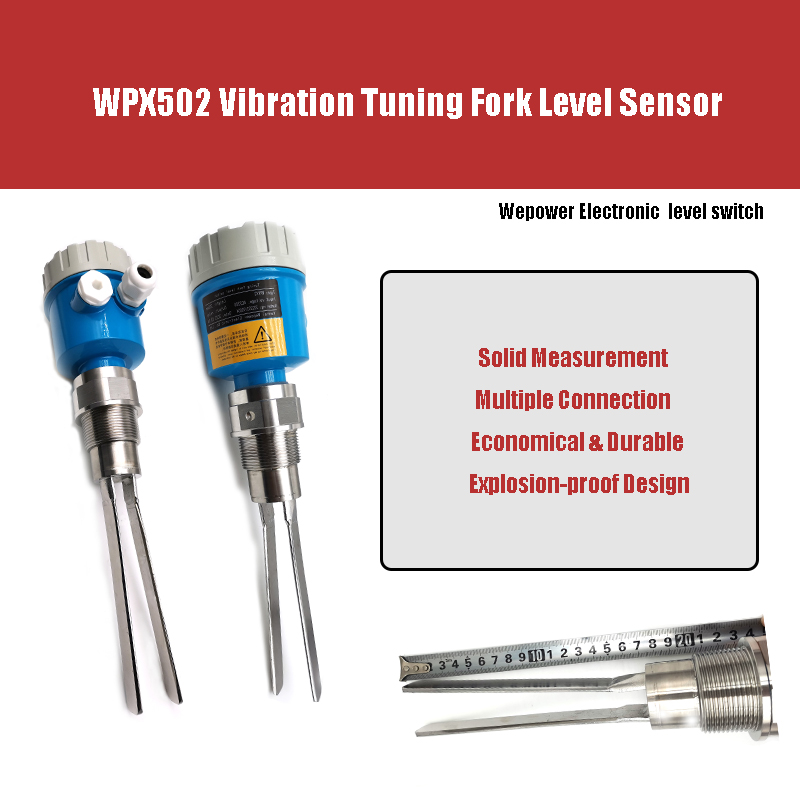

Features And Application Of WPX 502 Solid Level Switch:

The Solid Level Switch is a signal receiving and outputting device, which works through damping and piezoelectric effect. The WPX502 Solid level switch, which is suitable for a variety of fragmented and granular solids, can be utilized in a wide range of operating situations to detect, control, and warn the high and low levels of the vessel.

Solid Level Switches are unique and advantageous, and they are widely utilized in food processing, chemical plastics, medicines, feed, and other industrial industries. When the liquid level reaches the limit level, the WPX502 level switch may react rapidly, giving a clear indicator and shutting off the working button in less than three seconds. The level switch’s vibrating fork is made of stainless steel 304 or 316, which is strong, rust-free, and produces a good effect vibration sensation.

What Is The Standout Of The Solid Level Switch?

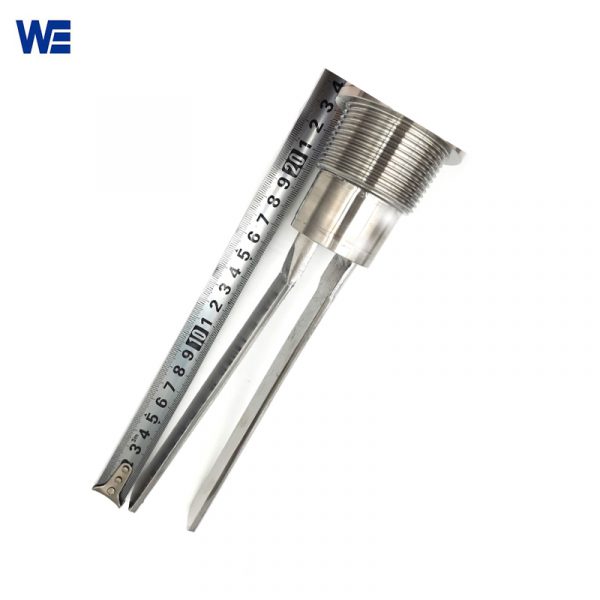

The WPX502 Solid Level Switch’s tuning fork size differs from the standard fork. Compared to a typical tuning fork switch, the solid level switch’s fork probe is larger, and the gap between the fork is broader. The fork probe of the WPX502 solid vibrating level switch can be 200mm long.

This design can prevent grains, fine aggregates and heavy powders from being clamped on the vibrating Fork, which not only improves the measurement accuracy but also improves the measurement efficiency. Of course, the large tuning fork solid level switch cannot meet some special situations, in some cases where flange mounting is required, users need to consider a smaller-sized tuning fork.
