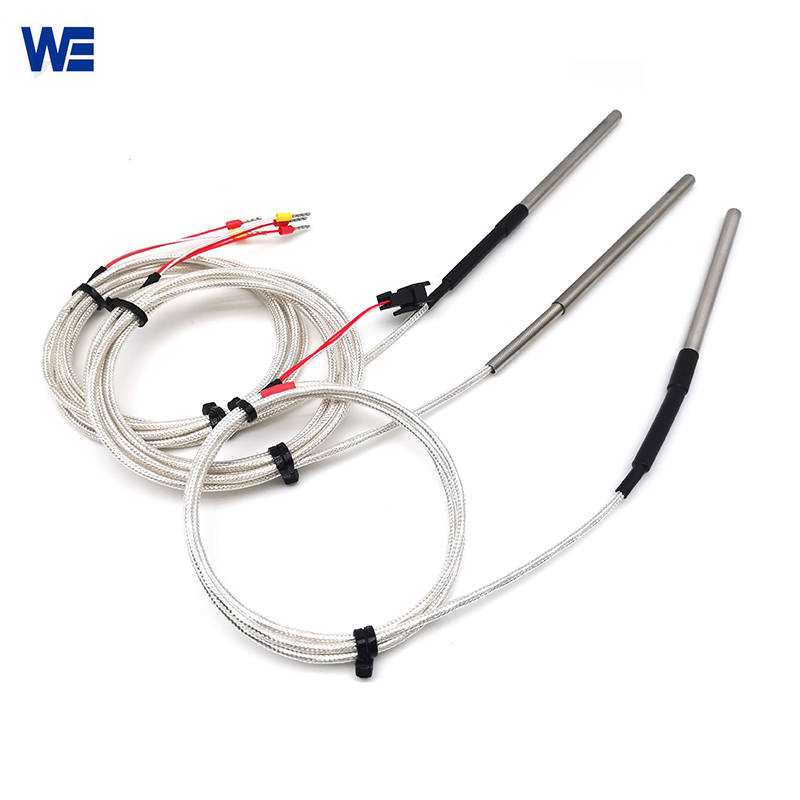

Rtd Temperature Sensor Probe
The PT100 and PT1000 thermal resistors are the most widely used types. The benefits of the RTD Pt100 temperature sensor probe include a broad measuring range, good measurement accuracy, a steady display, and a sizable output signal. You have the option to select from a variety of connections, stainless steel probe, and sheathed PTFE lead wire.
The resistance of the thermal resistance varies with temperature, as the name implies. Thermal resistance is the most commonly used temperature detector in the medium and low temperature areas. The platinum thermal resistance measurement degree is the highest of them all. In industrial temperature measurement, it is commonly utilized.
Features Of RTD Temperature Sensor Probe:
PT100 thermal resistance probe(RTD Temperature Sensor Probe) has high applicability and salient features: no compensation wire needed, cost saving, rtd temperature sensor probe has high measurement accuracy, no drift; high mechanical strength, good pressure resistance; rtd temperature sensor probe adopt imported thin film resistance elements, reliable and stable performance.
▲Quick Response
▲Long-lasting Heat Resistance
▲Millisecond Response
▲Small Temperature Drift
▲Lead Length Can Be Customized On Demand
Parameters:
| Name | RTD temperature sensor probe |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm.4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005ltl） |
