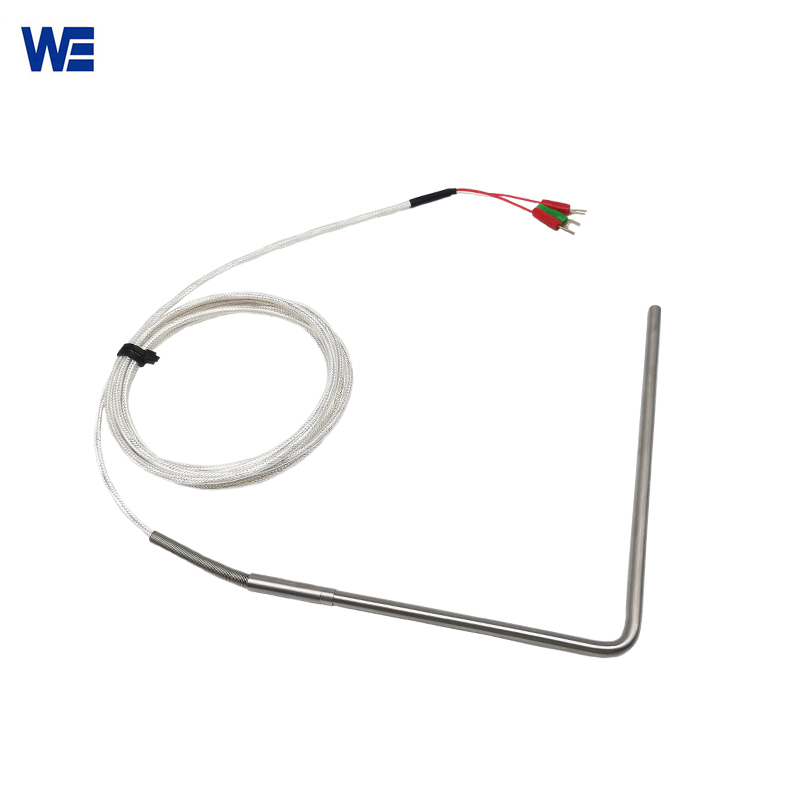

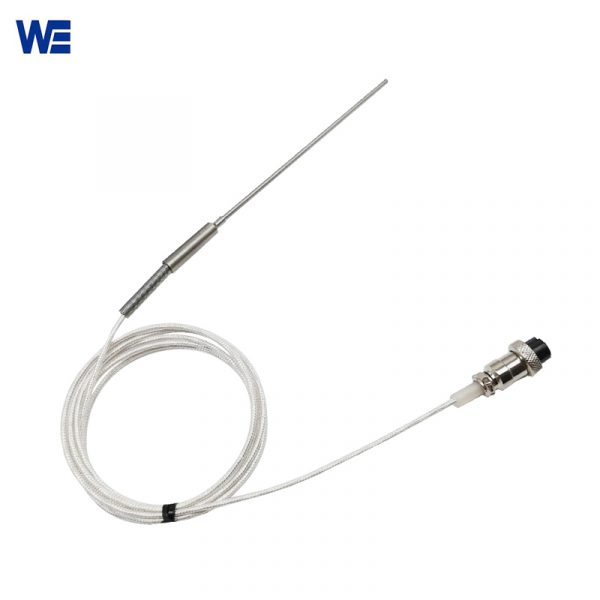

Rtd Sensor Probe
Rtd sensor probe has the advantages of large output signal, rapid response, high measurement accuracy and wide measurement range. The most commonly used platinum resistance is PT100 and PT1000. Sheathed PTFE lead wire, stainless steel probe, various connectors are available for you to choose, and the lead length can be customized as needed.
Features And Advantages Of RTD Sensor Probe:
The temperature sensing elements PT100 and PT1000, which use metal platinum (PT) as the temperature sensing material, are the most widely used thermal resistors. RTD sensor probes are typically utilized with electronic computers, recording devices, displays, etc. In a variety of production processes, the RTD PT100 probe sensor measures the surface temperatures of liquid, steam, and gas medium as well as solid surfaces directly within the -200°C-500°C range. RTD sensor probes are commonly utilized in environments with higher requirements for electronics, machines, and laboratories. Large output signal, steady display, excellent measurement accuracy, and broad measuring range are some benefits of the RTD sensor probe.
▲Short thermal response time, reducing dynamic errors;
▲High measurement accuracy; no need compensation wire;
▲High-precision chip, reliable and stable performance;
▲Smaller in diameter than assembled thermal resistance, easy to bend, better shock resistance;
▲Lead wire length can be customized, Corrosion resistance, high temperature resistance.
Parameters:
| Name | RTD sensor probe |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm.4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005ltl） |
