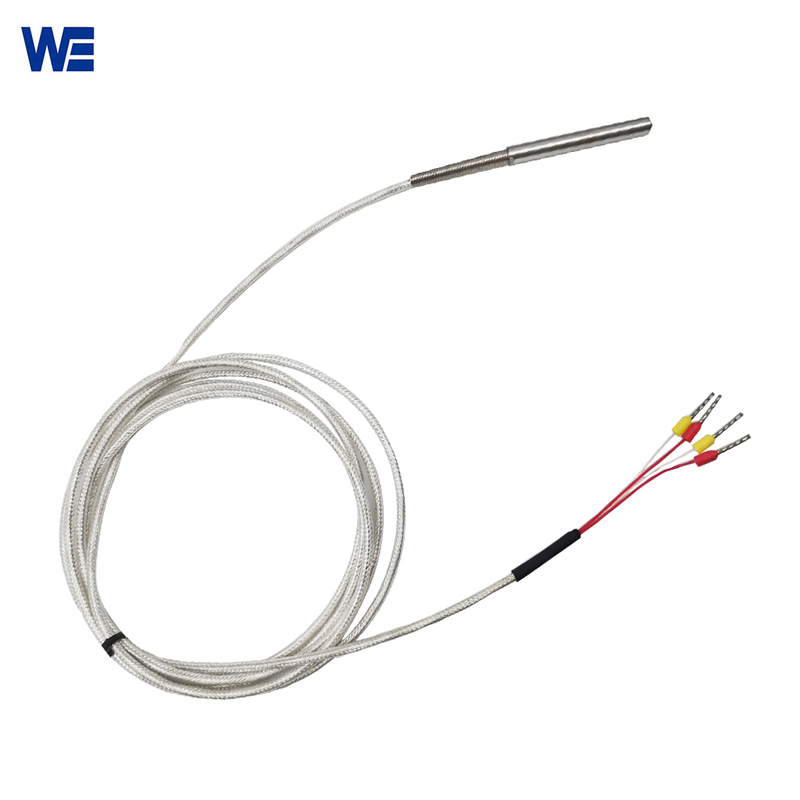

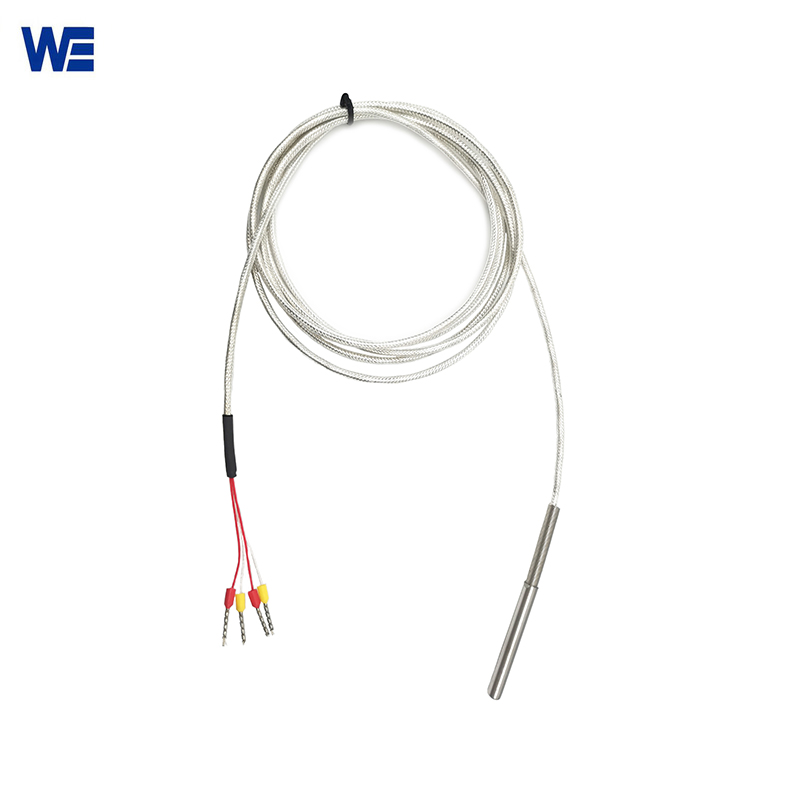

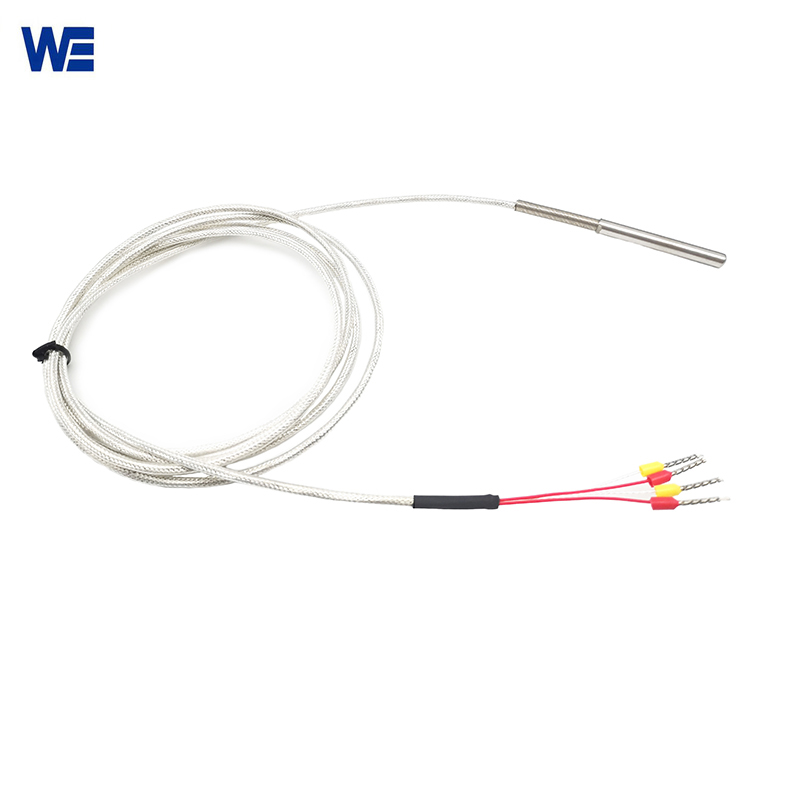

Rtd Pt100 Sensor 4-Wire
The majority of RTD PT100 probe sensors are three-wire models, but we also provide four-wire models, which offer superior accuracy and performance. Wepower Electronic refuses to cut corners and choose real materials.
Why Choose Wepower Electronic?
The majority of RTD PT100 Sensors are three-wire models, but we also provide four-wire models, which offer superior accuracy and performance. Fine connections, a robust stainless steel probe, premium encased Teflon lead wire, and meticulous attention to detail are all features of our temperature sensors. Furthermore, narrow and compact spaces can benefit from the usage of small dimensions for temperature process management.
Our RTD PT100 Sensor 4-wire all independently produced by ourselves for almost 20 years , various lead wire , stainless steel probe ,sheathed wire , connector for your choice. We refuse to cut corners and choose real materials. Maybe our prices are not cheap, but we ensure that every part of the product is refined to ensure service and product quality.
Undoubted Choice:
- Quick Response
- Long-lasting Heat Resistance
- Millisecond Response
- Small Temperature Drift
- Lead Length Can Be Customized On Demand
Parameters:
| Name | RTD PT100 sensor 4-wire |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm.4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005ltl） |
