Rtd Probes Pt100
The rtd pt100 temperature sensor probe contains a resistor whose resistance value changes with temperature, the resistor is made of high purity platinum and has a resistance of 100 ohms at 0°C, hence the name PT100.
Advantages And Applications Of RTD Probes PT100:

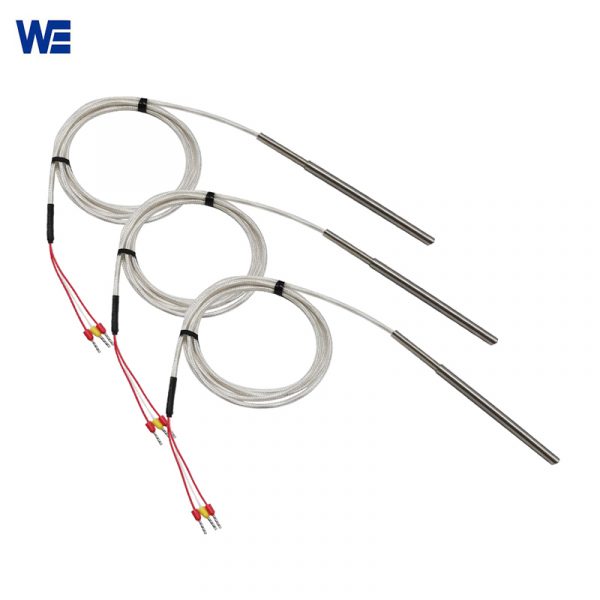

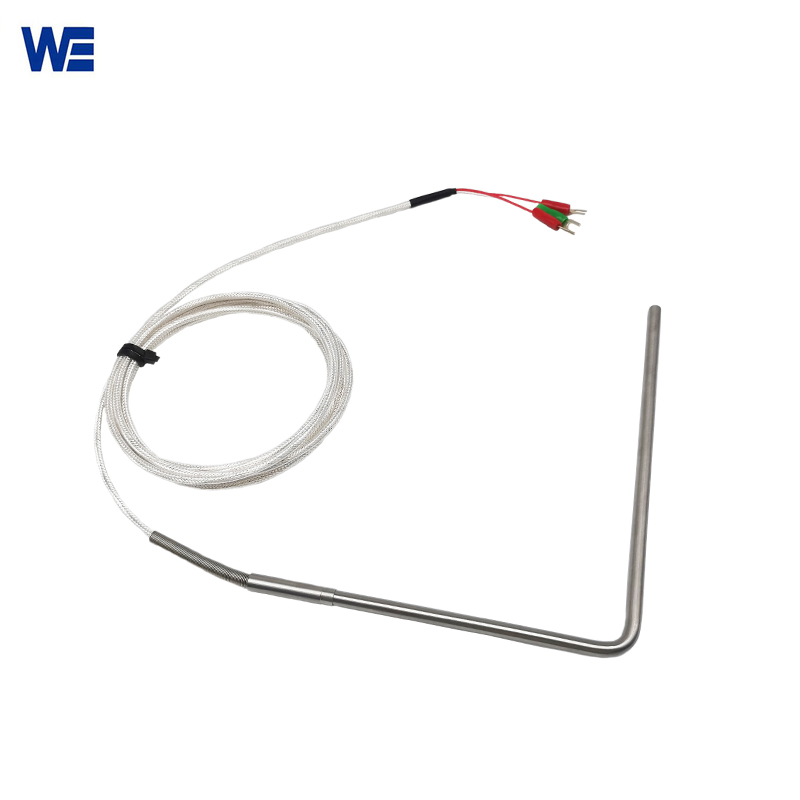

Platinum RTD Probes PT100 with connecting lead wire cable and protection sheath stainless steel probes. RTD PT100 probes are wide measurement range and high accuracy performance , widely used in many industrial fields , and this kind temperature rtd probes are easy to install due to various and flexible connecting fittings , extension lagging lead wires can be customized too.
RTD Probes PT100 are widely used in science and industry. Applications include temperature measurements Kiln, gas turbine exhaust, diesel engine and other industrial processes. RTD Probes PT100 are also used Home, office and business as temperature sensors in thermostats and flame sensors in safety Equipment for main equipment of natural gas power plant.
Parameters:
| Name | RTD probe PT100 |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm.4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005ltl） |
