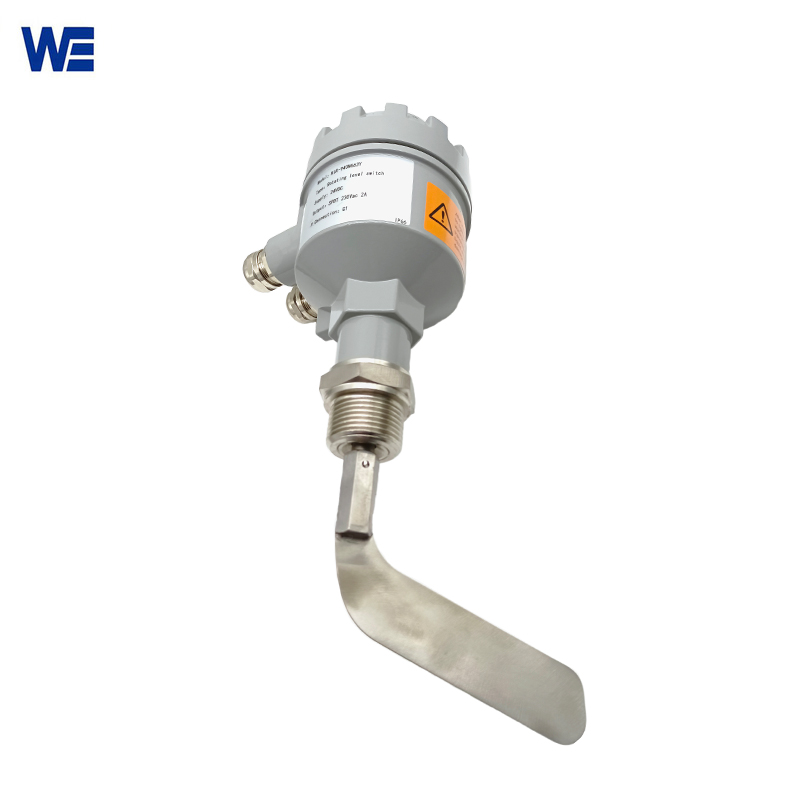

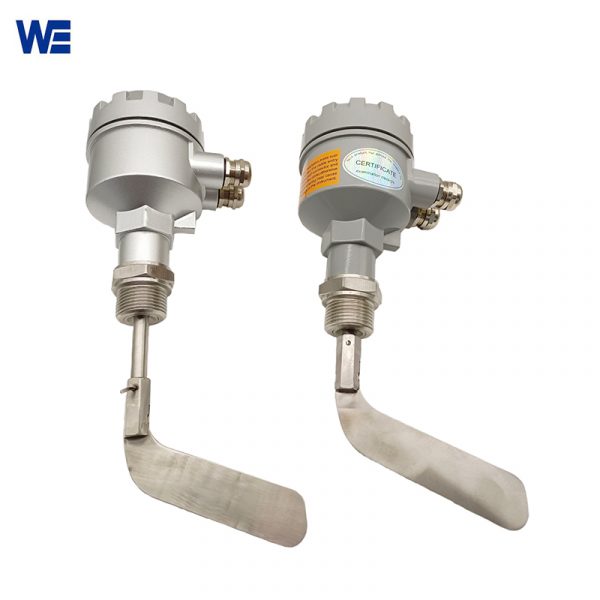

Rotating Paddle Level Sensor
Wepower Electronic rotating paddle level sensor is a solid level switch with cost-effectiveness, simple operation and accurate measurement. We welcome everyone to browse our website and contact us anytime!
Features Of Rotating Paddle Level Sensor:

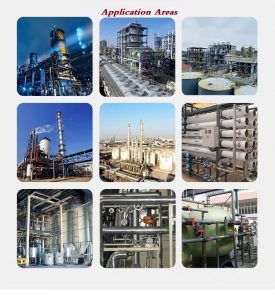

The Rotating Paddle Level Sensor is a control device that works continuously for 24 hours. Its main function is to detect the liquid level in a tank or barrel. The rotating paddle level sensor is a device that integrates an alarm and a switch. The WZP20 rotating paddle level sensor is widely used in industries such as beans and nuts processing plants and fertilizer plants.
Wepower Electronic Rotating Paddle Level Sensor uses a special oil seal design that may guard against material under test debris entering and act as a barrier. Users can attach rainproof covers for the WZP20 Rotating Level Switch in accordance with their demands, and it can be mounted both indoors and outdoors. There are several standards available for rotary level sensor blades. Use of the tiny blade type is advised by Wepower Electronic for ores with a high specific gravity.
| Product name | Rotating paddle level sensor |
| Power supply | 220VAC/24VDC/110VAC |
| Power consumption | 4W |
| Contact capacity | SPDT 5A/250VAC |
| Blade speed | 1RPM |
| Voltage withstand | AC 1500V×1minute |
| Measuring torque | 1.0 N·m |
| Explosion-proof | Ex d Ⅱ C T6 Gb |
| Applicable specific gravity | 0.5g/cm3 or more |
| Operating temperature | -20～80℃/high temperature type -20～400℃ |
| Model Selection | |||||||
| WZP20 | Rotary Level Switch | ||||||
|
|
CODE | Model | |||||
| 0 | Thread type | ||||||
| 1 | Flange type | ||||||

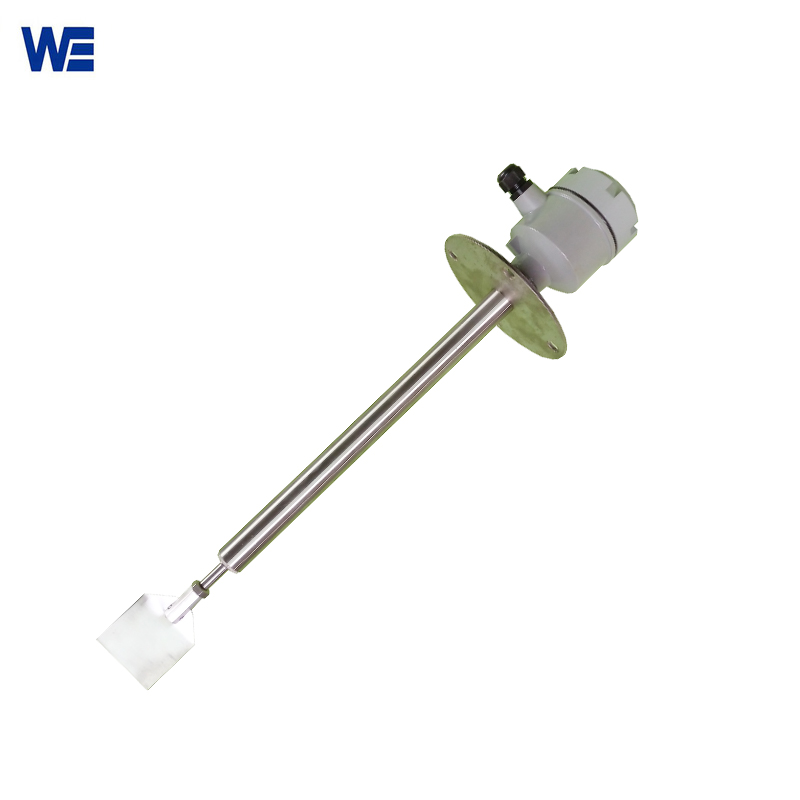

| 2 | Protection tube type(thread/flange) | ||||||
| 3 | Length adjustable type(thread/flange) | ||||||
| 4 | High temperature type(thread/flange) | ||||||
| 5 | High temperature length adjustable type(thread/flange) | ||||||
| 6 | High temperature protection tube type(thread/flange) | ||||||

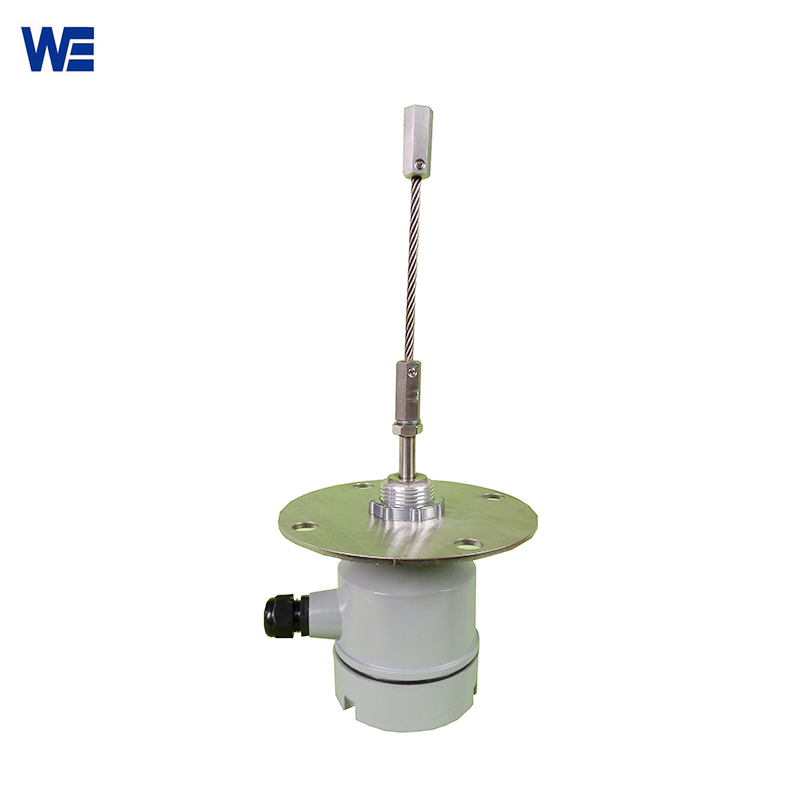

| 7 | Cable type(thread/flange) | ||||||
| CODE | Power supply | ||||||
| A | 220VAC | ||||||
| B | 24VDC | ||||||
| C | 110VAC | ||||||
| CODE | Connection | ||||||
| D | Thread | ||||||
| E | Flange | ||||||
| F | Others | ||||||
| CODE | Blade | ||||||
| A1 | 100×30(WxH) | ||||||
| B1 | 65×80(WxH) | ||||||
| C1 | 65×120(WxH) | ||||||
| D1 | 80×80(WxH) | ||||||
| E1 | 50×30(WxH) | ||||||
| F1 | Sickle shape | ||||||
| CODE | Output | ||||||
| G | Relay SPTD | ||||||
| CODE | Material | ||||||
| H | SS201 | ||||||
| I | SS304 | ||||||
| J | SS316 | ||||||
| WZP20 | 0 | A | D(G1”) | A1 | G | H | (Example ) |
To see the comparison of different RPM of Rotary paddle switch, please click on the picture.
