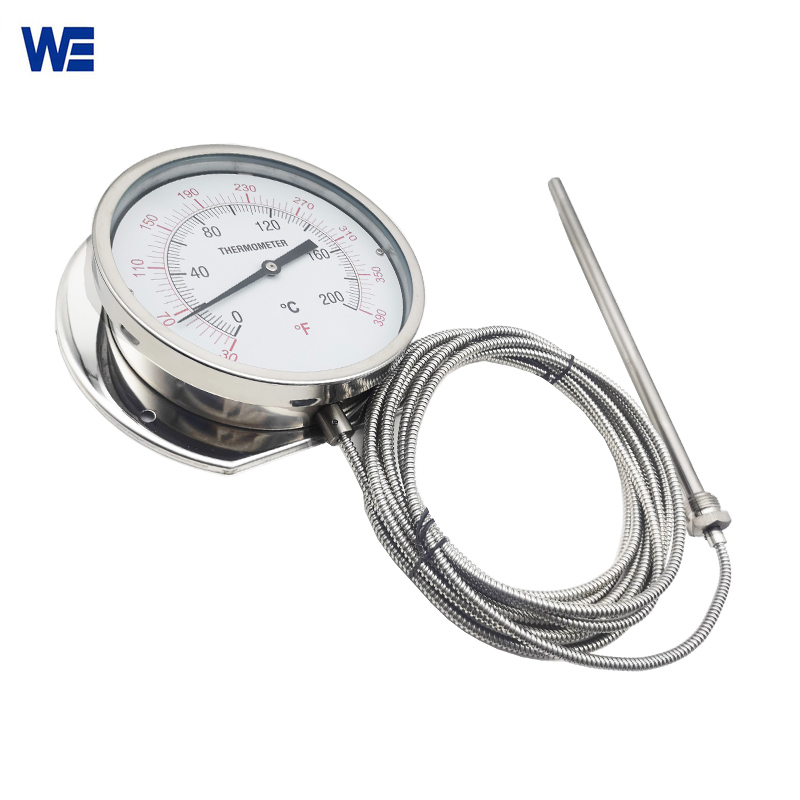

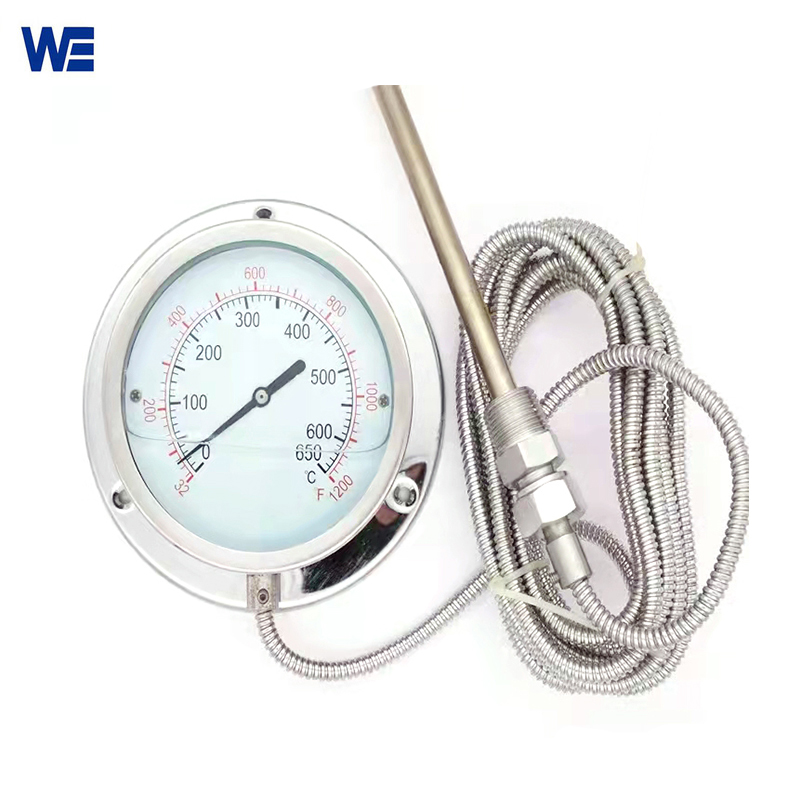

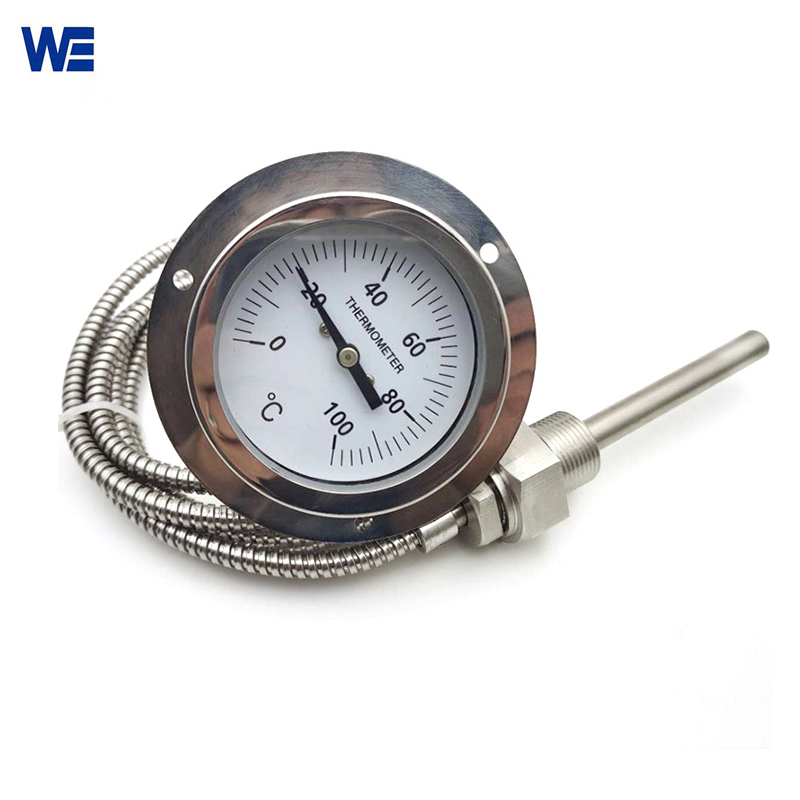

Remote Expansion Thermometer
Remote expansion thermometer is used for temperature measurement in hard-to-reach places and over long distances.
Remote Expansion Thermometer is a device that measures temperature and sends the data to a display unit located in a different area. The temperature is measured by the expansion of the thermometric liquid inside the capillary, and you can monitor the temperature without being close to the device.
Click Here To See The Product Video: Remote Expansion Thermometer
Working Principle Of Remote Expansion Thermometer:
The Remote Expansion Thermometer is composed of a metal component (i.e. a filled temperature sensing system) consisting of a temperature bulb filled with temperature sensing medium, a pressure transmission element (capillary tube) and a pressure sensitive element (spring tube). The temperature bulb contains a gas, liquid, evaporating liquid, etc. as the temperature-sensing medium.
The temperature bulb is inserted into the medium to be tested in order to measure the temperature. The temperature rise causes the working medium in the temperature bulb to expand, which raises the pressure. With the aid of gears, levers, and other transmission mechanisms, the pointer rotates to display the relevant temperature when the pressure change is sent to the spring tube via the capillary tube and causes it to flex somewhat.
Parameters:
| Product Name | Remote Expansion Thermometer |
| Temperature Range | -30…+60,0….100,0…120,0…160,0…200,0…300,
0…350,0…400,0..500,0…600 |
| Material | stainless steel 304/316 |
| Accuracy | 1.5% of range |
| Diameter of Dial Indicator | φ100mm;150mm;75mm;63mm |
| Capillary Material | SS304/SS316 |
| Probe Diameter | φ6, φ10, φ12 |
| Process connecting Method | Without fixed
Movable thread outer Movable thread inner Fixed thread Fixed flange Adjustable thread Adjustable flange |
| Thread | M16X1.5; M27X2; G1/2; G3/4,M33×2 |
| Direction | Axial/Radial |
| Contact Type(for electric contact type): | NO,NC,NONO,NCNC,NONC,NCNO,SPDT |
Diagram:
