Radar Tank Level Indicator
Radar Tank Level Indicator has a good effect on the level measurement of different liquids, including viscous, corrosive, and turbid liquids, and it also has a fully enclosed anti-corrosion structure.
The WERD807 and WERD801 Radar Tank Level Indicators are intended for non-contact measurement of volatile liquids, corrosive vapors, corrosive steam, and corrosive liquids. They may help prevent condensation while measuring. For stronger corrosive liquid vapor and high-temperature condensation, RD807 performs better for more effective and useful measuring.

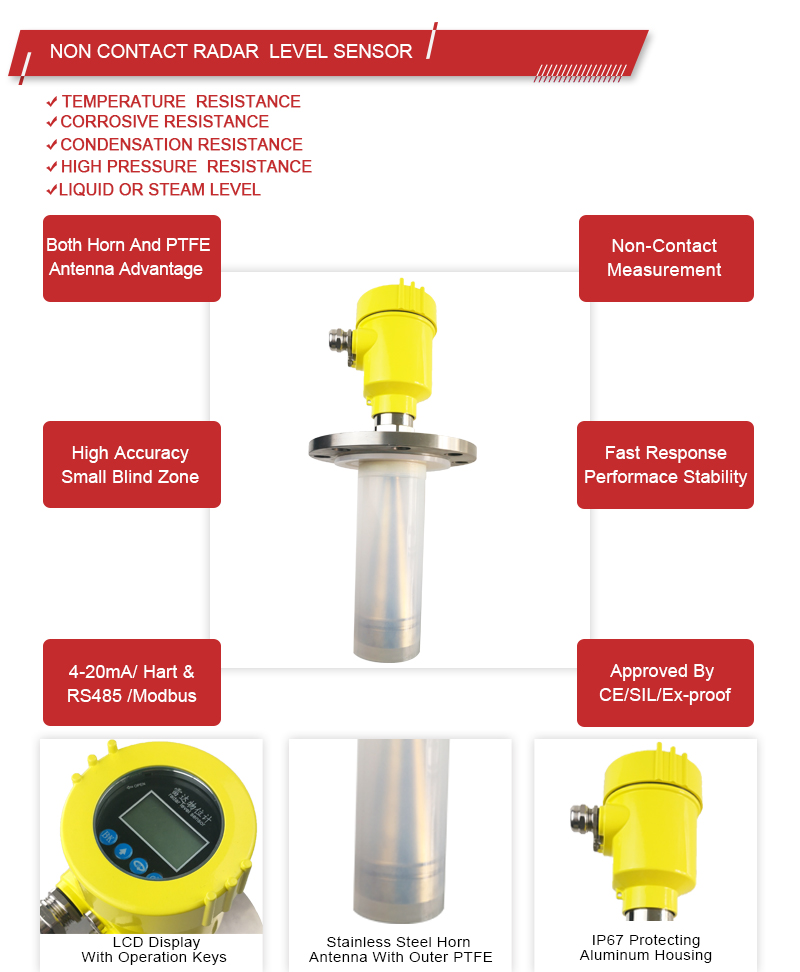

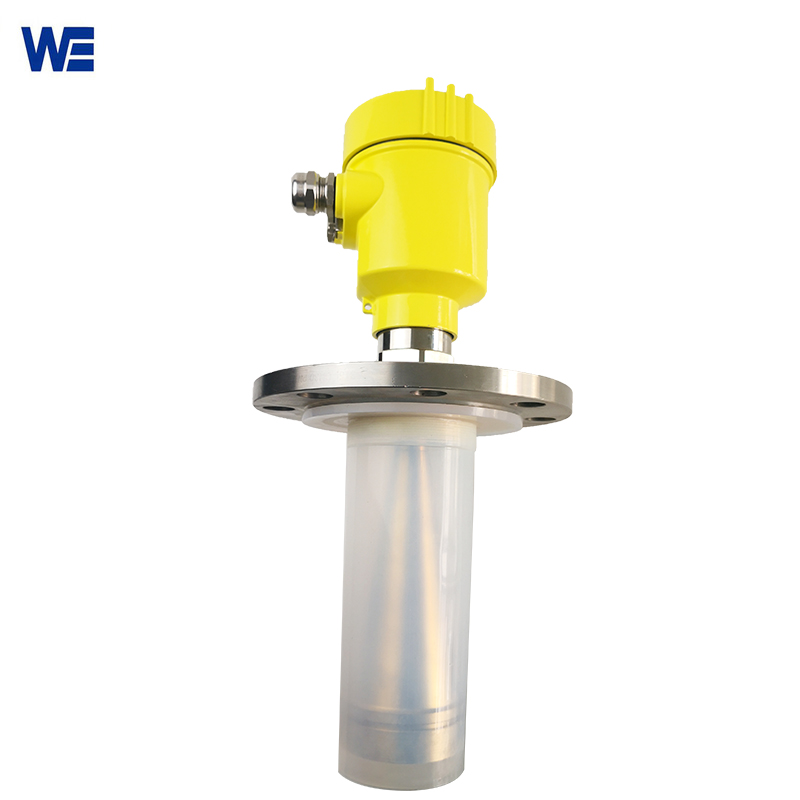

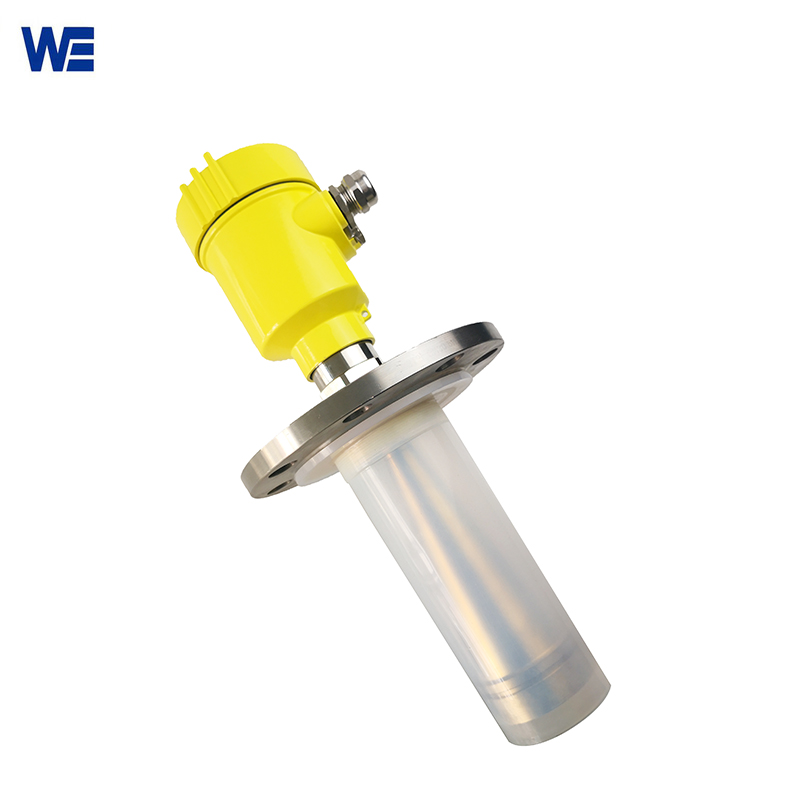

For measuring the liquid level in sewage treatment plants, chemical storage tanks, petroleum storage tanks, dosing tanks, docks, and other locations. Corrosive media like sulfuric acid, nitric acid, hydrochloric acid, sodium hydroxide, and strong alkali are measured with it. The measured medium is not in contact with a non-contact radar level indicator. It is composed of tetrafluoroethylene. The RD807 is a PTFE-shelled stainless steel horn.
The radar tank level indicator also features a completely sealed anti-corrosion structure.
| Product Name | Radar leve indicator for liquid lqi |
| Model | WERD801 |
| Medium | Corrosive liquid |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy |
± 5mm |
| Display | LCD, Programmable |
| Material |
Antenna :PTFE |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance ;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 20m |
| Pressure | -0.1-0.3MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
| Product Name | 26G Radar type level indicator |
| Model | WERD807 |
| Medium | Corrosive liquid |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy |
± 5mm |
| Display | LCD, Programmable |
| Material |
Antenna :Stainless steel horn and PTFE shell . |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance ;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 30 |
| Pressure | -0.1-4MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
