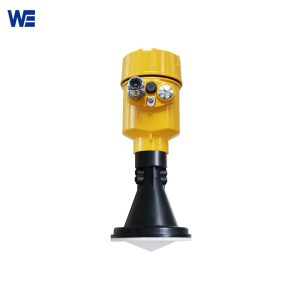

Radar Level Sensor For Solids
Radar Level Sensor For Solids can be used for reactor, solid silo, solid material , strong dust , and very complex measurement environment, this model is specially designed for solids material , strong dust ,easy to crystallize ,condensation occasion.
The WERD804 Radar Level Sensor For Solids is specifically intended for solid materials, strong dust, easily crystallizes, and condensation occasions. It uses a 26G high frequency radar sensor, with a maximum measuring range of 70–80 meters. This radar type level transmitter may be utilized in reactors, solid silos, solid materials, strong dust, and extremely difficult measurement environments. The antenna is tuned for further processing, and the new fast microprocessors have faster speed and efficiency that can be done signal analysis.
The principle is that it reflects the collected waves to a point for amplification, similar to the condensed light of a concave mirror. In comparison to an ordinary horn radar level meter, a parabolic antenna radar sensor receives stronger and more echo signals, and measurement accuracy is naturally better, especially for certain working conditions with larger particles, stronger dust, and stronger wave-absorbing ability.
| Product name | Radar level sensor for solids |
| Medium | Temp Resistant, Presssure Resistant, Slight Corrosive Liquid
Solid Material,Strong Dust ,Easy To Crystallize Or Condensation |
| Shipping weight | 2.5kg |
| Measuring range * | 0-10m, 0-30m, 0-50m, 0-70m |
| Accuracy | ±3mm |
| Resolution | 1mm |
| Display | LCD display |
| Measured interval | 1s (according to parameter setting) |
| Adjustment time | 1s (according to parameter setting) |
| Microwave frequency | 26GHz |
| Output signal * | 4-20mA (can be connected with HART), RS485/232 |
| Power supply * | DC 6-24V, AC 220V/50Hz |
| Material | Shell: aluminum, process connection: 304 stainless steel, horn: 304 stainless steel |
| Horn antenna size * | Φ76mm (only for range less than 30m), Φ96mm, Φ121mm |
| Pressure | Maximum 4MPa |
| Shock resistance | 10m/s2, (10~150)Hz |
| Communication protocol | Modbus |
| Medium | Solid Material,Strong Dust
Easy To Crystallize Or Condensation |
| Storage temperature | -40~+100℃ (-40~+212℉) |
| Process connection (antenna) temperature | -40~+150℃ (-40~+302℉) |
| Protection class | IP67 |
| Electrical connection | 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2″ NPT |
| Installation * | G1-1/2″A thread, vertical bracket, flange |
| Warranty | 12 months |
| The instrument is preferably installed at 1/4 or 1/6 of the diameter of the tank. 1. datum2. The container center or axis of symmetry Note: The minimum distance from the tank wall should be 200mm. |
 |
| The top conical tank level, can be installed at the top of the tank is intermediate, can guarantee the measurement to the conical bottom. |  |
| Typical installation errors: Conical tank cannot be installed above the feed port.
Note: outdoor installation should adopt sunshade. 1. Correct 2. Error rainproof measures |
 |
| There are obstacles affecting measurement needed reflection plate.
1. Correct 2. Error |
 |
