Pulse Radar Level Transmitter
The pulse radar level transmitter is specialized equipment for measuring the level of dust in tanks. Wepower pulse radar transmitter is a very accurate professional measuring device for solid particles with stability and accuracy.
The primary purpose of Pulse Radar Level Transmitters (RD804) is to monitor the concentration of materials such coal ash, aluminum powder, paper powder, starch, and strong dust. Radar level transmitter pulse. Because of its strong signal that can penetrate the layer of dust, the pulse radar level transmitter RD804 is able to measure the number of these airborne particle objects more precisely.

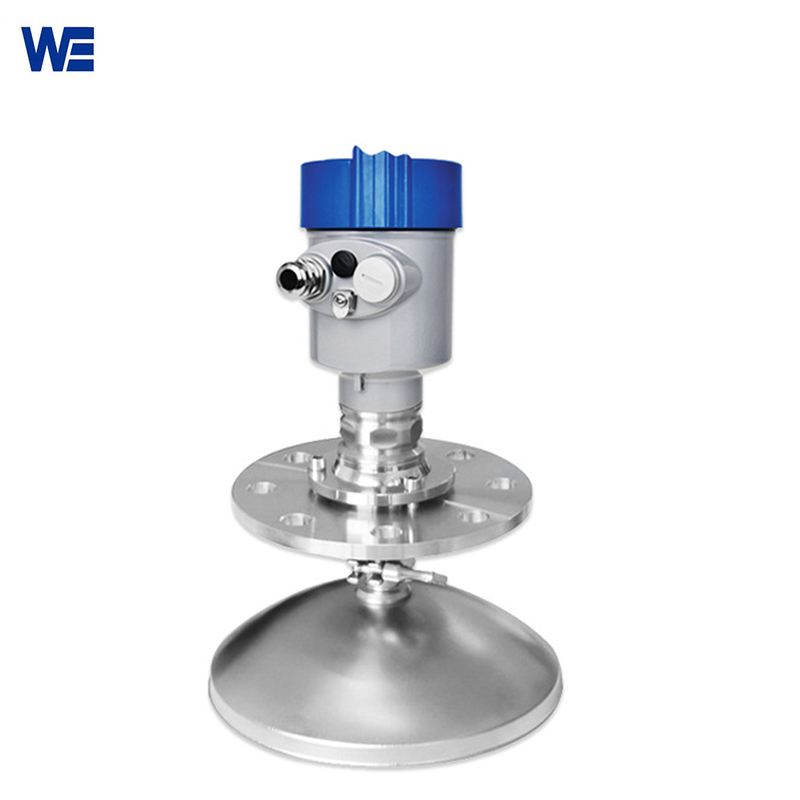

The pulse radar level transmitter RD804 makes use of a parabolic antenna. The pulse radar level transmitter has a very important position in the fabric processing sector due to the most notable feature of the parabolic antenna: it can better absorb the signal reflected by materials such as dust and coal ash.
The temperature range of the material being measured by pulse radar level transmitter is -40 to 250°C. It is typically advised to measure in an indoor setting when measuring dust-like material.
| Product Name | RD804 Pulse Radar Level Transmitter |
| Medium | Solid material, Strong dust, easy to crystallize, condensation occasion |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy | ± 15mm |
| Display | LED, Programmable |
| Material | Antenna :Stainless Steel |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Plastic / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance 1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Resolution: 1.6μA | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 80 meters |
| Pressure | Max.4MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃(Standard type) / -40℃~230℃(High temperature type) |
| Working Storage Temperature | (-40～80) ℃ |
