Online Vibration Concentration Meter

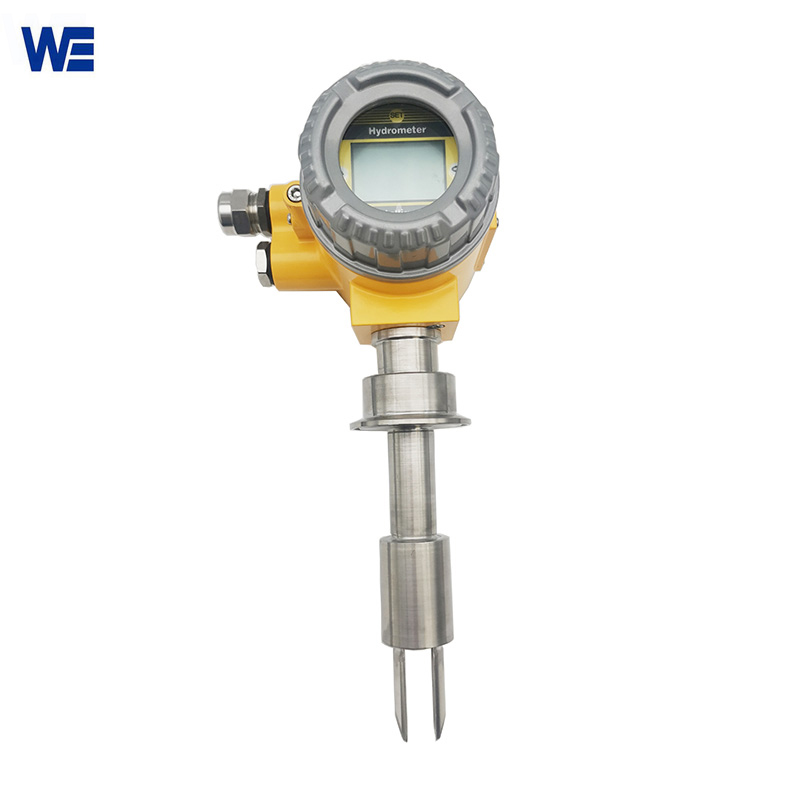

WPX301 Online Vibration Concentration/ Densitometer Meter is specially designed for the application needs of online accurate measurement for liquids ,slurry ,and mixed solutions .As a stable and reliable direct Insertion concentration meter that it requires very little maintenance. Typical industries of application include petrochemical industry, wine industry, food industry, pharmaceutical industry and mineral processing , alcohol concentration too .
WPX301 Online Vibration Concentration/Desitometer Meter is specially designed for the application needs of liquids, slurry and mixture solutions.Being a direct insertion vibration concentration meter without moving components, it is sturdy, dependable, and requires very little maintenance.
What is the main features of the vibration concentration meter -WPX301?
●Completely integrated digital measuring that is “Insert and operate, maintenance-free”
● Convenient and adaptable setup without debugging
● Compact overall dimension, minimal room needs on-site
● The integrated transmitter is capable of both digital and analog communication.
●Before leaving the manufacturer, everything is rigorously tested and confirmed to guarantee accuracy and performance.
●Constant real-time monitoring in tanks, bypasses, and pipelines
●Outstanding dependability and security
● Optimized design—resistant to fluctuations in pressure and vibration
● In the density detection procedure, automatically adjust for the impact of temperature on the detected medium’s density.
● Use high-performance, industrial-grade single-chip integrated circuits. Complete signal correction, computation, and diagnosis tasks are handled by the CPU without the need for external electronic processing devices. Strong anti-interference capabilities, high stability and precision.
● Because the input and output signals are totally isolated, users can easily build the system to prevent interference.
● The power supply uses a wide precision power supply, isolation circuit design, anti-interference, and impact resistance.

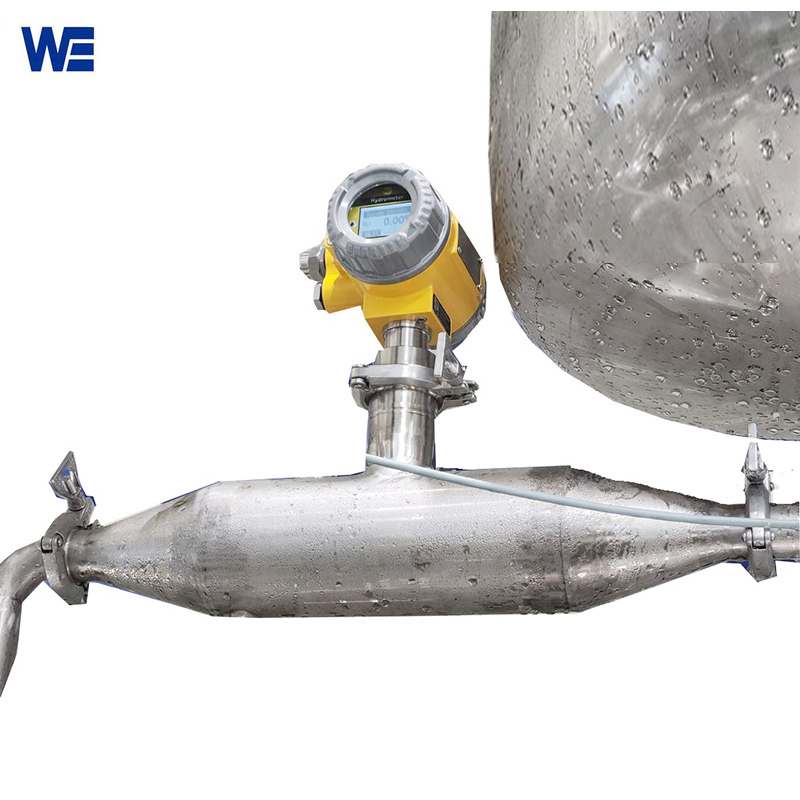

Click photo as above to reach Youtube video to learn our concentration meter for alcohol in Korea .
| Product name | Vibration Concentration Meter /Tuning Fork Densitometer / Mico Motion Liquid Density Meter |
| Measurement range | 0-2.5 g /cc (0-2500 kg/m3);，0~100.0% |
| Medium | Liquid;slurry , liquid mixture |
| Function | Test Density and Concentration online |
| Temperature range | -50 c ~+150 c |
| Accuracy | ±1-2kg/m3(± 0.002 g/cc ) |
| Max Working Pressure | 207bar (3000psi) |
| Medium Viscosity | 0-10000cp;Fluid viscosity range 0-2000cp |
| Power Supply | 24 V DC |
| Signal Output | 4 -20 mA，0-1000Hz，RS485 Modbus RTU |
| IP Grade | IP67 |
| Wetted Material | SS316/SS2205/Hastelloy C/ PTFE |
| Process Connecting | Flange (ANSI 150 ~1500 RF，DIN 50 PN16，DIN 50 PN40) /Tri- clamp /Thread |
| Disadvantage | not ideal for measuring crystallization and fouling media |
In order to ensure the density meter can measure accurately and display stability, there are necessary conditions should be met as below
● Measured medium flow rate should not be greater than 1m/s,
● Pipe diameter for installing the density meter should be greater than or equal to 159mm,
● Location of density meter should be installed as far away as possible from the pump, at least 5m suggested ,
● When the flow rate is greater than 1 m/s, use the expanded diameter installation.
● When the flow rate increases by 1m, the pipe diameter of the density meter is increased by 1.5 times.
● Must be a straight pipe section ≥ 600mm before this meter;a straight pipe section ≥ 300mm behind the meter
● Fluid is in a laminar state when flow through the fork body.

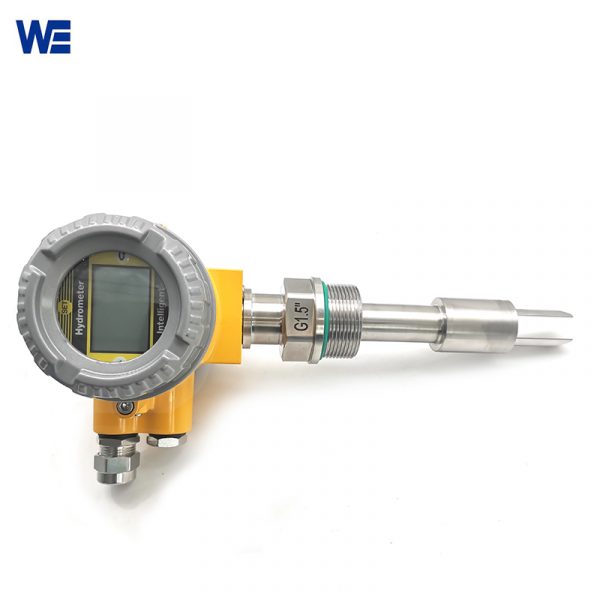

| Ordering Sheet | |||||||
| WPX301 | Vibrating Densitometer | ||||||
| / | CODE | Type | |||||
| A | Common | ||||||
| B | High Temp | ||||||
| C | Hygeian（Sanitary) | ||||||
| / | CODE | Length | |||||
| 01 | 150mm（Standard） | ||||||
| 02 | 200mm（Standard ） | ||||||
| 03 | Rod Extension 150mm～3000mm | ||||||
| / | CODE | Pressure | |||||
| D | 24V DC±10% | ||||||
| / | CODE | Material | |||||
| 1 | 316（Standard ） | ||||||
| 2 | 2205 | ||||||
| 3 | Hastelloy C | ||||||
| 4 | Anti-corrosive ，with coated PTFE | ||||||
| 5 | Other Customer Request | ||||||
| / | CODE | Process Connecting | |||||
| G | Dn50 PN16 316L | ||||||
| T | 1.5”G Thread | ||||||
| C | Tri-Clamp | ||||||
| F | Other Customer Request | ||||||
| / | CODE | Other Parameters | |||||
| A | Normal Temperature ℃ | ||||||
| B | Normal Pressure Kpa | ||||||
| C | IP Grade ：IP67 | ||||||
| D | Explosion-proof ：ExdⅡ CT5 | ||||||
| E | Temp:℃ | ||||||
| F | Pressure : Kpa or Mpa | ||||||
| （） | Other Customer Request | ||||||
| WPX301 | A | 01 | D | 1 | G | AB (Example ) | |
For learn more about our WPX301 Densitometer , please click photo below to our youtube video list :
