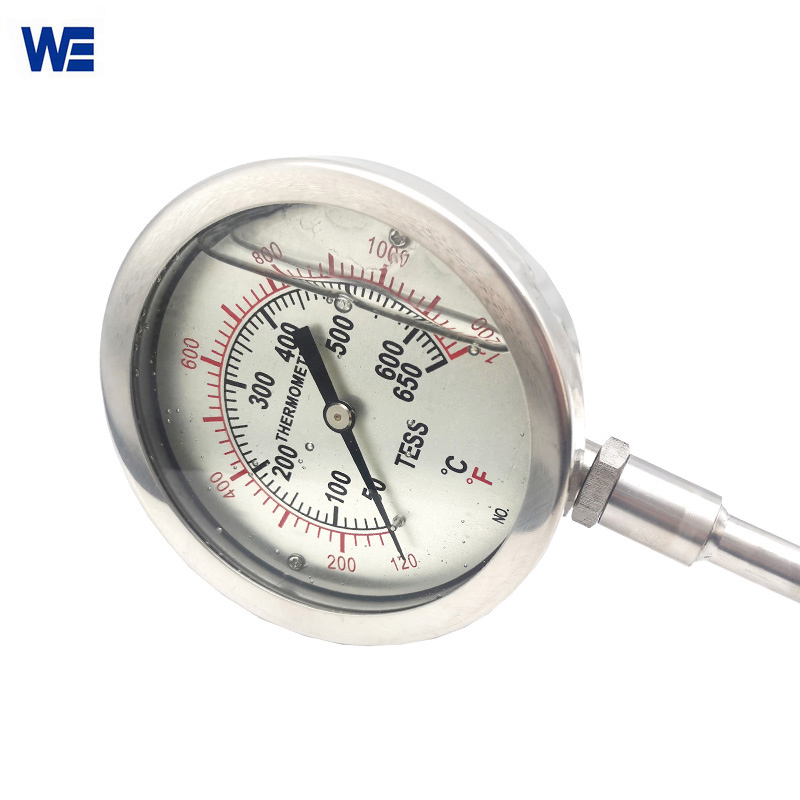

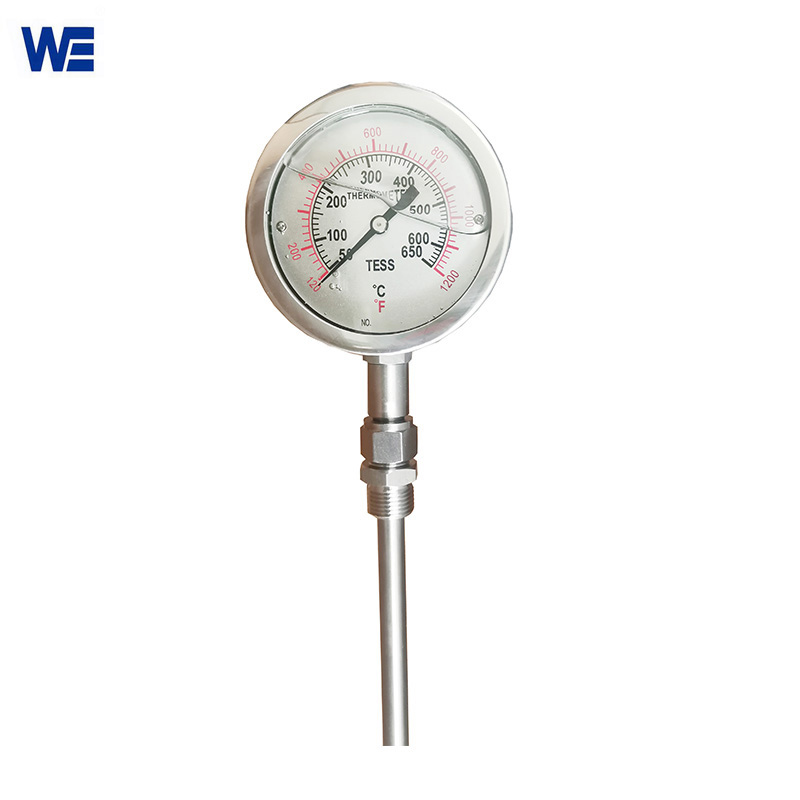

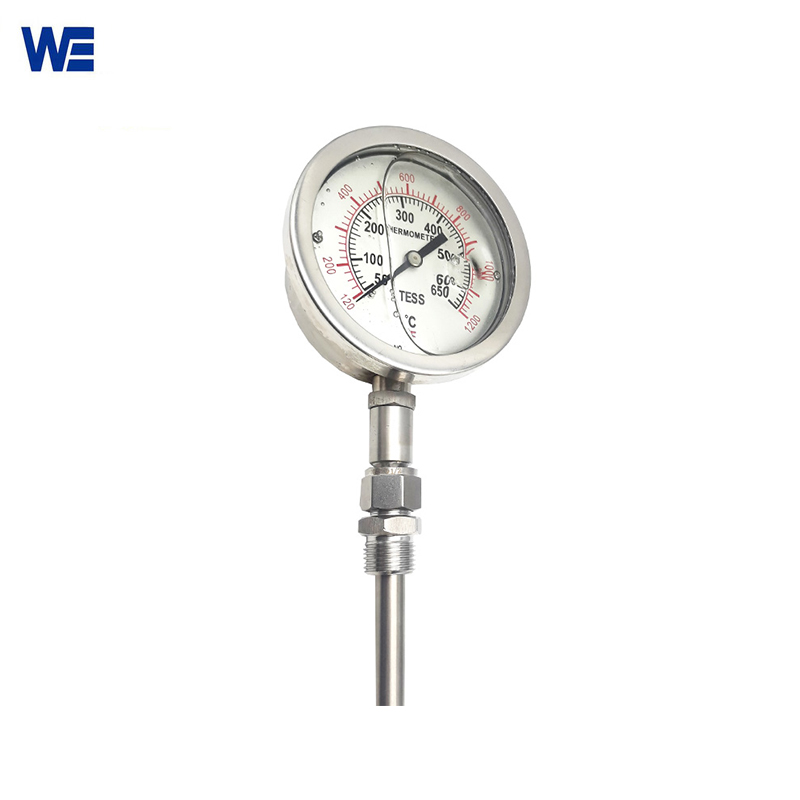

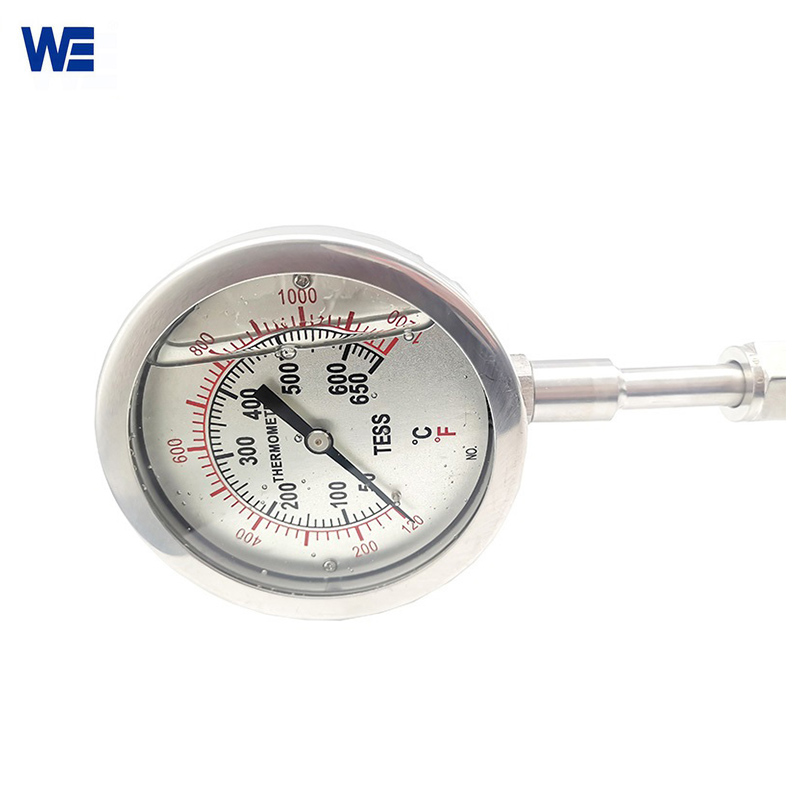

Oil Filled Thermometer

Oil filled thermometer is suitable for liquid, steam and gas media and harsh and vibrating environments. The principle of gas expansion is adopted to make the oil-filled thermometer have higher shock-proof performance.

Category: Temperature Thermometer

Description

Features And Application Areas Of Oil Filled Thermometer:

Oil Filled Thermometer is a kind of pressure thermometer. It can be used to directly measure the temperature of liquid, steam and gas medium and the environment with harsh vibration. It has the characteristics of high measurement accuracy and sensitive response.

Oil Filled Thermometer is widely used in petroleum, chemical, machinery, shipbuilding, power generation, textile and other industrial and scientific research departments, especially suitable for marine diesel engines. The principle of gas expansion is adopted to make Oil Filled Thermometers have higher shockproof performance. Oil filled thermometers are ideal shock-resistant industrial thermometers. They are made of stainless steel, and the thread and probe size can be customized.

Parameters:

Product Name	Oil Filled Thermometer
Dial Diameter	100mm
Temperature Range	50~650 ℃.
Material	stainless steel 304/316
Accuracy	1.5%
Diameter of Dial Indicator	φ60, φ100, φ150mm.
Stern Tube Length	100-2000mm
Stern Tube Diameter	φ6, φ10(when tube length is 100-1250mm)
Stern Tube Diameter	φ12(when tube length is 1250-2000mm)
Thread :	M16X1.5; M27X2; G1/2; G3/4.
IP Grade	IP68
Working Pressure	6.4Mpa
