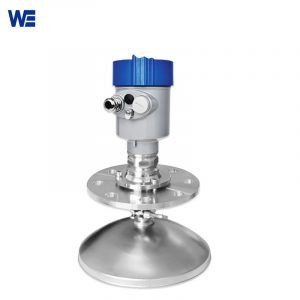

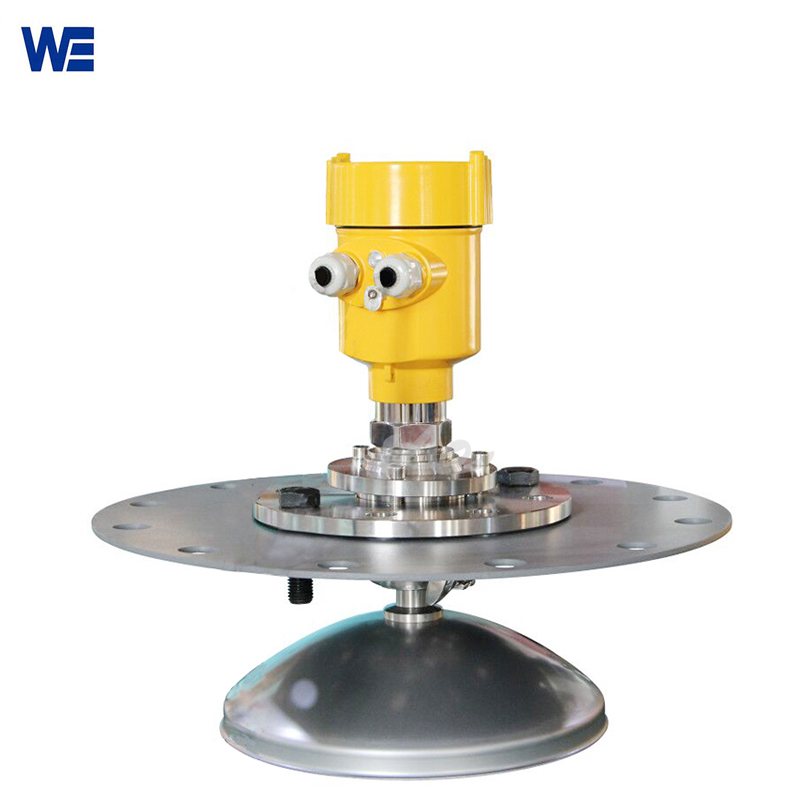

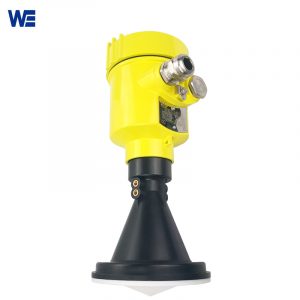

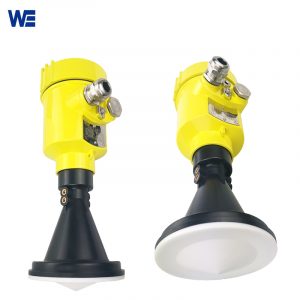

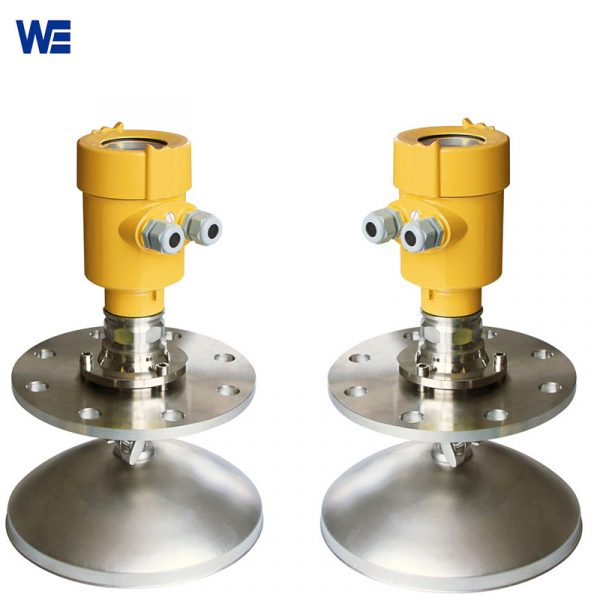

Non Contact Radar Level Sensor

The non-contact radar leve sensor  is not affected by temperature, pressure, gas, etc. because it does not contact the measured medium. It can be used under bad working conditions, large changes, water vapor, steam, foam and other ultrasonic level gauges that are not competent. Radar level sensors are almost maintenance-free, no damage, hanging materials, etc., there is no parts replacement problems, life  is long, simple to install, simple to calibrate, and is not affected by gas composition, dust, temperature changes in the silo.

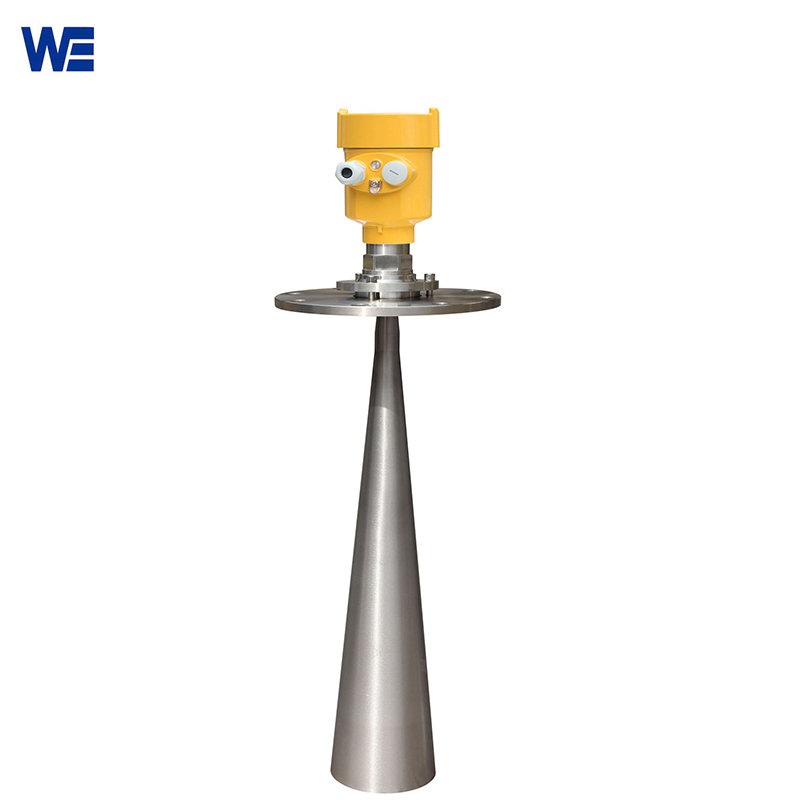

The high frequency 26G non contact radar level sensor has a unique related solution technology that allows it to precisely determine the time difference between a pulse being emitted and one being received. This allows for additional calculations of the antenna’s distance from the measured medium’s surface.

Feasures:

• The beam angle is small, the energy is concentrated, and it has stronger anti-interference ability, which greatly improves the measurement accuracy and reliability.
• The antenna size is small, easy to install and install dust cover and other antenna protection devices.
• The measurement blind area is smaller, and good results can be obtained for small tank measurement.
• The wavelength is shorter, which is more suitable for the particle position measurement of dust and small particles.
• Using advanced microprocessor and unique EchoDiscovey echo processing technology, it can be applied to various complex working conditions. Using pulse working mode, the high frequency radar level meter has very low transmitting power, and can be installed in various metal and non-metal containers without harm to the human body and environment.
