Non Contact Level Transmitter

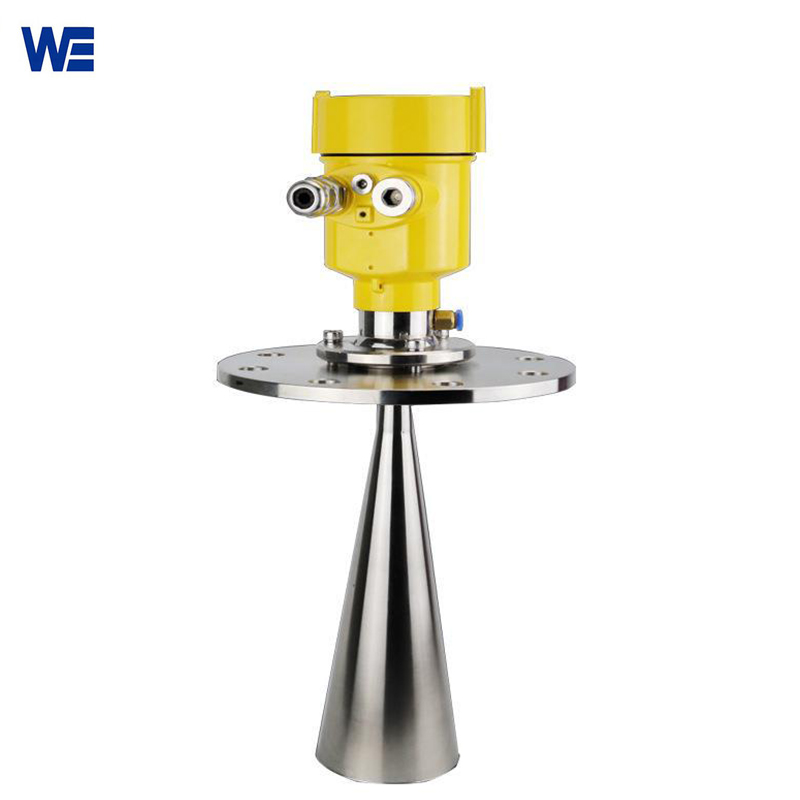

High frequency radar level sensor is currently the mainstream product for measuring solid level.Solid Radar Type Level Sensor is non contact level measurement , horn antenna and parabolic antenna are widely used for level measuring of solid material,heavy dust,particles etc .

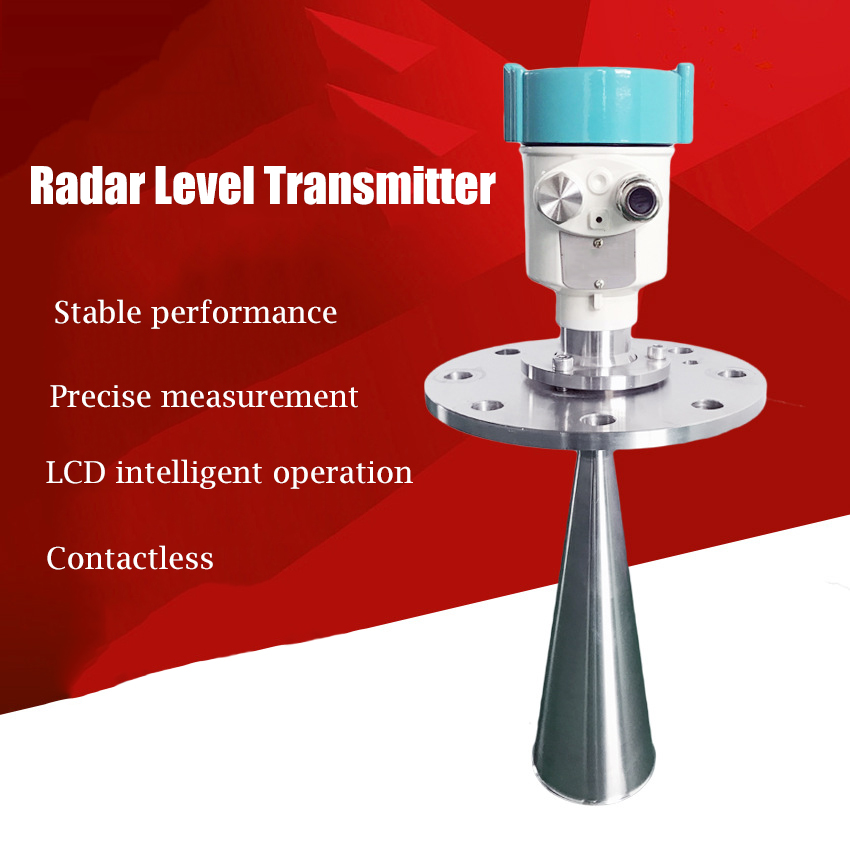

The high frequency 26G non contact level transmitter is not affected by temperature, pressure, gas, etc. because it does not contact the measured medium. Non contact radar level transmitter are almost maintenance-free, no damage, hanging materials, etc., there is no parts replacement problems, life is long, simple to install, simple to calibrate.

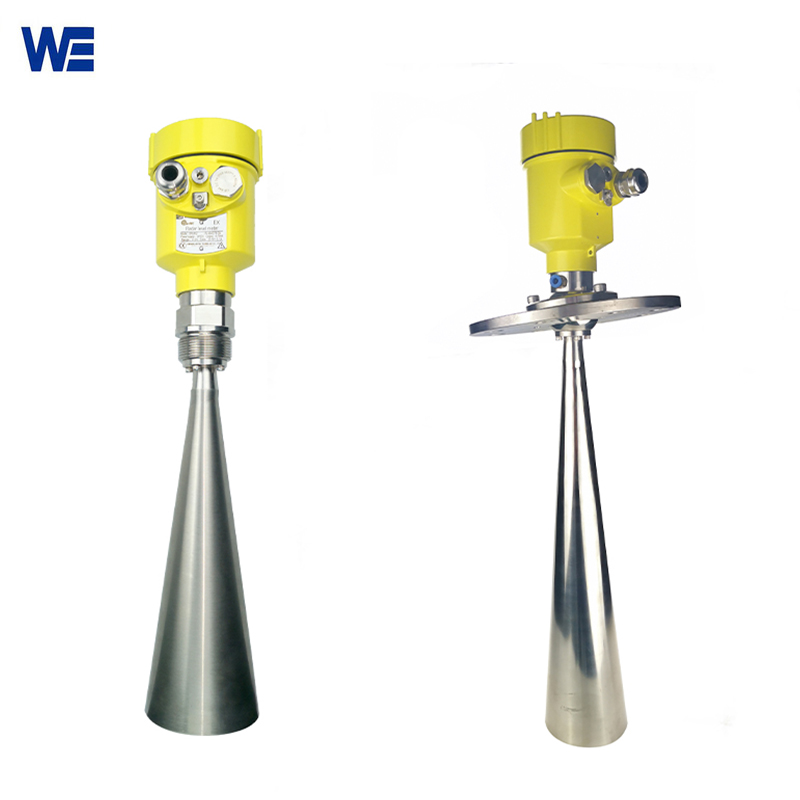

No contact radar level transmitter can measure level for both liquids and bulk solids in tanks ,vessel, contatainers . Horn and paraboloid are the common antenna, paraboloid antenna signal is stronger than standard horn shape antenna radar level meter。
| Model | WERD803/805/804 |
| Medium | Temp Resistant, Presssure Resistant, Slight Corrosive Liquid
Solid Material,Strong Dust ,Easy To Crystallize Or Condensation |
| Shipping weight | 2.5kg |
| Measuring range * | 0-10m, 0-30m, 0-50m, 0-70m |
| Accuracy | ±3mm |
| Resolution | 1mm |
| Display | LCD display |
| Measured interval | 1s (according to parameter setting) |
| Adjustment time | 1s (according to parameter setting) |
| Microwave frequency | 26GHz |
| Output signal * | 4-20mA (can be connected with HART), RS485/232 |
| Power supply * | DC 6-24V, AC 220V/50Hz |
| Material | Shell: aluminum, process connection: 304 stainless steel, horn: 304 stainless steel |
| Horn antenna size * | Φ76mm (only for range less than 30m), Φ96mm, Φ121mm |
| Pressure | Maximum 4MPa |
| Shock resistance | 10m/s2, (10~150)Hz |
| Communication protocol | Modbus |
| Medium | Solid Material,Strong Dust
Easy To Crystallize Or Condensation |
| Storage temperature | -40~+100℃ (-40~+212℉) |
| Process connection (antenna) temperature | -40~+150℃ (-40~+302℉) |
| Protection class | IP67 |
| Electrical connection | 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2″ NPT |
| Installation * | G1-1/2″A thread, vertical bracket, flange |
| Warranty | 12 months |
