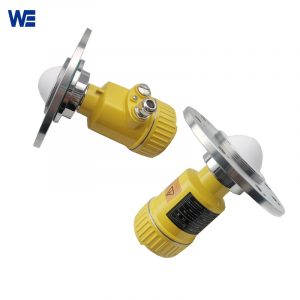

Non Contact Level Meter For Tanks

Non contact level meter for tanks with output signal is widely used in many occasions. 80G radar level meter is ideal for measuring up to 120m tanks with very high accuracy. Wepower Electronic has many years of level instrument experience, contact us now! Click here to view more product videos

Category: 80G Radar Level Meter

Description

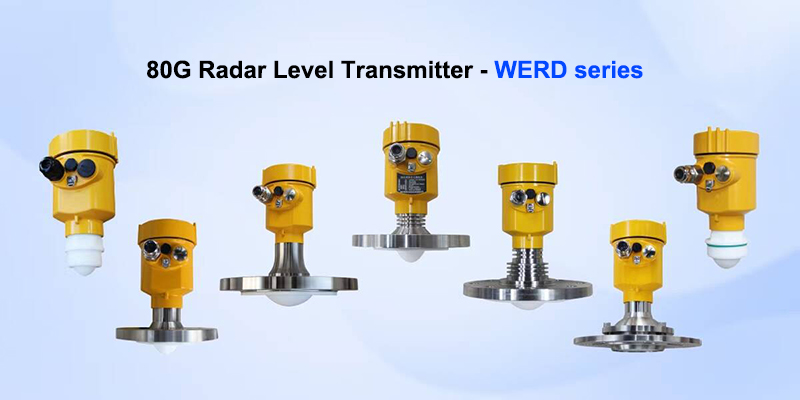

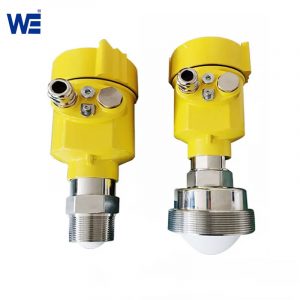

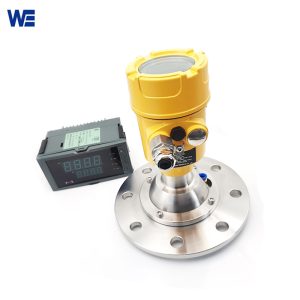

80GHz FMCW radar level meter is the typical non contact tanks level measuring tools which is the through-air radar level sensor with frequency modulation in the range of 77-81GHz.

Non contact level metre for tanks 80GHz radar level meter has the advantage in both short distance and large range measuring : for short distance range , blind zone within 10cm fundamentally battle the flaw of 26G radar level meter ; for the large range level measuring , 80GHz radar can reach a range of 120m ,very easy for measuring the super large storage tanks and silos .

80GHz FMCW radar meter allows the real-time online signal output of 4-20mA ,Hart ,and RS485/MODBUS. 80GHz non contact radar meter has good performance at measuring strong dust, steam,bubbles, stirring occasions than the conventional 26G open air radar level meters .

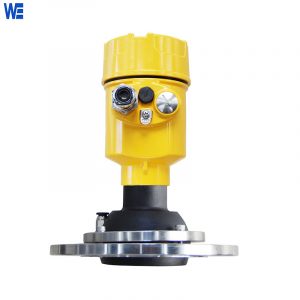

Name	80GHz Radar Level Meter –Non Contact Level Meter for Tanks
Model	WERD-9X/WERD-9XS
Medium	Corrosive Liquids; Hygienic; Steam/bubble; Solids

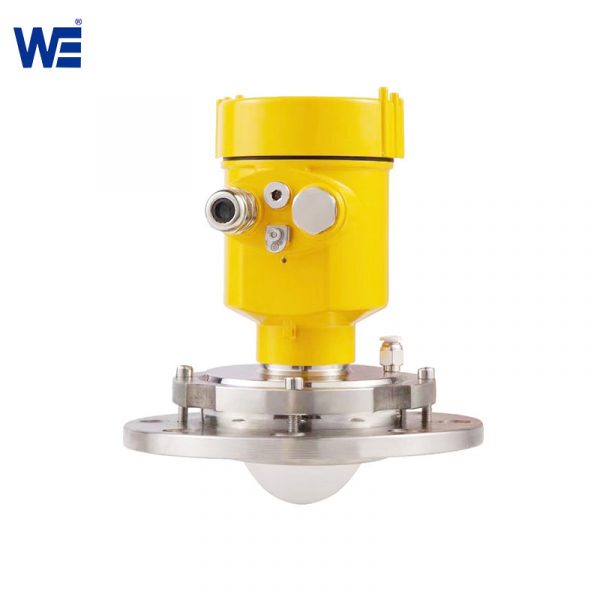

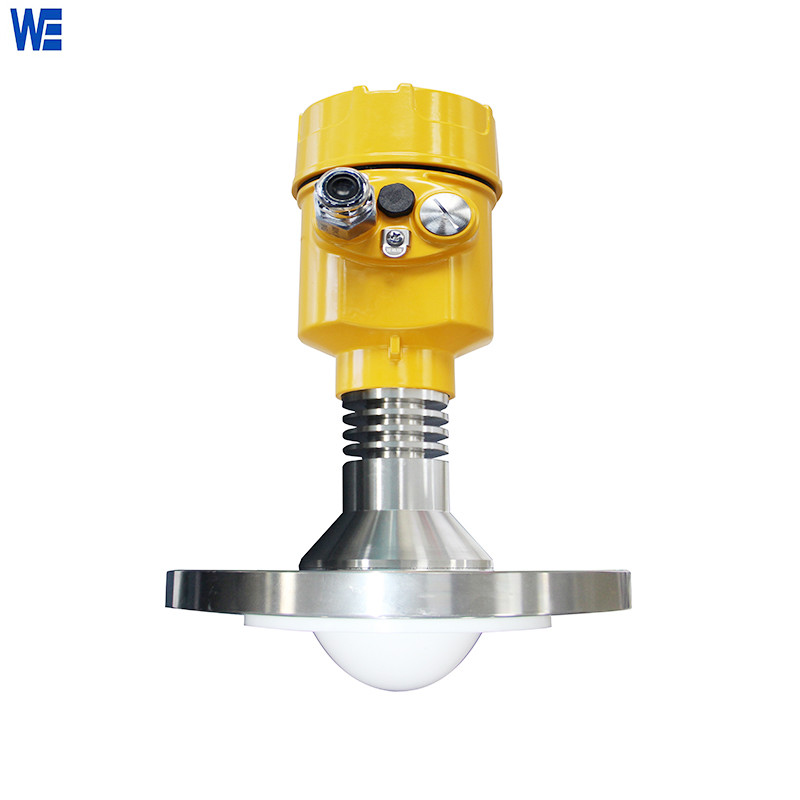

Antenna Type	PTFE or Lens (42mm;46mm;76mm, lens size depends on range )
Measure Range	0-120m (RD-9X) 0-10m (RD-9XS)
Accuracy	±1mm
Response time	0.6s

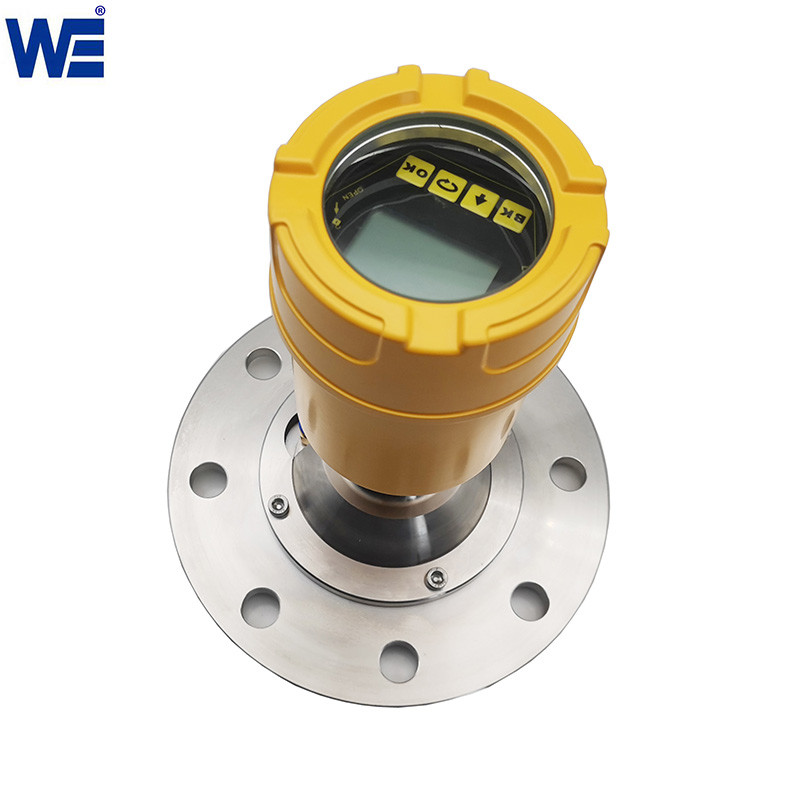

Display	LCD display
Beam angle	6°
Adjustment time	0.6s (according to parameter setting)
Microwave frequency	77-81 GHz,5GHz FMCW bandwidth
Output signal *	4-20mA +HART, RS485 MODBUS -RTU
Power supply *	DC 6-24V, AC 220V/50Hz
Material	Shell: aluminum, process connection: 304 stainless steel,
Pressure	0.1-2MPa
Storage temperature	-40~+120℃ (-40~+212℉)
Protection class	IP68
Electrical connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2″ NPT

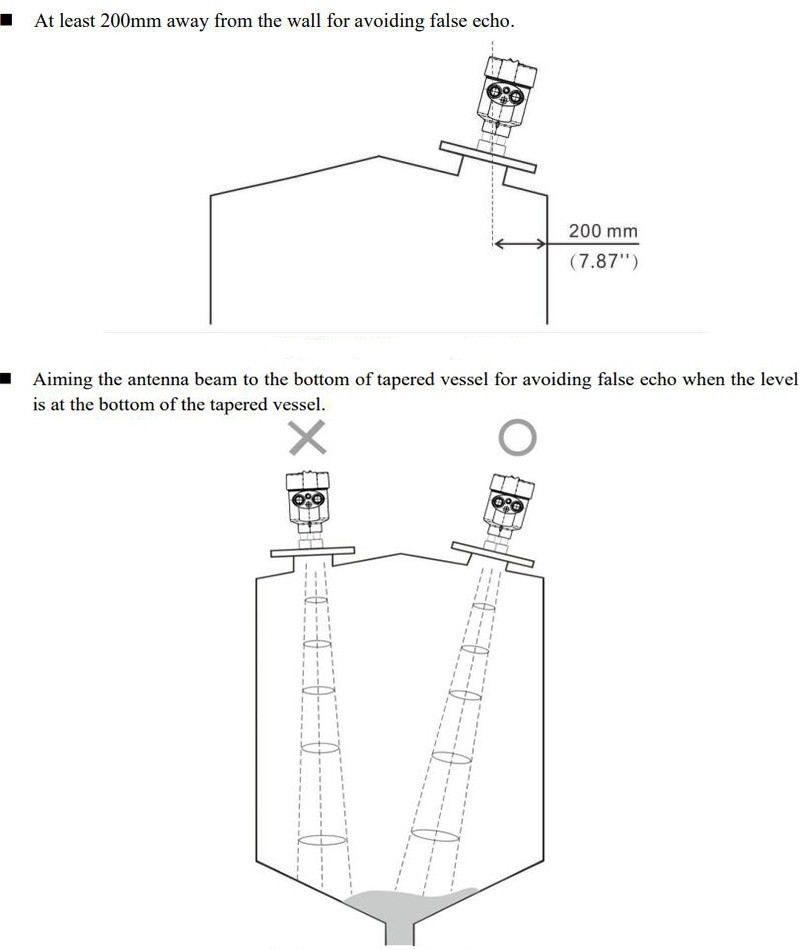

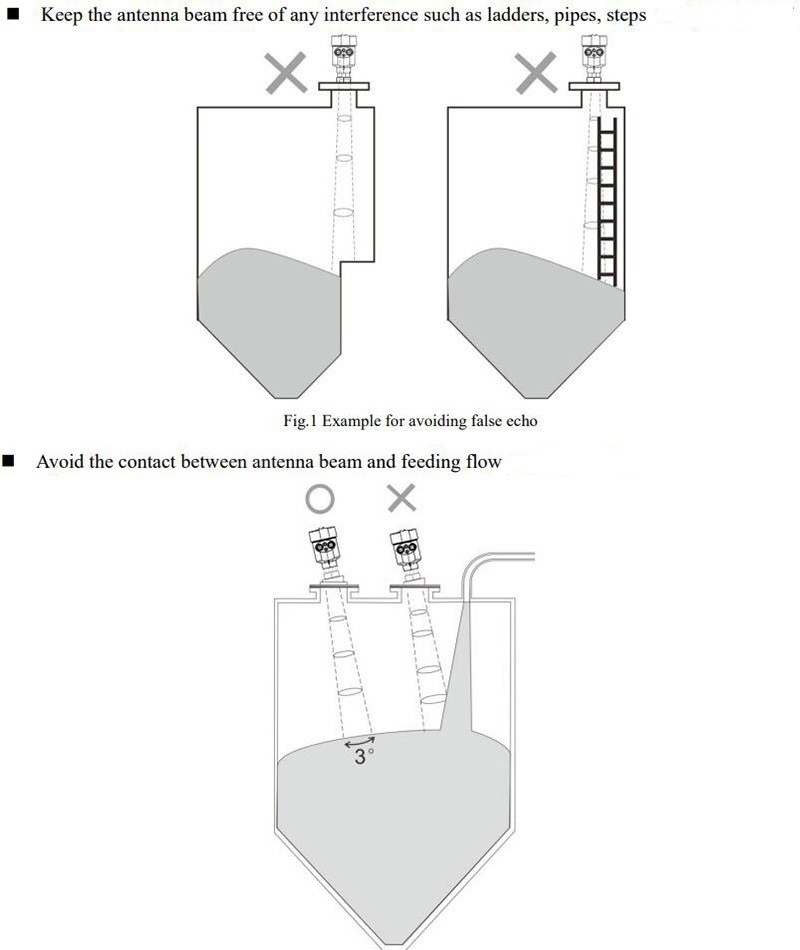

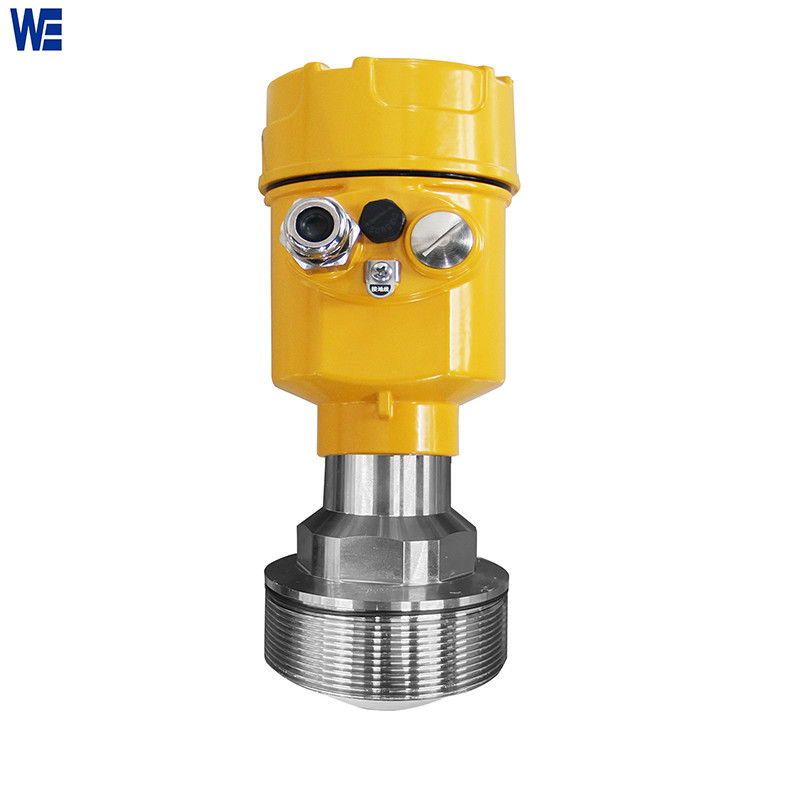

Installation *	flange/1.5″thread
Warranty	12 months
