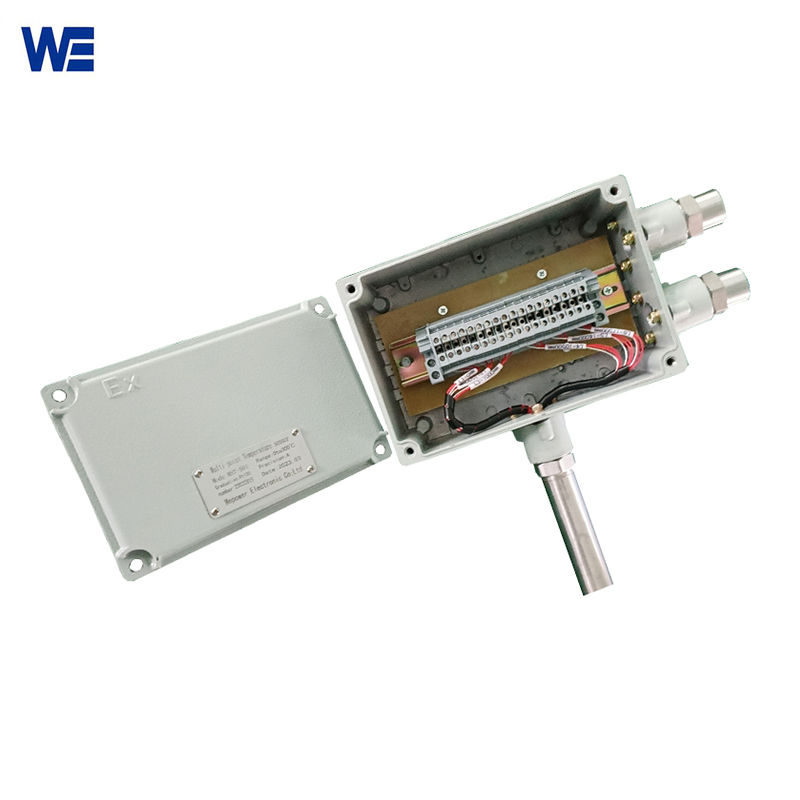

Multipoint Temperature Transmitter
HD-WZP multipoint temperature transmitter produced by Wepower Electronic can provide customized services for customers. Numerous terminals, connections (thread or flange), and stem types (exposed, protecting tube, flexible protecting soft tube) are available for your choice.
Character&Application Areas Of Multipoint Temperature Transmitter:
Temperature sensor (thermal resistance, thermocouple) and temperature transmitter are combined in the HD-WZP series Multipoint Temperature Transmitter. Multipoint Temperature Transmitters may immediately convert multi-point resistance and multi-thermocouple signals with a range of -200 to +1600 °C into two-wire 4 to 20 mA electrical signals for transmission to displayers, regulators, recorders, DCS, and other devices in order to provide accurate temperature measurement and control.
Multipoint Temperature Transmitters produced by Wepower Electronic are suitable for geological monitoring, petrochemical industry, fine chemical industry, food and drug processing industry, scientific research experiments and other industries.
Features:
- Multiple measurements of boreholes or vessels
- Temperature range -200… + 1200 ° C
- Standard material AISI 316L or INCONEL 600
- The junction box may be installed independently or attached to the flange
- Pt100, accuracy grade A, as standard, more accurate as required

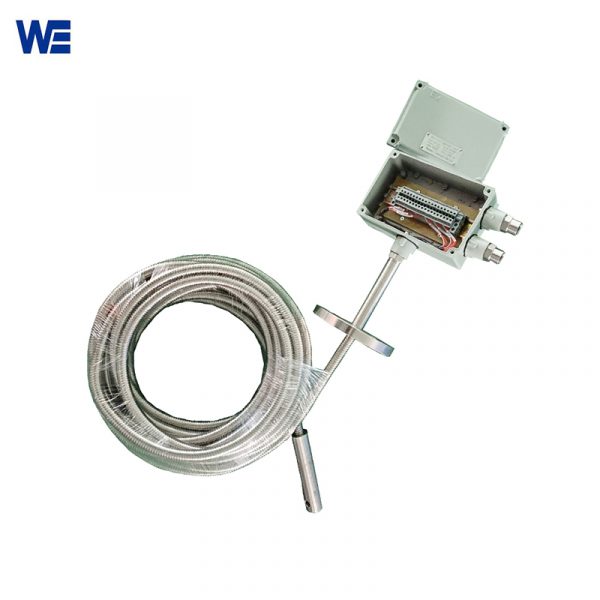

- With flexible stainless protecting tubes, anti-vibration too
- Explosion-proof
Parameters:
| Product Name | Multipoint Temperature Transmitter |
| Ref No. | PT100, Type K/J/T/N thermocouple |
| Explosion-proof grade: | DIIBT4/ DIICT6 |
| Accuracy Class | 0.5%F.S、0.2%F.S |
| Process connecting /material | DN50 GB/ANISI/JIS flange ;stainless steel 304; Thread |
| Diameter Sheath | Ø3, Ø4,Ø5, Ø6, Ø8,as request |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel/ |
| Measuring range | -200~1600 degrees Celsius |
| Junction Box | Ex type aluminum housing ,water-proof |
| Electrical connecting | M20*1.5, NPT1/2″，G1/2″ |
| Heavy punch | stainless steel ,with fix hole , 35*150mm |
| Flexible Protecting tube | SS301/SS316/PTFE |
| Signal Output | 4-20mA |
Diagram:
