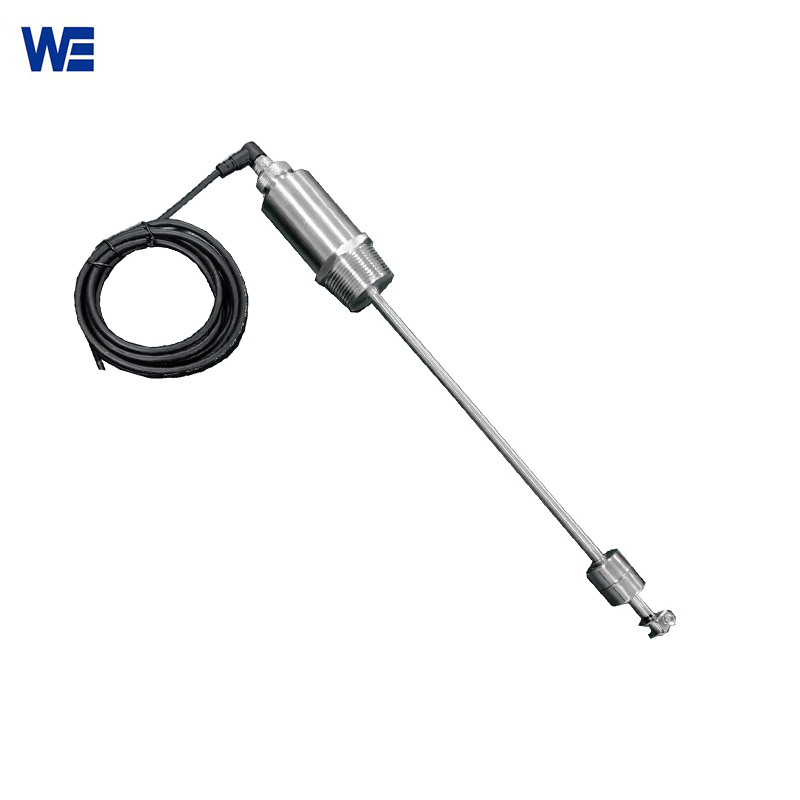

Magnetostrictive Oil Tank Level Sensor
Magnetostrictive oil tank level sensor is mainly installed on the top of the tank and is generally used to measure oils such as palm oil, diesel, petroleum, and crude oil. Magnetostrictive oil tank level sensor has good advantages in oil measurement. Contact us now!
Measuring the level of oil tanks is crucial for numerous industrial processes. For the purpose of determining oil storage capacity, inventory, and input amounts, it is essential to measure the liquid level in oil storage tanks accurately. With its accurate and user-friendly monitoring of oil levels, our Magnetostrictive Oil Tank Level Sensor is particularly useful for measuring oil tanks. Following the extraction of crude oil, high-precision devices for measuring the oil-water interface are frequently utilized in the dehydration process. The manufacture and storage of oil-based products can be made much more efficient by using the Wepower magnetostrictive oil tank level sensor, which measures the oil-water contact effectively in real time.
Magnetostrictive Oil Tank Level Sensor Installation Notes:
▲Before ordering or installing, the user should first understand the on-site installation conditions to ensure that the ambient temperature, shock, vibration and pressure as well as the dimensions of the installation site comply with the allowable installation range of the liquid level meter.
▲ The measuring rod of the Magnetostrictive oil tank level sensor cannot be bent and must be placed carefully during storage. The electronic compartment and the end of the measuring rod of the magnetostrictive liquid level meter are not allowed to be subject to external heavy impacts or vibrations.
▲In practical applications, the magnetostrictive level gauge cannot be directly used in environments with chemical reactions, flammable and explosive conditions, steam and corrosive liquids, etc. If necessary, protection must be provided before going deep into the tank.
▲To prevent the electronic components of the magnetostrictive oil tank level sensor from being immersed in liquid, do not allow liquid to immerse above the hexagonal base.
▲The shielded cable of the Magnetostrictive oil tank level sensor must avoid high-power power supplies, radio frequency signal sources or other noisy transmission lines.
| Product | Magnetostrictive oil tank level sensor |
| Measuring range | 100-5000mm |
| Wetted material | AISI304, AISI316, PTFE etc. |
| Measurement field | Water, aqueous solution, beverages, food production, beverage production, chemical reagent production, petrochemical industry, crude oil storage, etc. |
| Medium | specific gravity ≥0.5g/cm3 and viscosity 1.25St |
| Accuracy | :≤±0.1%FS or 1um, whichever is the maximum |
| Power supply | DC12-36V |
| Output | two-wire 4-20mA+HART (optional) |
| Measurement display resolution | 0.3mm |
| Nonlinearity | <±0.05%FS |
| Hysteresis | ≤±0.002%FS |
| Temperature | -40-85°C (special instruction are required if it exceeds 85°C) |
| Pressure | 0-1Mpa (special indication is required when exceeding 1Mpa) |
| Explosion-proof | EXiaⅡCT4 intrinsically safe type |
| Junction box protection level | IP65 |
| Magnetic float ball | Standard ø76 special supply ø48, ø51, ø120,
ø145 or user’s choice. Float height F: ø48, is 55, ø51 is 60, ø76 is 80, ø120 is 125, ø145 is 150 (mm) |
| Ordering Information Sheet | ||||||
| Magnetostrictive Level Sensor | ||||||
| CODE | TYPE | |||||
| A | Standard | |||||
| B | High Temp | |||||
| C | Sanitary(Hygienic) | |||||
| / | CODE | Length | ||||
| 01 | 1000mm（Standard ） | |||||
| 02 | Tube Extension 1000mm～3000mm | |||||
| 03 | Cable Extension Split 1～20000mm | |||||
| / | CODE | Power Supply | ||||
| D | 24V DC±10% | |||||
| / | CODE | Material | ||||
| 1 | SS304（Standard )） | |||||
| 2 | SS316 | |||||
| 3 | Anti-corrosive ,With PTFE Coating | |||||
| / | CODE | Process Connecting | ||||
| G | G1”Thread （Standard)） | |||||
| T | 1”NPT Thread | |||||
| C | Other ( Customer Remark ) | |||||
| F | Flange（Please Remark Flange Spec) | |||||
| / | CODE | Other Parameters | ||||
| A | Normal Temp: ℃ | |||||
| B | Normal Pressure : Kpa | |||||
| C | IP Grade：IP65 | |||||
| D | Explosion-proof ：ExdⅡ CT5 | |||||
| E | Max Temp: ℃ | |||||
| F | Max Pressure: Kpa or Mpa | |||||
| （） | Other Request | |||||
| / | ||||||
| A | 01 | D | 1 | G | AB (EXAMPLE ) | |
