Magnetic Type Flow Meter
Magnetic type flow meter is a flow meter that operates by applying electromagnetic effects, which can be called electromagnetic flowmeter or flow transmitter. Our company’s magnetic type flow meter can measure liquids flowing in the range of 0.5 to 10m/s.

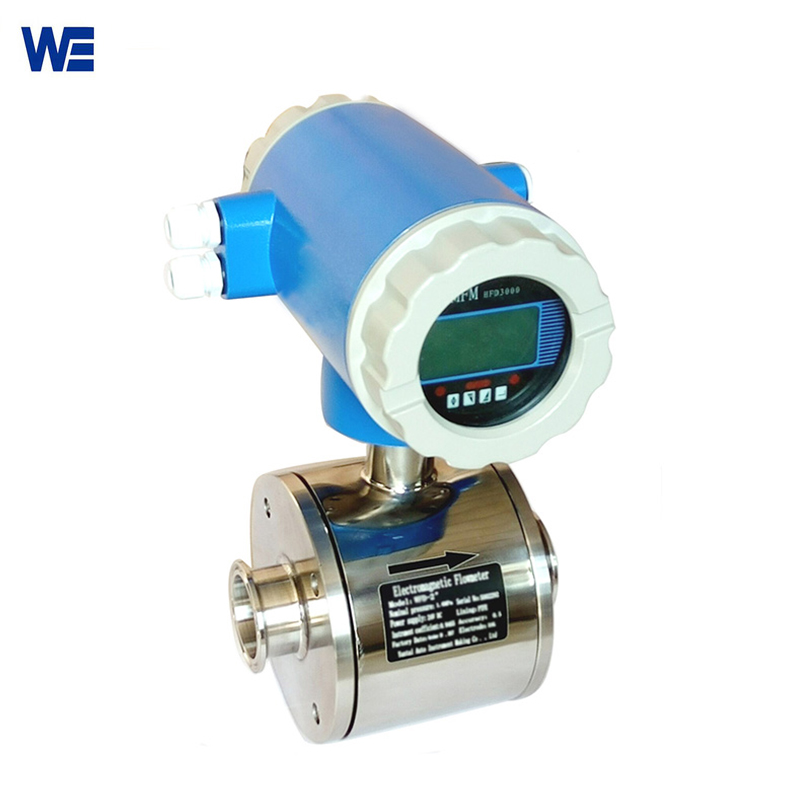

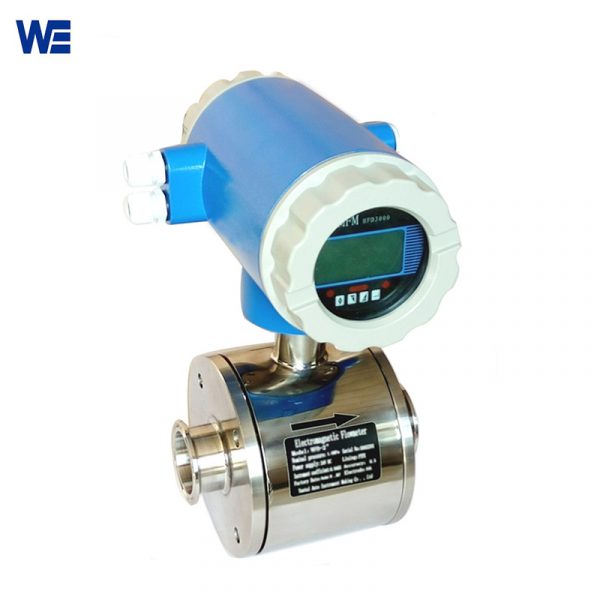

Our company’s magnetic type flow meter is generally connected in the pipeline through the flange. Magnetic type flow meters generally use GB standard flanges for connection, but ANSI or JIS style flanges can also be made according to customers’ requirements. For food grade magnetic type flow meter we recommend using the tri-clamp form.
Magnetic type flow meter has many ways to output signal, such as current output signal, pulse output signal, GPRS output signal and so on. Both pulse and current need wiring. The wiring port is generally installed on the back cover of the sensor, and two wires need to be connected. GPRS may be more convenient to use, but GPRS needs to have a signal receiving device and a signal transmitting device. Compared with the magnetic type flow meter with other output methods, the magnetic type flow meter using GPRS will be more expensive in price, and the conditions that need to be met during use are more stringent.
| Connection | Pipe type: flange / special specifications |
| Insertion type: simple/ ball valve type | |
| Diameter | Pipe type: DN4-DN2000 |
| Insertion type: DN200-DN3000 | |
| Range | Standard range |
| Extended range | |
| Special range | |
| Accuracy | Pipe type: ±0.5%R/±1.0%R |
| Plug-in type: ±2.5%R | |
| Communication protocol | No communication output |
| MOSBUS protocol | |
| Output method | Frequency output |
| Equivalent pulse | |
| Digital pulse | |
| Four-wire 4-20mA | |
| Power supply mode | DC24V |
| AC220V | |
| Lithium battery | |
| Housing | 304 stainless steel |
| Carbon steel | |
| Explosion-proof | Non-explosion-proof |
| Exd [ia] iaqIICT5 | |
| Lining | Neoprene |
| Polyurethane rubber | |
| Polytetrafluoroethylene | |
| Teflon | |
| PFA | |
| Electrode | AISI316L |
| Hastelloy-B | |
| Hastelloy-C | |
| Titanium | |
| Tantalum | |
| Platinum | |
| Tungsten Carbide | |
| Accessory Options | One-piece |
| External keypad integrated | |
| Split type | |
| Submersible split type |
Flow Range Table of Electromagnetic Flow Meter :
| Nominal Diameter | Range | Nominal Diameter | Range | Nominal Diameter | Range |
| (mm) | (m 3 /h) | (mm) | (m 3 /h) | (mm) | (m 3 /h) |
| DN10 | 0.14 ～ 1.40 | DN125 | 22.08～ 441.56 | DN700 | 692.37 ～13847.40 |
| DN15 | 0.32 ～ 6.36 | DN150 | 31.79～ 635.85 | DN800 | 904.32～ 18086.40 |
| DN20 | 0.57～ 11.30 | DN200 | 56.52 ～ 1130.4 | DN900 | 1144.5～ 22890.60 |
| DN25 | 0.88～ 17.66 | DN250 | 88.31 ～ 1766.25 | DN1000 | 1413.0～ 28260.00 |
| DN32 | 1.45～ 28.94 | DN300 | 127.17～ 2543.40 | DN1200 | 2034.7～ 40694.40 |
| DN40 | 2.26～ 45.22 | DN350 | 173.09～ 3461.85 | DN1400 | 2769.4～ 55389.60 |
| DN50 | 3.35～ 70.65 | DN400 | 226.08～ 4521.60 | DN1600 | 3617.2～ 72345.60 |
| DN65 | 5.97～ 119.40 | DN450 | 286.31～ 5722.65 | DN1800 | 4578.1～ 91562.40 |
| DN80 | 9.04～ 180.86 | DN500 | 353.25～ 7065.00 | ||
| DN100 | 14.13 ～ 282.60 | DN600 | 508.68～ 10173.6 |
1) What is the features of Lining Material of magnetic flow meter ?
| Lining Material | Short Name | Specification | Temperature | Medium |
| Neoprene | CR | Medium wear resistance, resistance to general low concentration of acid and alkali salt solution corrosion | 0 ~ + 65 ℃ | Tap water, industrial water, sea water |
| Polyurethane (pu) | PU | Excellent wear resistance, acid and alkali resistance | 0 ~ + 65 ℃ | Pulp, pulp |
| Teflon | F4
(PTFE) |
Stable chemical properties, can withstand boiling hydrochloric acid, acid, aqua regia, strong alkali corrosion | – 25 ~ + 140 ℃ | Corrosive acid and alkali solution |
| Polyperfluoroethylene propylene teflon (FEP) | F46
(FEP) |
The chemical properties are equal to F4, and the compressive and tensile strength are superior to F4 | – 25 ~ + 120 ℃ | Corrosive acid and alkali salt solution |
| Soluble ptfe | PFA | Chemical performance is equal to F46, compression and tensile strength is better than F46 | 0 ~ + 180 ℃ | Corrosive acid and alkali salt solution |
| Alumina ceramics | Ceramic | Excellent wear resistance (more than ten times that of polyurethane and rubber), excellent corrosion resistance (suitable for the measurement of strong corrosive fluids such as mixed acid and aqua aqua, but not suitable for high concentration of alkaline, phosphoric acid, hydrofluoric acid and cyanide compounds), extremely high hardness and finish, excellent heat resistance and heat shock resistance. | 0~+250℃ | Especially suitable for high temperature, high pressure grout, food hygiene and corrosive fluid medium measur |
2) What is “GPRS” output of Magnetic Type Flow Meter ？
A best-effort packet-switching technology for wireless and cellular network communication services is called General Packet Radio Services (GPRS).
Our company’s mag flow transmitter supports telemetry system, but telemetry system can only be installed on battery-type mag flow transmitter.
