Magnetic-Inductive Flow Meter
Magnetic-inductive flow meter is a precision measuring instrument that measures the flow and flow rate of a single conductive liquid or a mixture of multiple conductive liquids,high accuracy 0.5% and stable measuring performance , we have been exporting to more than 30 countries .

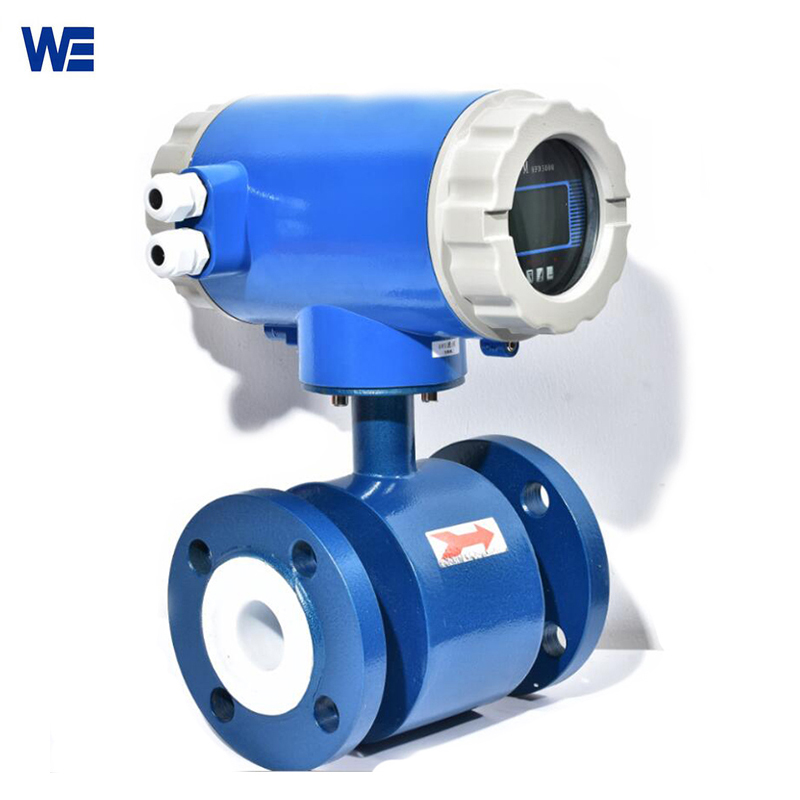

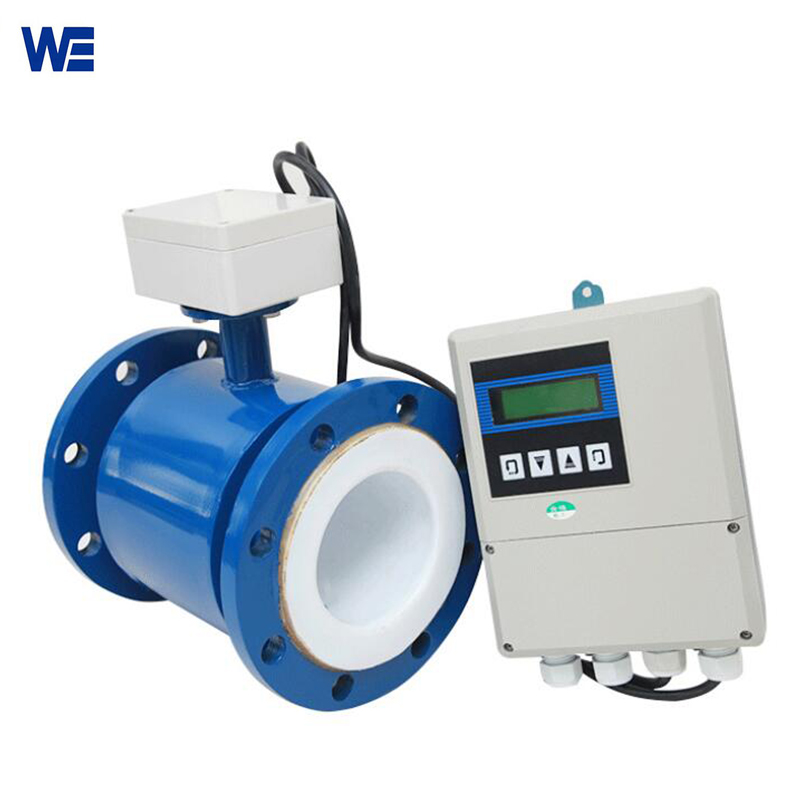

The converter is a significant component of the magnetic-inductive flow meter. The converter is mostly found on the upper portion of the sensor in an integrated electromagnetic flowmeter, but it is not connected to the sensor in a separate electromagnetic flow meter. For some occasions, a separate magnetic-inductive flow meter may be more convenient.
- Product name: Magnetic-Inductive Flow Meter
- Type: Separate Electromagnetic Flow Meter
- Outer Shell: carbon Steel 304
- Accuracy: ±0.5% reading value
- Repeatability: ≤ 0.1%
- Connection: Flange(GB/ T9113.1-2000)
- Liner: PTFE (DN10-DN3000)
- Velocity Range: 0.5-10m/s
- Minimum Electric Conductivity: 50µS/cm (liquid)
- Power: AC220V; DC24V
- Electrode: AISI 316L
Flow Range Table of Magnetic-Inductive Flow Meter :
| Nominal Diameter | Range | Nominal Diameter | Range | Nominal Diameter | Range |
| (mm) | (m 3 /h) | (mm) | (m 3 /h) | (mm) | (m 3 /h) |
| DN10 | 0.14 ～ 1.40 | DN125 | 22.08～ 441.56 | DN700 | 692.37 ～13847.40 |
| DN15 | 0.32 ～ 6.36 | DN150 | 31.79～ 635.85 | DN800 | 904.32～ 18086.40 |
| DN20 | 0.57～ 11.30 | DN200 | 56.52 ～ 1130.4 | DN900 | 1144.5～ 22890.60 |
| DN25 | 0.88～ 17.66 | DN250 | 88.31 ～ 1766.25 | DN1000 | 1413.0～ 28260.00 |
| DN32 | 1.45～ 28.94 | DN300 | 127.17～ 2543.40 | DN1200 | 2034.7～ 40694.40 |
| DN40 | 2.26～ 45.22 | DN350 | 173.09～ 3461.85 | DN1400 | 2769.4～ 55389.60 |
| DN50 | 3.35～ 70.65 | DN400 | 226.08～ 4521.60 | DN1600 | 3617.2～ 72345.60 |
| DN65 | 5.97～ 119.40 | DN450 | 286.31～ 5722.65 | DN1800 | 4578.1～ 91562.40 |
| DN80 | 9.04～ 180.86 | DN500 | 353.25～ 7065.00 | ||
| DN100 | 14.13 ～ 282.60 | DN600 | 508.68～ 10173.6 |
