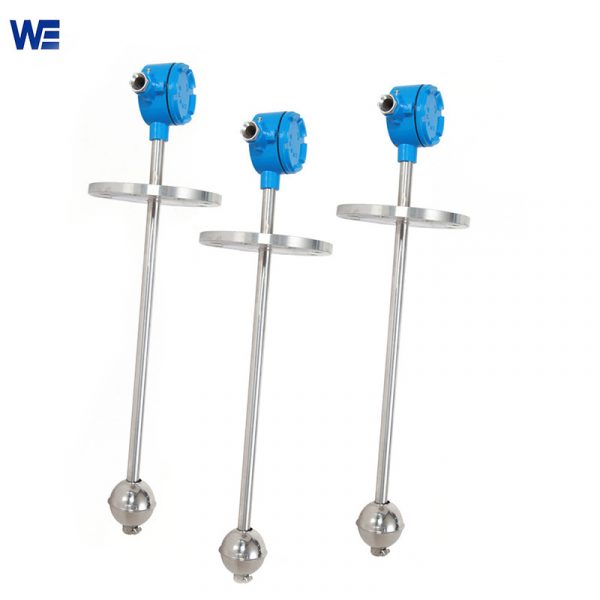

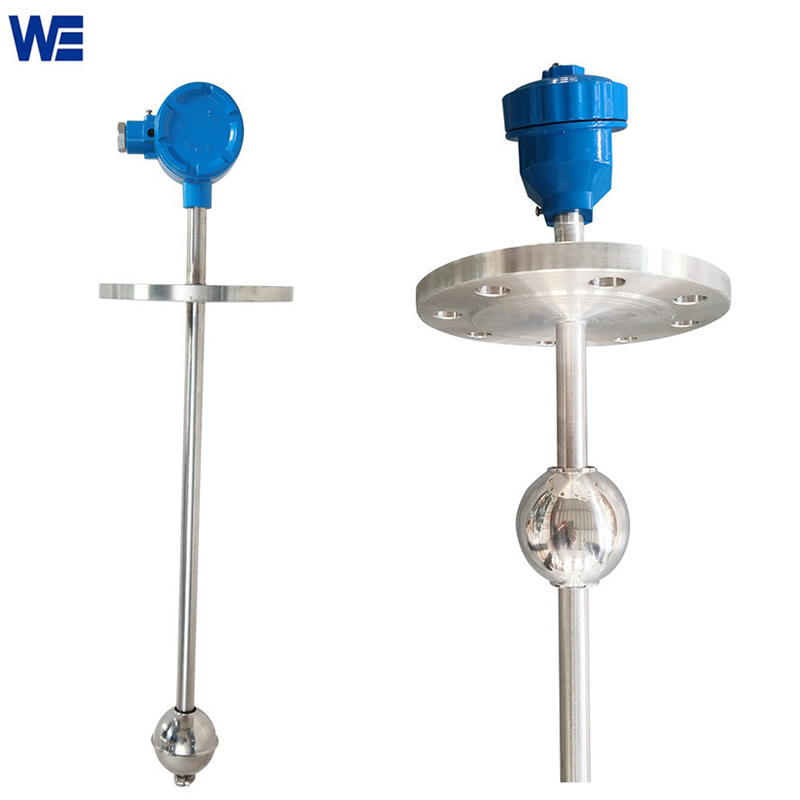

Magnetic Float Type Level Transmitter
Wepower Electronic magnetic float type level transmitter is a device for real-time measurement of liquid level information. Wepower float type level transmitter is a vertical mounted level measurement that is commonly installed in the tank.
Wepower Electronic Magnetic Float Type Level Transmitter has the advantages of simple structure, convenient debugging, good reliability and high precision. The liquid level is shown in real time using the magnetic float type level transmitter.
The magnetic float type level transmitter is mainly composed of four parts: liquid float, transmitter and precise electrical parts. The indication is novel, the reading is intuitive and eye-catching, and the direction of the LCD observation indicator can be changed according to the user’s needs. Magnetic float type level transmitters come in a number of designs. Usually, this type magnetic float level gauge is installed on top of the tank/container. The wide range of process connection choices and compatibility with corrosive conditions make Wepower Electronic magnetic float-type level transmitters stand out.
Magnetic float type level transmitter application:
▲Waste water treatment
▲Medical/chemical
▲ Storage liquid tanks
▲Sanitary beverage process
▲ Environmental Industry
| Product | Magnetic float type level transmitter |
| Model number | WP663 |
| Measuring range | 30-600cm |
| Measuring media | Liquid |
| Power supply | 24VDC |
| Output | current signal / current signal with HART |
| Accuracy | about ±5mm |
| Wetted material | SS314, 316 ; PTFE/PP and so on |
| Process connection | flange method , thread method, clamp method |
| Medium density | ≥0.5g/cm3 |
| Temperature | normal temperature and high temp type |
| Working pressure | ≦10Mpa |
| Explosion-proof grade | Yes |
| Manufacturer | CHINA |
| Quality | 1 yr. |
| Package | Carton |
