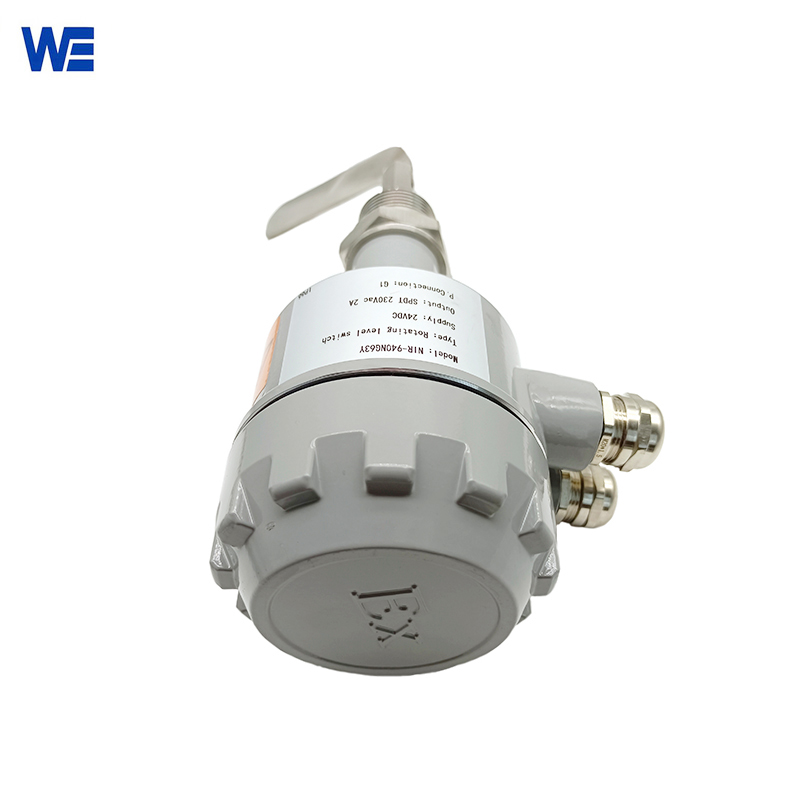

Level Paddle Switch

Features And Advantages Of Level Paddle Switch:

Level  Paddle Switch is a type of level switch that is used for industrial solid substance measuring. Level  paddle switches of high quality and low cost are commonly installed in medium and large tanks. WZP20 level paddle switch has a simple internal structure.

WZP20 Level Paddle Switches are usually used with thread connection. The level paddle switch is impervious to electromagnetic waves and has a very high level of interference prevention. The spinning paddle level switch is unaffected by the shape, specific gravity, temperature, humidity, concentration, etc. of the material to be monitored. Wepower’s WZP20 level paddle switch has an RPM range of 1 to 5 RPM and is composed of strong, shock-resistant stainless steel.

How To Adjust The Torque Of Wepower WZP20 Level Paddle Switch?

• The usefulness of torque adjustment is often related to the specific gravity of the measured medium. When the specific gravity of the measured medium is small, the spring torque can be adjusted weaker, which helps to enhance the sensitivity of the level paddle sensor.
• The user can open the junction box, take out the end of the torsion spring near the hole, and insert it into the corresponding hole as needed (the hole near the terminal block has the weakest torque).
• We do not recommend users to change the torque at will. If you need to adjust, please contact our after-sales service personnel.

To see the comparison of different RPM of Rotary paddle switch, please click on the picture above.
