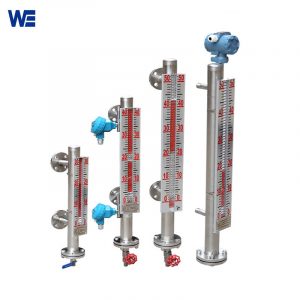

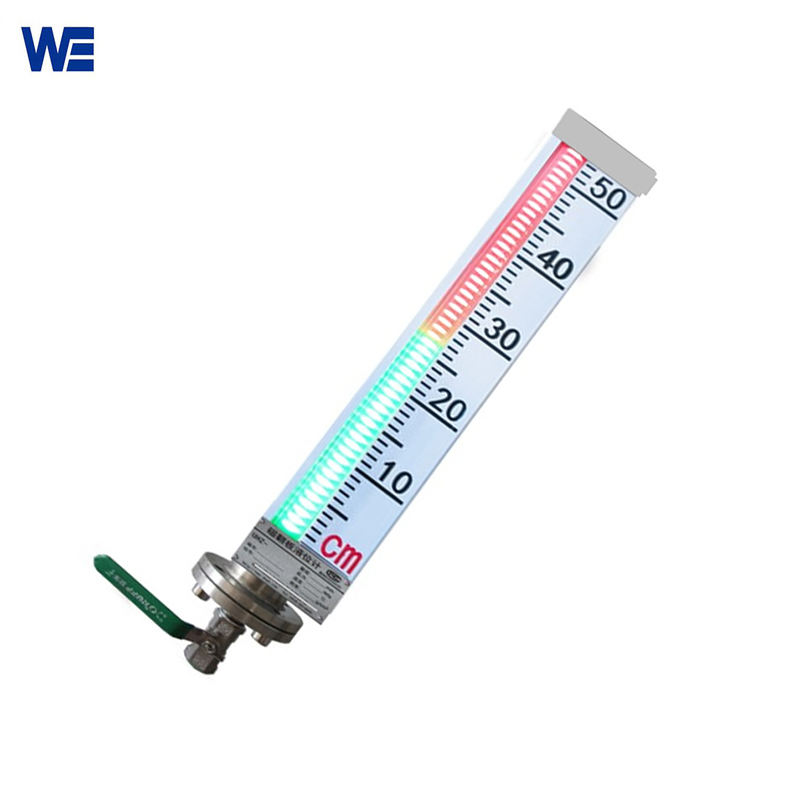

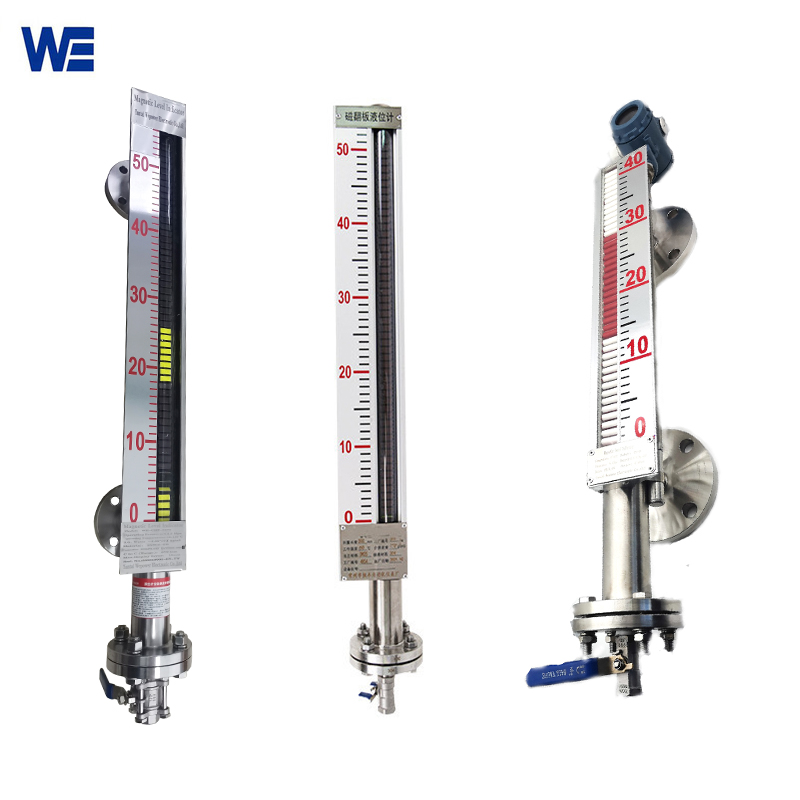

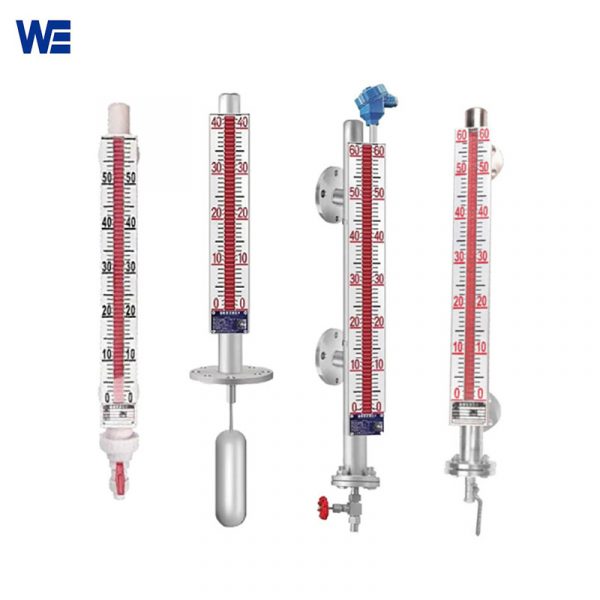

Level Gauge Magnetic Type
Level Gauge Magnetic Type is usually side mounted and are connected with two flanges. And has a high cost performance, If you are in need of magnetic tank level indicators, contact us quickly!
What’s The working Principle Of Level Gauge Magnetic Type?

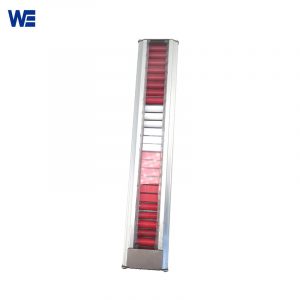

Level Gauge Magnetic Type is usually side mounted and are connected with two flanges. The level gauge magnetic type is equipped with a float in the catheter, the panel is usually red and white two colors, the working principle of the level gauge magnetic type is a physical reaction, when the liquid level in the measured container rises and falls, the float in the main tube of the liquid level meter also rises and falls, and then drives the red and white flip column to turn 180° to show the liquid level change.
In addition, the Level Gauge Magnetic Type can also be equipped with a remote transmitter and alarm to convert the liquid level signal into an electrical output for remote monitoring and control. At the same time, according to user needs, the upper and lower limit switch output can be set to achieve automatic control or alarm function of liquid level.
| Product | Float type level indicator |
| Model number | WP/ZP- UHZ |
| Working principle | Magnetic coupling effect |
| Measuring media | liquid like water, solutions |
| Measuring range | 300-13000mm |
| Accuracy | 10mm |
| Working pressure | 1.0/1.6/2.5/4.0/6.0/16Mpa |
| Working temperature | -20~450°C |
| Medium Viscosity | ≤0.5Pa.S |
| Medium density | ≥0.45g / cm 3 |
| Relative Humidity | 10% to 90% |
| Environmental Pressure | 86KPa ~ 106KPa |
| Wetted materials | stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc. |
| Process connection | flange connection, DN25 by default. |
| Power supply | DC24V or AC220V |
| output | Mechanical type, output type(4-20mA+HART) |
| Display | With or Without LCD |
| Installation type | Side mounted or top mounted |
| Protection level | IP65 |
| UHZ Magnetic Liquid Level Meter | ||||||||
| / | A Side Mounted B Top Mounted |
Installation Type | ||||||
| / | 1 Basic Type 2 Anti-corrosive 3 Jacket Type 4.High Pressure &Pressure |
Type | ||||||
| / | C 0.6MPa D 1.6MPa E 2.5MPa F 4.0Mpa G 6.4Mpa H More than 6.4MPA |
Working Pressure | ||||||
| / |
|
Op tional | ||||||
| L= Measuring Range (For Side Mounted) | / | |||||||
| / | L1=Measuring Range (Top mounted 0～4000mm) | / | ||||||
| / | Medium Density ρ(g/cm3) | / | ||||||
| / | / | |||||||
| A | 1 | D | 1 | L=2500mm | L1=3000mm | ρ=0.8g/cm3 | Example | |
