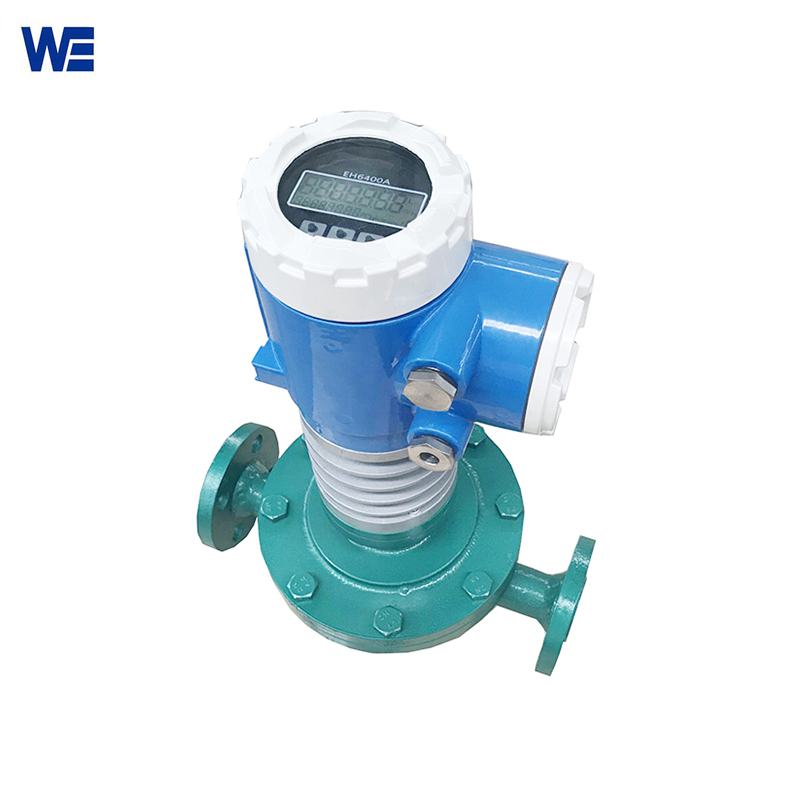

LC Type Gear Meter

LC type gear meter refers to a “liquid controls gear meter.” The LC type gear meter is an accurate and long-lasting volumetric flow meter. The LC type gear meter’s unique internal design not only reduces the cost of system pumps, but also improves the credibility of the measurement results. The LC type gear meter is primarily used to measure asphalt, heavy oil, kerosene,etc.

Category: Oval Gear Flow Meter

Description

There are various types of LC type gear flow meters, including high temperature LC type gear flow meters , gear flow meters suitable for room temperature. The common measuring accuracy of our LC type gear meter is ±0.5%. The materials of LC type gear meter are stainless steel 316,stainless steel 304, cast iron and cast steel, etc. The price will vary depending on the body material, caliber, display options,viscosity ,accuracy etc .

1)What is the correct installation method of LC type gear meter?

In General, the installation direction of the LC type gear meter is very important. The correct installation direction means that the top of the LC type gear meter (display dial) should be vertical to the ground after installation. In other words, this way of installation ensures that the liquid from the gear meter inlet is evenly passed through the gear. If the installation direction is wrong, it may cause the blockage of the gear meter.

2) How does an LC type gear meter operate?

The principle of operation of a common mechanically driven LC type gear meter is to record the limited space discrepancy between liquid enters the measuring chamber and liquid exists the measuring chamber. The space discrepancy and the number of rotations are used to calculate the cumulative flow of the LC type gear meter. The liquid travels around the crescent-shaped chambers formed by the rotors’ shaft rotation.

The working principle of the LC type gear meter with LCD display: the measured space discrepancy and the speed of the gear rotation are transmitted to the counting mechanism or the transmitter, and then the gear meter will display the total amount and instantaneous flow of the liquid flowing in the pipe.
