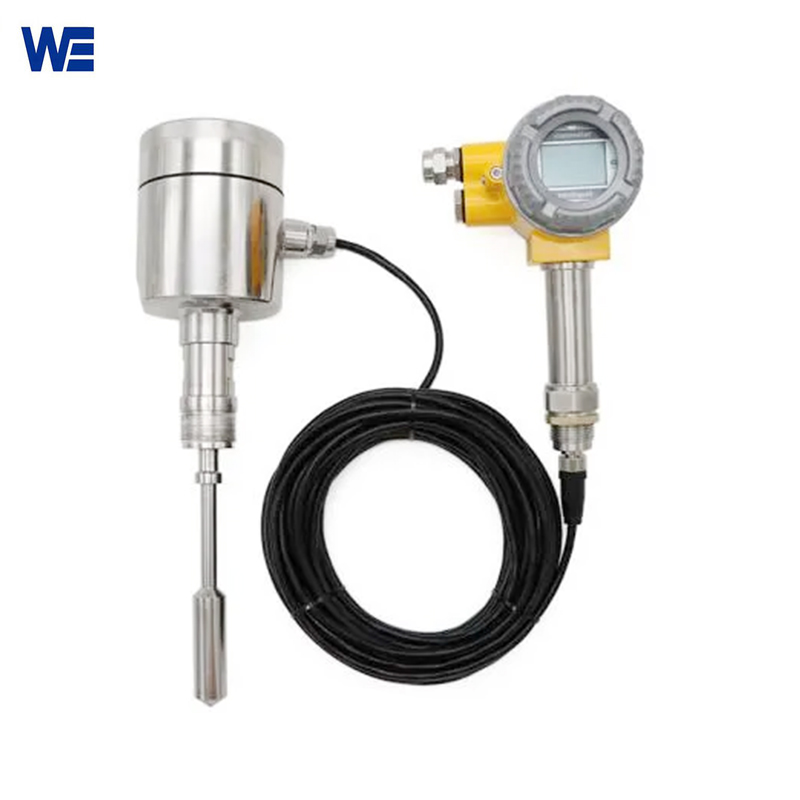

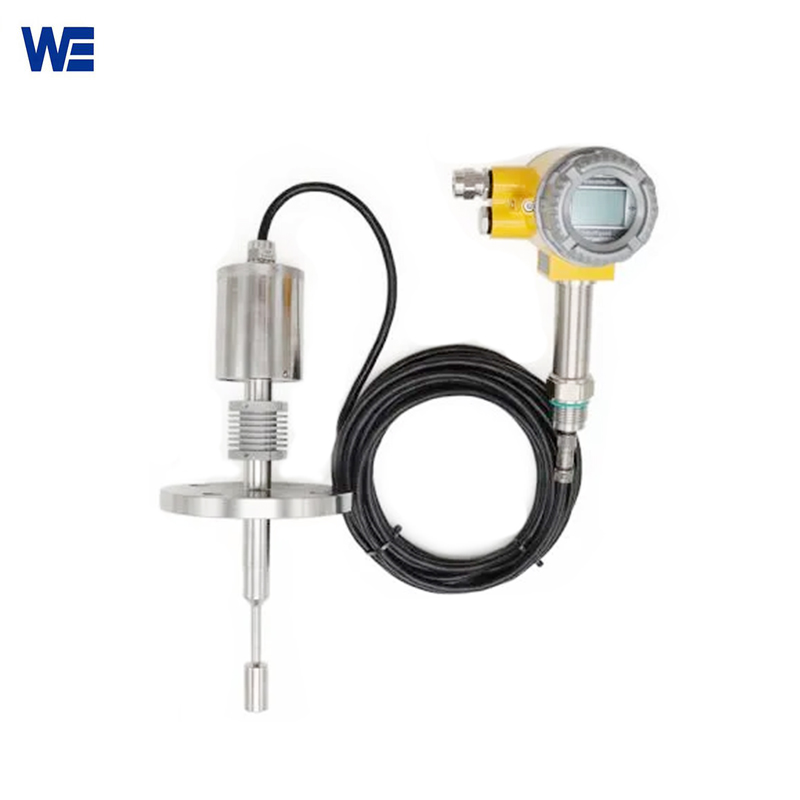

WPX401 Inline Process Viscometer is compact real-time continuous detecting instrument for viscosity,it is In-Line and In-Tank viscometers for various process industries for both pipelines and tanks .Our inline process viscometer is your good choice for viscosity management for the consistent product quality and effective productions.

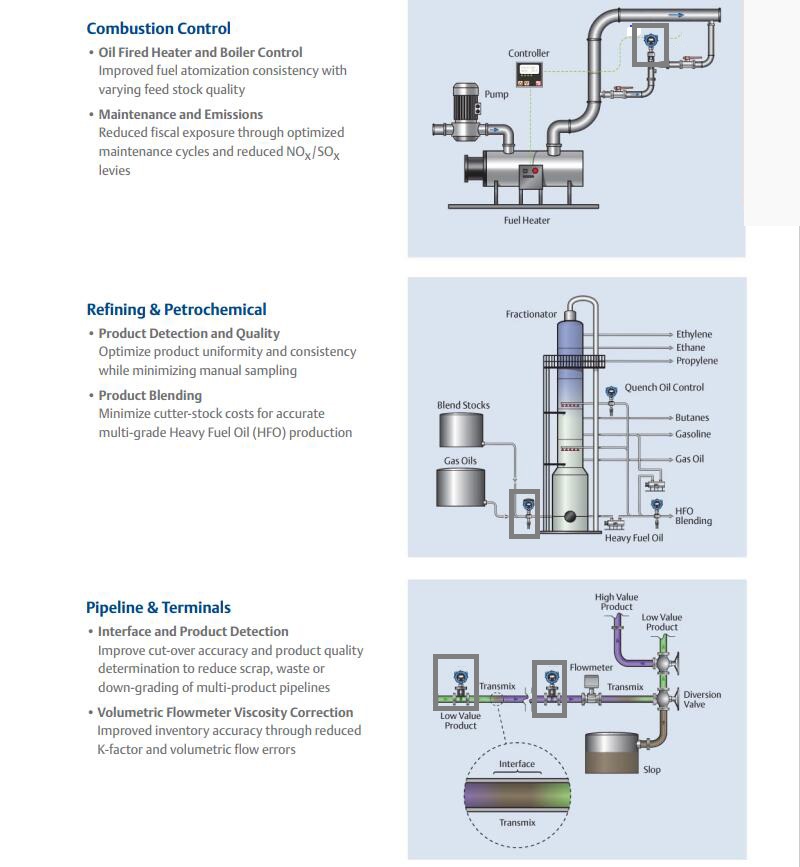

WPX401 Inline Process Viscometer is compact design real-time continuous detecting process instrument for viscosity and density ,it is In-Line and In-Tank viscometers for process Industries ,such as numerous media, liquid medications, muck, sulfuric and hydrochloric acids, petroleum, asphalt, paint,oil fired heater and boiler control, etc. Our inline process viscometer is good choice for viscosity management to help optimize production process for offering the uniform product quality and efficient production .
What are your WPX401 In-line Process Viscometer advantages?
The process viscometer that operates in real time is very accurate and dependable. It can accurately monitor viscosity levels, guaranteeing that products consistently fulfill the required standards. Furthermore, because of their excellent cost-performance, our viscosity meter products are highly valued by clients worldwide.
Product | In-line Process Viscometer /Micro Motion Viscosity Meter |
Viscosity Measuring Range | 0-20,000cP |
Viscosity Accuracy | ±0.2cP (0-10cP) then ±1%
Full scale of calibrated range max ±1cP (10-100cP), ±10cP (100-1000cP), ±125cP (1000-12,500cP) |
Temperature Accuracy | BS1904, DIN 43760 Class ‘B’ (±0.30 ±0.005 X T)°C |
Wetted material | SS316;PTFE;PFA; tantalum; Hastelloy C |
Housing Material | Die-casting aluminum/ Stainless Steel |
Safety Approvals | Explosion/Flame-Proof |
Process Connecting : | Flange, thread, tri-clamp |
Display | Two-line, LCD screen
Optical switch configuration |
Outputs | Standard: 4-20mA, HART, Modbus RS-485 |
Protection Class | Ingress Protection: IP66/67 |
Dimensions | 355 mm (h) x 163 mm (w) x 163 mm (d) (Typical short stem version) |
Weight (Typical) | 6.7 kg (15 lbs) |
