Hygienic Flow Meter Turbine Type
For ordering Hygienic flow meter of turbine type , user should collect such as the nominal diameter, operating pressure, operating temperature, flow range, the fluid category , whether require explosion-proof , and the surrounding condition.As this is applied in sanitary hygienic industry , user should consider the process connecting and whether the measuring fluids is clean with impurities or not?

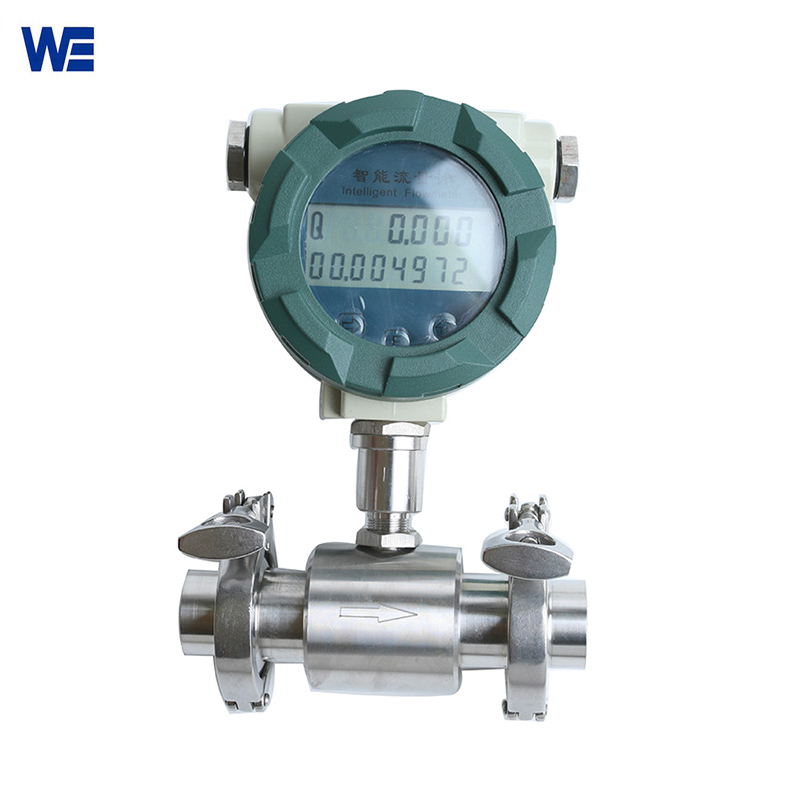

User should notice some tips when ordering turbine type Hygienic flow meter , the proper model specification should be chosen according to fluid’s nominal diameter, operating pressure, operating temperature, flow range, the fluid category and the surrounding condition. The anti-explosion type turbine flowmeter should be chosen when having explosion-proof demand and noticing strictly the explosion-proof classes. As this is applied in sanitary hygienic industry , user should consider the process connecting and whether the measuring fluids is clean or not , whether with impurities or not. Tri-clamp connecting is better sealing and easy to clean than thread and flange connecting for hygiene and health industry .
| Product Name | Turbine type flow meter |
| Measuring diameter | DN4-DN200 |
| Applicable media range | impurity-free, low viscosity, no strong corrosive liquid |
| Accuracy | 0.5% , 0.2% |
| Connection method | Tri-clamp flange, thread, |
| Medium temperature | -20°C~80°C |
| Nominal pressure | 1.6MPa,4.0MPa,6.3MPa,11MPa,15MPa,26MPa,42MPa |
| Precision class | 0.2, 0.5, 1.0, 2.5 |
| Signal output | Pulse, 4-20Ma, RS485, HART |
| Power supply | DC24V Meter head display 3.6V or DC24V+3.6V |
| Ambient temperature | -20°C~60°C |
| Relative humidity | 5%~90% |
| Meter body material | 304, 316L stainless steel |
| Protection class | IP65 |
| Explosion-proof grade | ExdIICT6Gb |
| Impeller material | 2Cr13 impeller |
| Pressure resistance grade | Duplex steel impeller |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Starting flow rate (m³/h) | Maximum pressure loss (KPa) |
| DN4 | 0.04-0.25 | 0.04-0.4 | 0.02 | 120 |
| DN6 | 0.1-0.6 | 0.06-0.6 | 0.05 | 80 |
| DN10 | 0.2-1.2 | 0.15-1.5 | 0.07 | 50 |
| DN15 | 0.6-6 | 0.5-5 | 0.35 | 35 |
| DN20 | 0.8-8 | 0.45-9 | 0.3 | 35 |
| DN25 | 1-10 | 0.5-10 | 0.4 | 35 |
| DN32 | 1.5-15 | 0.8-15 | 0.6 | 35 |
| DN40 | 2-20 | 1-20 | 0.6 | 35 |
| DN50 | 4-40 | 2-40 | 1 | 35 |
| DN65 | 7-70 | 5-70 | 4 | 25 |
| DN80 | 10-100 | 7-100 | 5 | 25 |
| DN100 | 20-200 | 10-200 | 8 | 25 |
| DN125 | 25-250 | 13-250 | 10 | 25 |
| DN150 | 30-300 | 15-300 | 12 | 25 |
| DN200 | 80-800 | 40-800 | 20 | 25 |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Conventional connection |
| DN4 | 0.04-0.25 | 0.04-0.4 | Threaded connection 6.3MPa |
| DN6 | 0.1-0.6 | 0.06-0.6 | |
| DN10 | 0.2-1.2 | 0.15-1.5 | |
| DN15 | 0.6-6 | 0.5-5 | |
| DN20 | 0.8-8 | 0.45-9 | |
| DN25 | 1-10 | 0.5-10 | |
| DN32 | 1.5-15 | 0.8-15 | |
| DN40 | 2-20 | 1-20 | |
| DN50 | 4-40 | 2-40 | Flange connection 4.0MPa |
| DN65 | 7-70 | 5-70 | Flange connection 1.6MPa |
| DN80 | 10-100 | 7-100 | Flange connection 1.6MPa |
| DN100 | 20-200 | 10-200 | Flange connection 1.6MPa |
| DN125 | 25-250 | 13-250 | Flange connection 1.6MPa |
| DN150 | 30-300 | 15-300 | Flange connection 1.6MPa |
| DN200 | 80-800 | 40-800 | Flange connection 1.6MPa |
| Accuracy level | 0.5 | 1.0 |
All our LWGY turbine flow meter 100% checked and calibrated before shipment to ensure the accuracy, you can ask us to provide you the factory testing report paper together with the turbine flow meter. On our website, you may find more precise instruments and are invited to purchase them.
