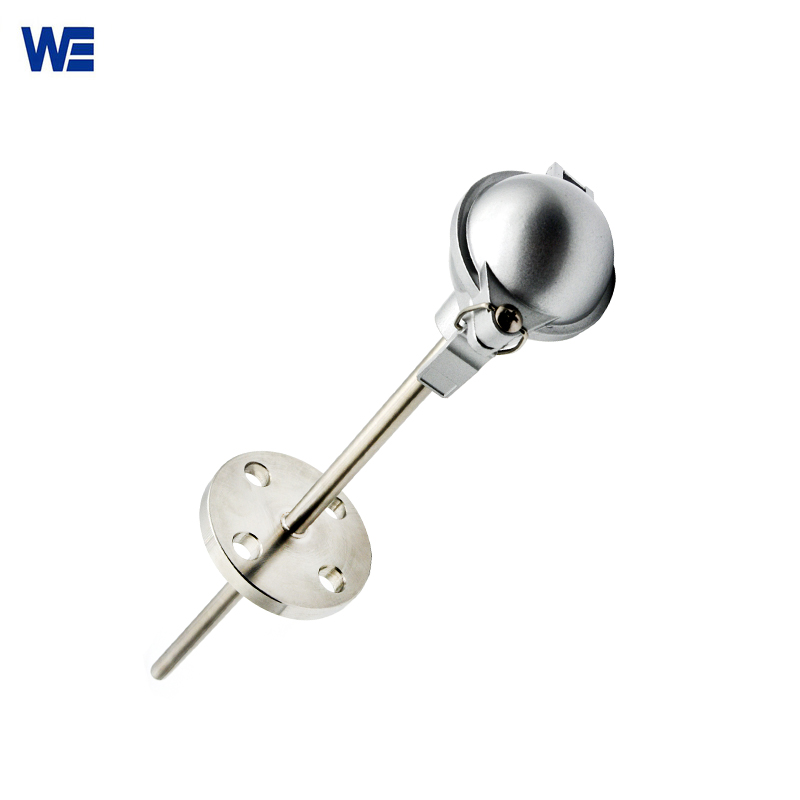

High Temperature Thermocouple Sensor
High temperature thermocouple sensors produced by Wepower Electronic are used in order to measure extreme high temperatures. Wepower Electronic is your unquestionable choice.
Where Are High Temperature Thermocouple Sensor Used?
High Temperature Thermocouple Sensors are used with extremely high process temperatures up to a maximum of 1,700 °C . For example, in blast furnaces, hot blast stoves, in waste incineration or in the glass, porcelain and ceramics industries. It is also an indispensable temperature device for oil refineries, high-pressure polyethylene, etc.
Features:
- Quick Response
- Long-lasting Heat Resistance
- Millisecond Response
- Lead length can be customized on demand
Parameters:
| Product Name | High Temperature Thermocouple Sensor |
| Explosion-proof grade: | d∥BT4, d∥CT5 |
| Process Connecting | Flange 900(PN15)~2500LB(PN40)RJ
Flange Standard : GB/ANSI/DIN/JIS |
| Electrical interface | M20x1.5, NPT1 / 2 |
| Nominal pressure | 15-40MPa |
| Measuring range | 0~1300 degrees Celsius（0-1100℃for long time usage） |
| Protecting tube material | 1Cr18Ni9Ti /SS304/SS316/SS316L/SS310S/ |
| Thermocouple Wire Dia | 2mm/2.5mm (Can be customized ) |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |
Selection Table of Protection Tube
| Material | Operating temperature ℃ | Features and uses |
| 1Cr18Ni9Ti | -200 – 800 | High temperature corrosion resistance, usually used for general heat-resistant steel |
| 304 | -200 – 800 | Low carbon content, good intergranular corrosion resistance, usually used as general heat-resistant steel |
| 316 | -200 – 750 | Low carbon content, good intergranular resistance, usually used as heat-resistant steel |
| 316L | -200 – 750 | Ultra low carbon content, good intergranular corrosion resistance, usually used as heat-resistant steel |
| 310S | -200 — 1000 | High temperature oxidation resistance, corrosion resistance, usually used as heat-resistant steel |
| GH3030 | 0 – 1100 | Nickel base superalloy steel, with excellent oxidation resistance and corrosion resistance, is usually used as heat-resistant steel |
| Model | Indexing number | Temperature measurement range ℃ | Thermal response time | Protective tube material | Specification Lxl |
| WRNG-430 WRN2G-430 | K | 0-800 | < 180S | 1Cr18Ni9Ti | 380×150 430×200 480×250 530×300 580×350 630×400 680×450 |
| WREG-430 WRE2G-430 | E | 0-600 | |||
| WRNG-440 WRN2G-440 | K | 0-800 | |||
| WREG-440 WRE2G-440 | E | 0-600 |
