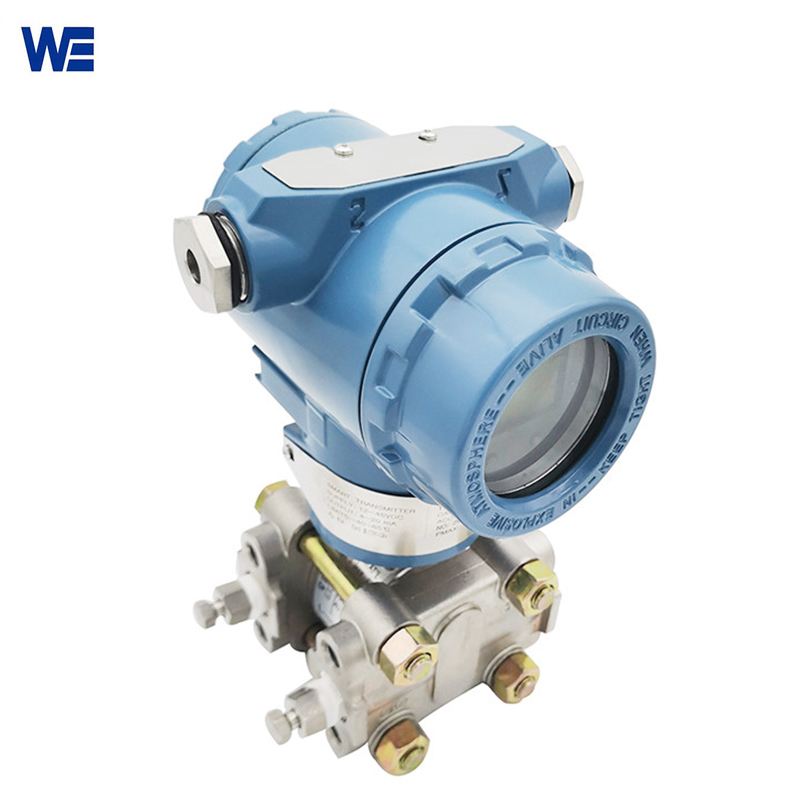

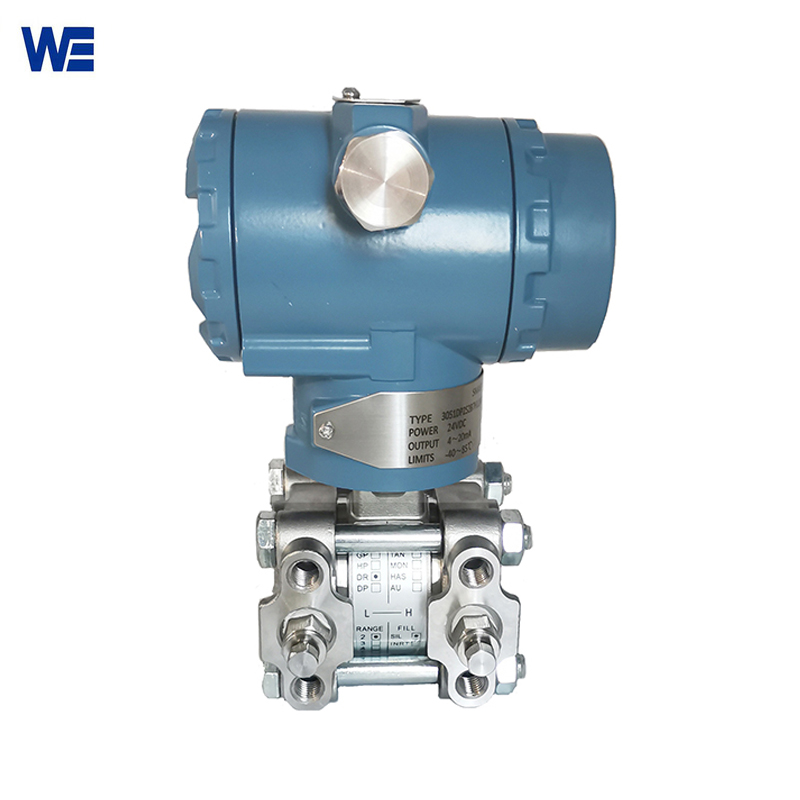

High Accuracy Pressure Transmitter
High Accuracy Pressure Transmitters are designed to provide accurate pressure or level measuring for industrial tanks , widely used in applications such as automotive manufacturing, oil and gas production, and aerospace engineering.
High Accuracy Pressure Transmitter is the most commonly used sensor in industrial practice. It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemicals, oil wells, electric power, and ships. , machine tools, pipelines and many other industries.According to the different measurement media, it can be divided into dry gas, gas liquid, highly corrosive liquid, viscous liquid, high temperature gas liquid, etc. Correct selection according to different media will help extend the service life of the transmitter.
WE3051 series high accuracy pressure transmitters are from the dust-free purification workshop in accordance with high standards of process production and technology.Another feature is that our WE3051 series pressure transmitter has the function of self-diagnosis and remote diagnosis.
| Sensor Type | Smart Differential /Pressure Transmitters – |
| Accuracy | ±0.1-0.2% |
| Medium | Liquids, steam and gas |
| Stability | 0.2% |
| Measuring Range | 0~1.5, 0~7.5, 0~37.4, 0~186.8, 0~690, 0~2068 |
| Explosion-proof Type | General type, Exd II C T6 Gb, Exia II C T6 Ga |
| Output Signal | 4-20mA DC, HART |
| Diaphragm Material | SS316L, Hastelloy C, SS316L |
| Diaphragm Fluids | Silicone oil, fluorine oil |
| Drain hole location | Rear face of process flange, Upper side of process flange, Lower side of process flange |
| Process Flange and Bolts | Stainless steel or carbon steel |
| Process flange O-ring material | Buna-N (NBR), Fluorine rubber (FKM) (not below -20 degrees Celsius) |
| Process Connections | NPT1/4 inner bolt |
| Static Pressure | 14Mpa (range2 =4Mpa; range3=7Mpa) /25Mpa/32Mpa |
| Power Supply | 9-32 V DC |
| Bracket | None, Tube mounted bend bracket (carbon steel), Wall mounted bracket (carbon steel), Tube mounted flat bracket (stainless steel), Wall mounted bracket (stainless steel), Tube mounted flat bracket (stainless steel) |
| Name | Specification code | Description | ||
| WE3051GP WE3051DP |
/ | Pressure Transmitter Differential Pressure Transmitter |
||
| / | 3 | (0.013-0.075)bar | ||
| 4 | (0.062-0.374)bar | |||
| 5 | (0.31-1.868)bar | |||
| 6 | (1.17-6.9)bar | |||
| 7 | (3.45-20.68)bar | |||
| 8 | (11.7-68.90)bar | |||
| 9 | (34.8-206.8)bar | |||
| 0 | (68.9-413.7)bar | |||
| Output Signal | E | analog type 4-20mA | ||
| S | 4-20mA, HART Protocol Digital Communication | |||
| Wetted Parts Material |
/ | Flange/Joint | Exhaust/Drain Valve | Diaphragm |
| 22 | Stainless Steel | Stainless Steel | 316L Stainless Steel | |
| 23 | Hastelloy C-276 | |||
| 24 | Tantalum | |||
| Mounting Bracket |
B1 | Tube-type Curved Bracket (Tube ODΦ50~Φ60) | ||
| B2 | Board- type Curved Bracket | |||
| B3 | Tube-type Straight Bracket (Tube ODΦ50~Φ60) | |||
| Display Header (optional) |
M2 | Linear Pointer Header (0~100% scale) | ||
| M3 | Square Root Instruction Header(0~100% scale) | |||
| M4 | LCD Header(0~100% linear display) | |||
| Process Flange | D | The liquid discharge / exhaust at the back | ||
| D1 | The liquid discharge / exhaust at the side top | |||
| D2 | The liquid discharge / exhaust at the side bottom | |||
| Flange Joint | J | “D-shaped” Joint with ” M20*1.5″ External thread | ||
| / | N | Joint with 1/2-14NPT taper pipe thread waist type | ||
Wepower Electronic is constantly in the lead for the greatest quality and service ! Contact us now!
