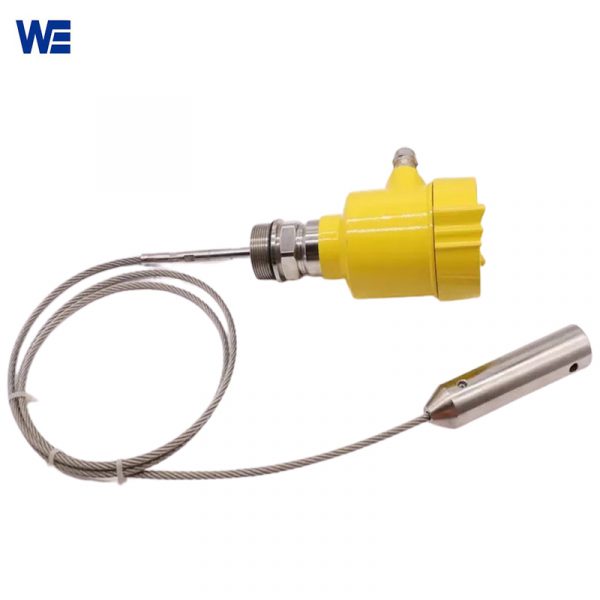

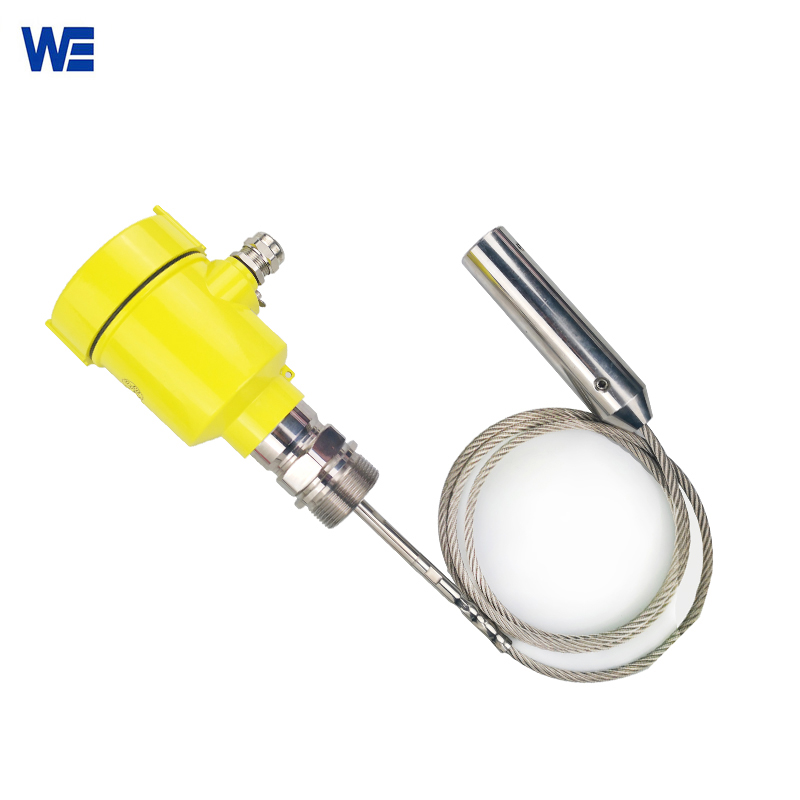

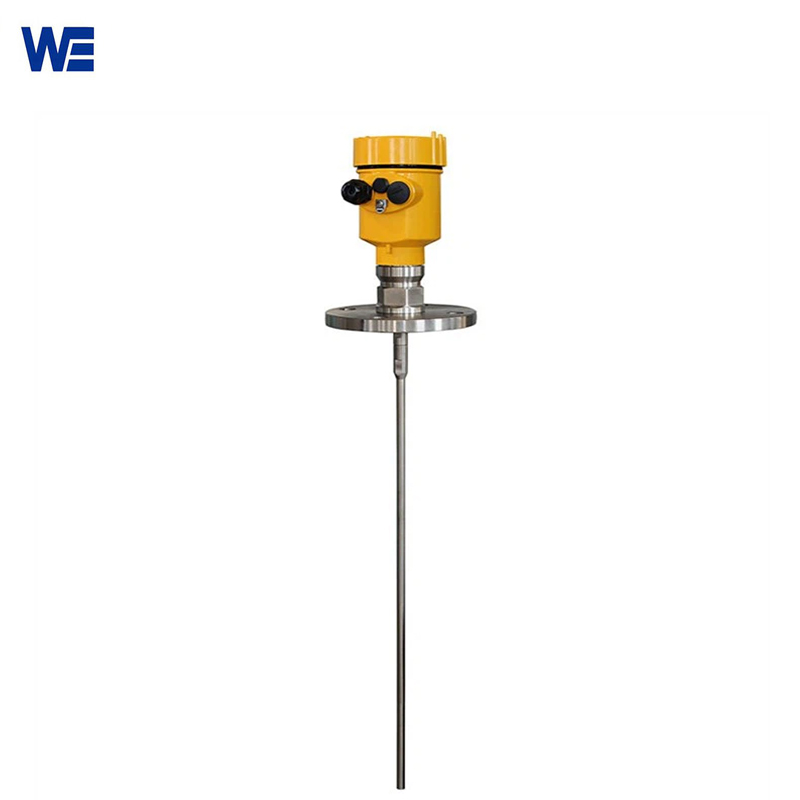

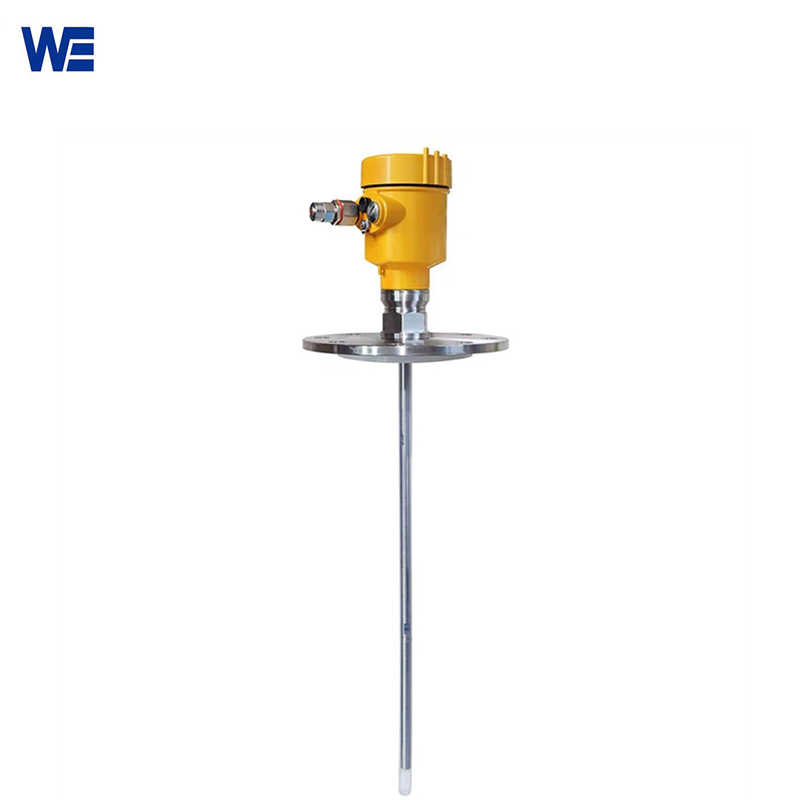

Guided Microwave Level Transmitter

   Guided Microwave Level Transmitters WERD-601 are rod radar level transmitters. Commonly,  guided microwave level transmitters are used to measure liquids. Long time solids measurements by rod radar level gauges which can damage the measuring rod.

   At the moment, our company’s  guided microwave level transmitter can only measure pure liquids and cannot measure oil-water mixtures. The guided microwave level transmitter of the rod type can be used to measure liquids with dielectric constants greater than or equal to 1.8. It is typically used to measure liquids with no visible impurities and a viscosity of less than 500cst.

Features Of Guided Microwave Level Transmitter:

• Applicable medium: liquid, solid powder
• Application: Liquid and solid powder measurement, complex process conditions
• Explosion-proof: Exia I IC T6 Ga/ Exd ia I IC T6 Gb
• Measuring range: 30m
• Antenna: single or single pole antenna
• Measurement accuracy: ± 2mm
•  Process temperature: (-40~250) °C
• Process pressure: (-0.1~4) MPa
• Signal output: (4~20) mA/HART
• Live display: four-digit LCD programmable
• Power supply: two-wire system (DC24V) / four wire system (DC24V/AC220V)
•  Process connection: thread / flange

Click here to view more level transmitters

Dimension:

    Guarantee strict factory inspection before shipment, and continuous after-sales service and                                                            technology support freely within 24 hours.
