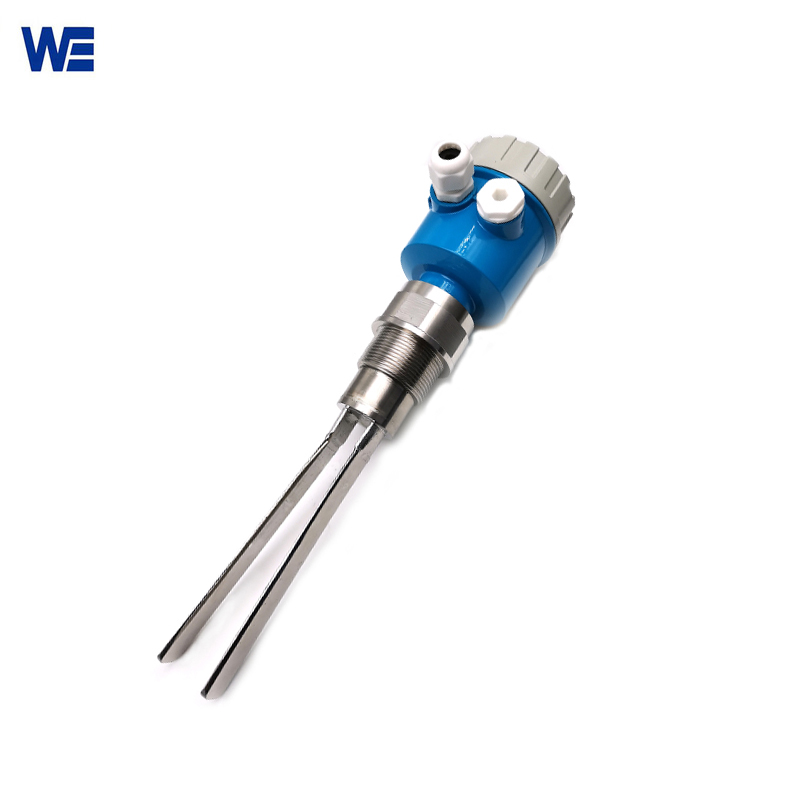

Fork Level Switch
Fork Level Switch adopts a liquid level switch designed on the principle of tuning fork. Use the natural frequency of the piezoelectric crystal detuning fork to vibrate.
Working Principle And Application Areas Of Fork Level Switch:
The Fork Level Switch utilizes a liquid level switch that is built around the tuning fork principle. Make the piezoelectric crystal detuning fork vibrate at its inherent frequency. Monitoring can be done continuously for this frequency shift. The liquid in the container is released downward and passes through the tuning fork when the product is used for low alarm applications, changing the natural frequency. The electrical component senses this change and changes the output state accordingly. The liquid in the container rises and makes contact with the tuning fork when the high alarm is activated, changing the output state. WPX series Fork Level Switch is widely used in fields such as, Solid materials: rice, milk powder, sugar, salt, laundry, dyes, cement, stone powder, plastic particles, etc; Liquid medium: water, mud, dye, oil, milk, wine, beverage, etc. And can detect the sediment in the liquid!
Provide Different Models And Specifications Of Fork Level Switch:

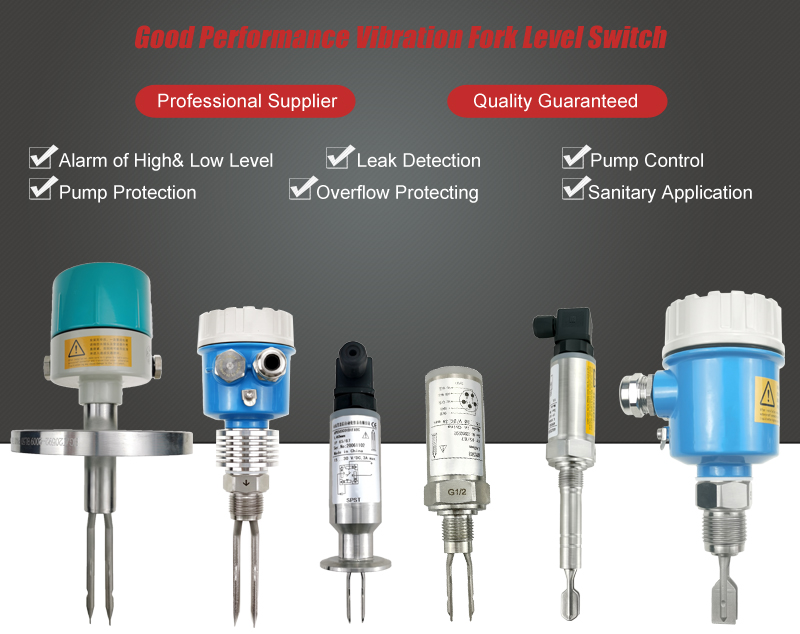

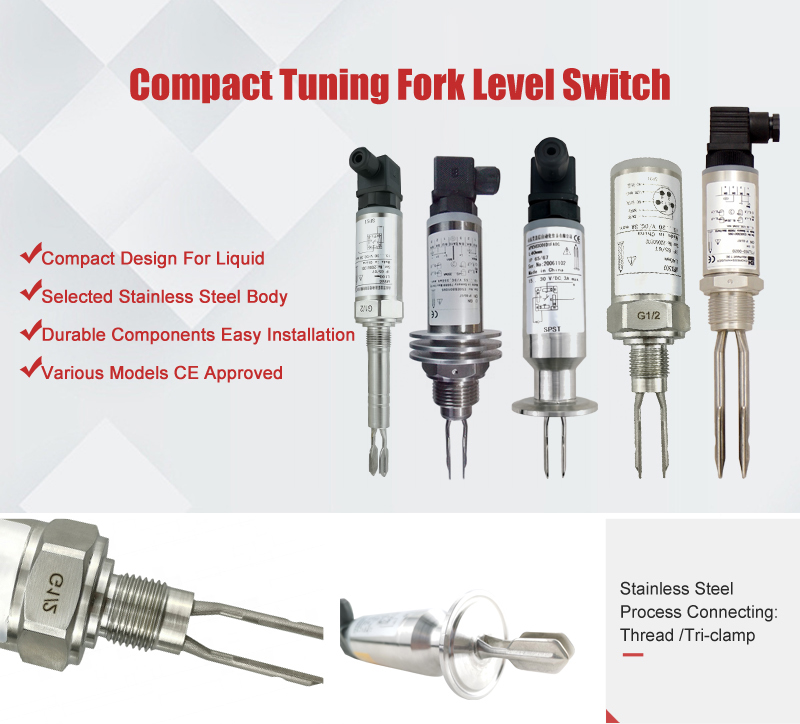

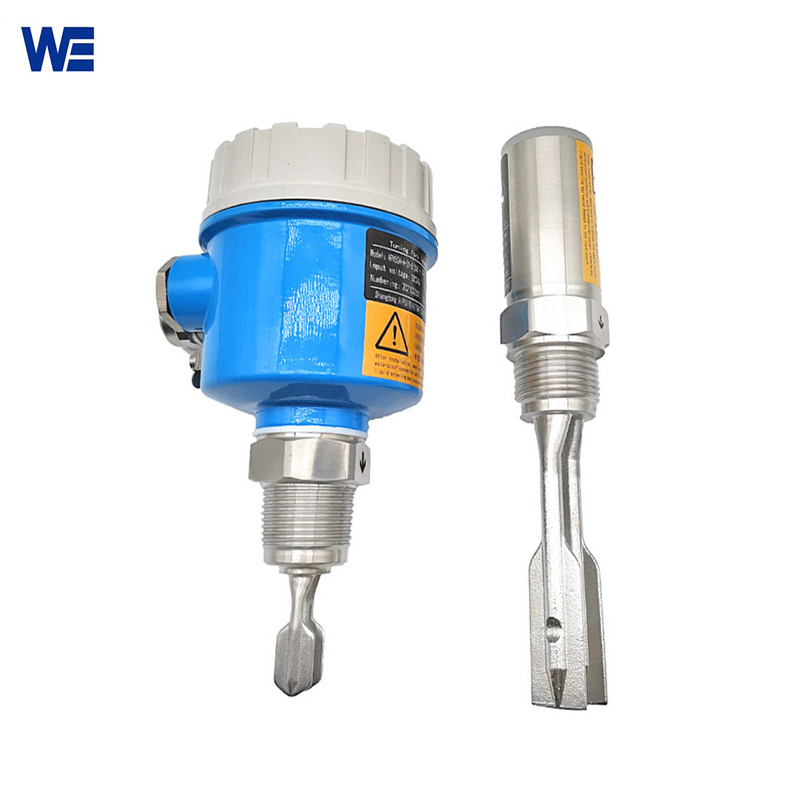

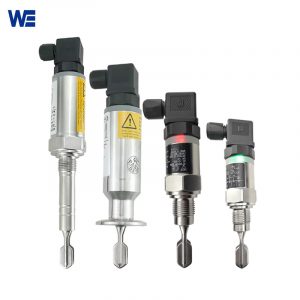

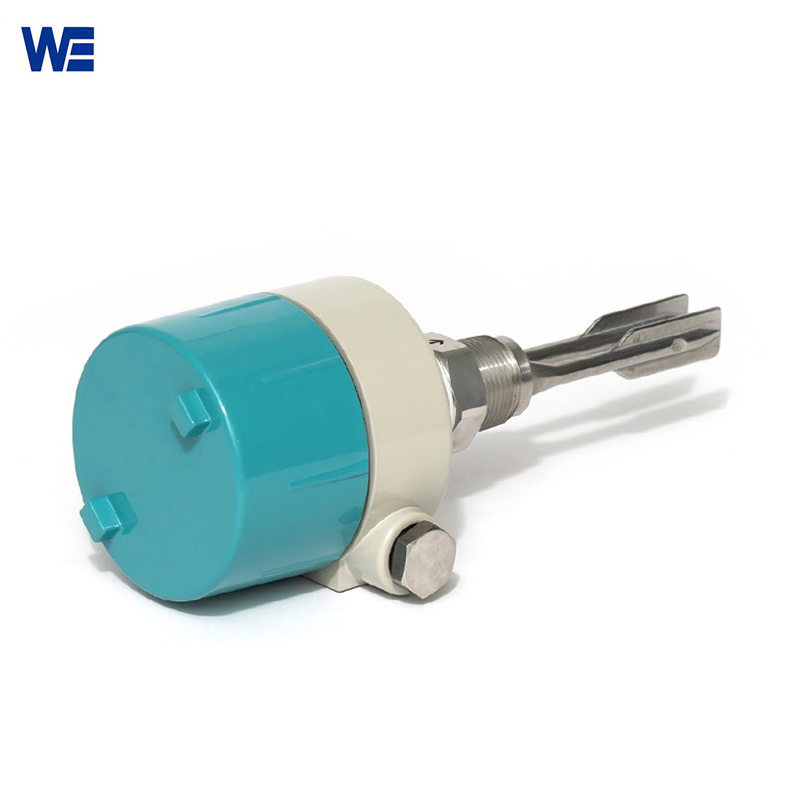

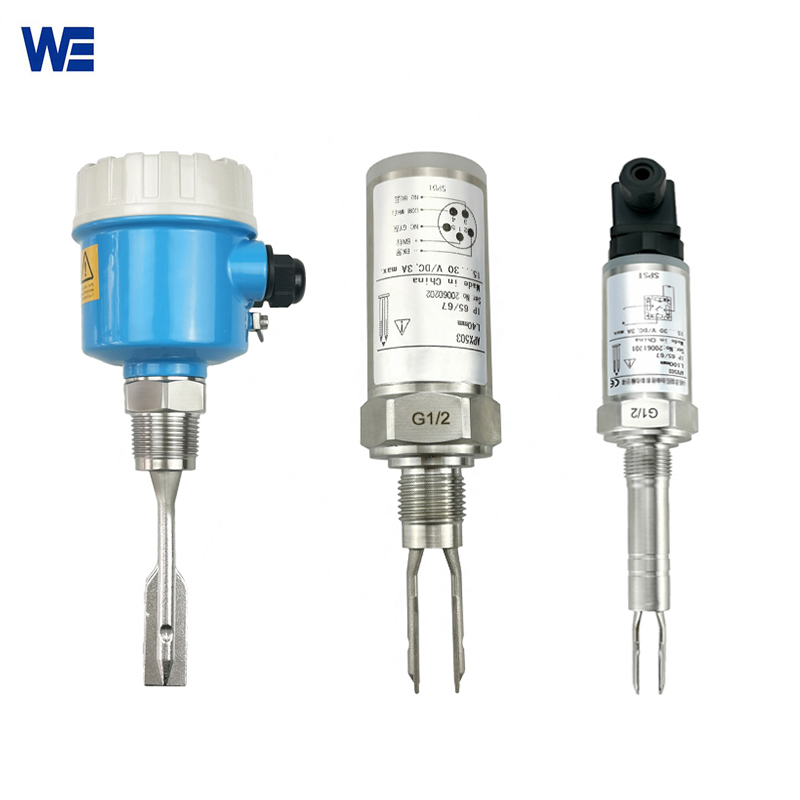

We can offer both the Aluminum Housing Type Fork Level Switch and Compact Stainless Steel Body Type Tuning Fork Level Switch , with different power supply options , different wetted parts length , different signal output , different product dimension , different electrical interface ,different process connecting ( thread , flange , tri-clamp ) ,normal or high temperature medium temperature , whether corrosive liquid medium , medium is liquid or solid etc , in a word , we are professional and glad to offer products based on your real site parameters !

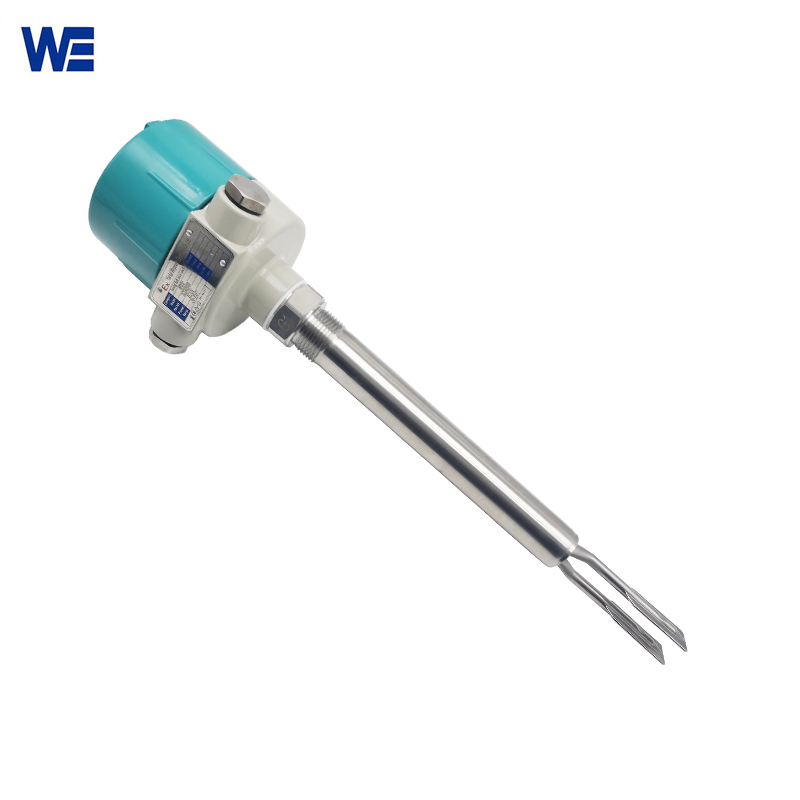

| Product Name | Fork Level Switch |
| Medium | liquid, powder or granular solid |
| Measured medium density: | solid ≥0.1g/cm3 Liquid ≥0.7g/cm3 |
| Measured solid particle size: | ≤10mm |
| Maximum liquid viscosity: | <1000mm2/s |
| Measured medium repose angle: | ≥200 |
| Fork Length | 40mm/100mm |
| Temperature | Medium temperature range: -20°C～150°C |
| Ambient temperature: -20°C～80°C | |
| Environmental humidity: | ≤95%RH |
| Pressure range: | ≤1MPa |
| Product Material | Housing Material: Die Cast Aluminum Alloy Or Compact Stainless Steel |
| Fork body material:SS304/SS316 | |
| Explosion-proof grade: | DIIBT4 |
| Housing protection class: | IP65 |
| Process Connection: | 1″ NPT thread;3/4″ thread,1/2″ thread,G1″ thread etc Flange (user selected) |
| Supply voltage: | DC24V; AC220V 50HZ |
| Output signal: Relay output: | 5A 220V AC ; 3A 24V DC |
| Power consumption: | ≤ 2W |
| Vibration frequency: | 300±50Hz |
| Environmental vibration level: | V.L.4 acceleration is less than 1 |
| Switch signal action time: | 1-60S |

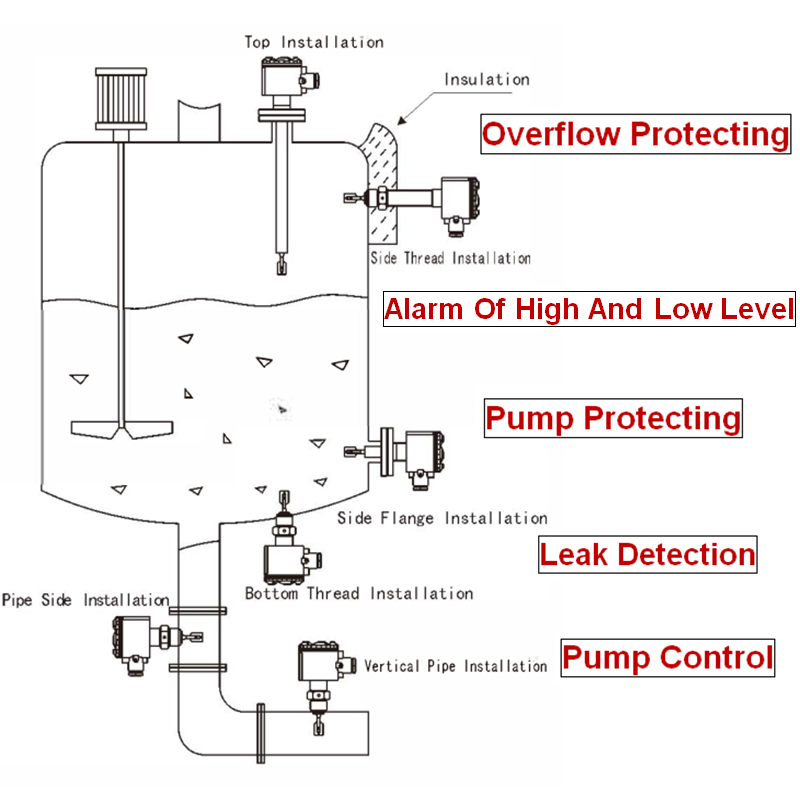

Installation Guidance
