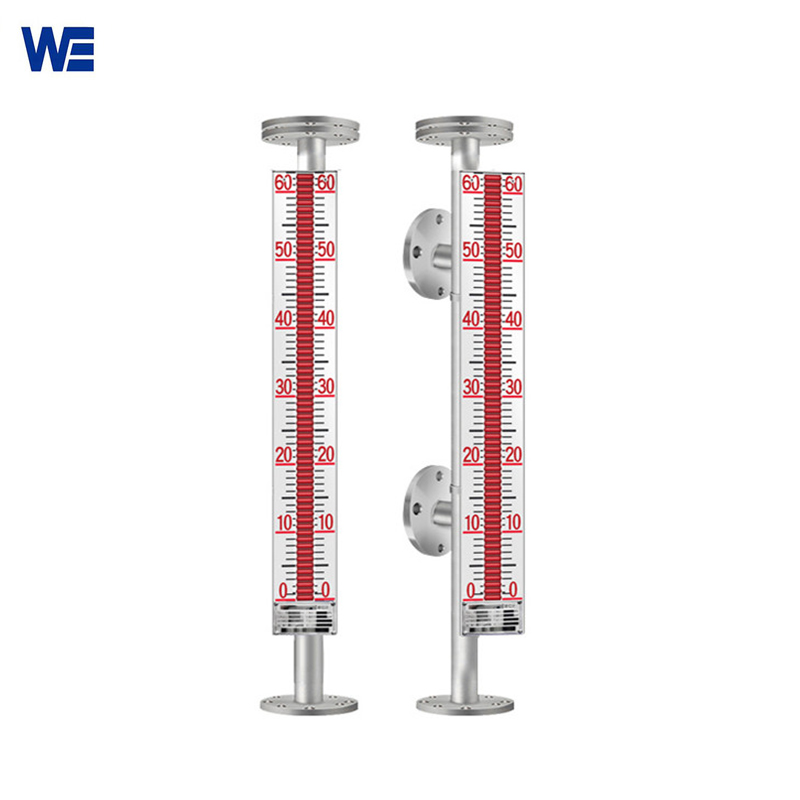

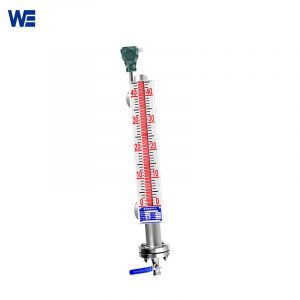

Magnetic float type level gauges are extremely durable level transmitters. This float type level gauge is made of higher-end stainless steel, and the inside of the panel is vacuum-treated, which is beautiful in appearance and accurate in measurement.

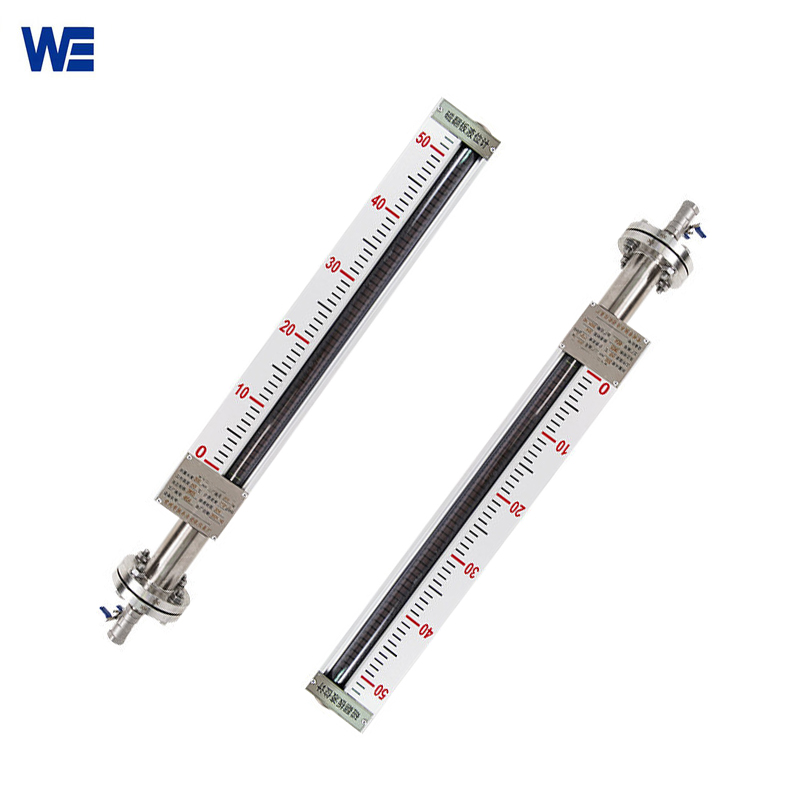

Float Type Level Gauges are excellent choice for various industrial settings, offering numerous benefits over traditional level measurement methods. In the process of use, the choice of float and panel is very important, and Wepower Electronic float type level gauge will be specially customized according to customer requirements. Float type level gauge’s float is often determined by us for customers based on the density of the measured value, etc. Float type level gauge flappers mostly use cylindrical flags and square flags. Although the shapes of the flags are various, the principle of movement is the same. The movement of the float is indirectly reflected by the color change of the rotating baffle. The position of the float represents the position of the liquid level in the tank.
What Causes the float type level gauge to work abnormally:
▲ There is dirt on the surface of the float, and the longer it is used, the more dirt there will be.
▲ Impurities on the inner wall of the buoy blocked the measuring pipe.
▲ The liquid surface crystallizes or freezes, which affects the movement of the float
▲ The plastic baffle may deform due to excessive heat
Product | Float type level gauge |
Model number | WP/ZP- UHZ |
Working principle | Magnetic coupling effect |
Measuring media | liquid like water, solutions |
Measuring range | 300-13000mm |
Accuracy | 10mm |
Working pressure | 1.0/1.6/2.5/4.0/6.0/16Mpa |
Working temperature | -20~450°C |
Medium Viscosity | ≤0.5Pa.S |
Medium density | ≥0.45g / cm 3 |
Relative Humidity | 10% to 90% |
Environmental Pressure | 86KPa ~ 106KPa |
Wetted materials | stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc. |

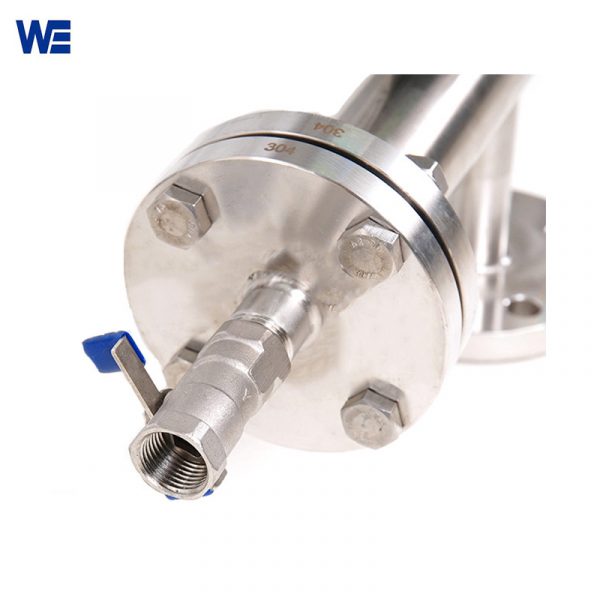

Process connection | flange connection, DN25 by default. |
Power supply | DC24V or AC220V |

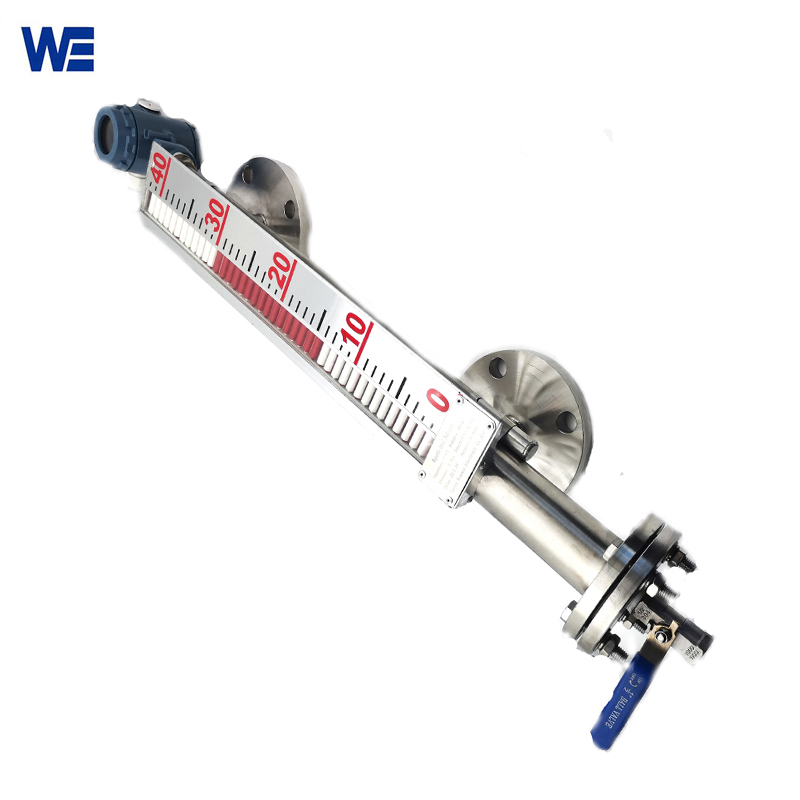

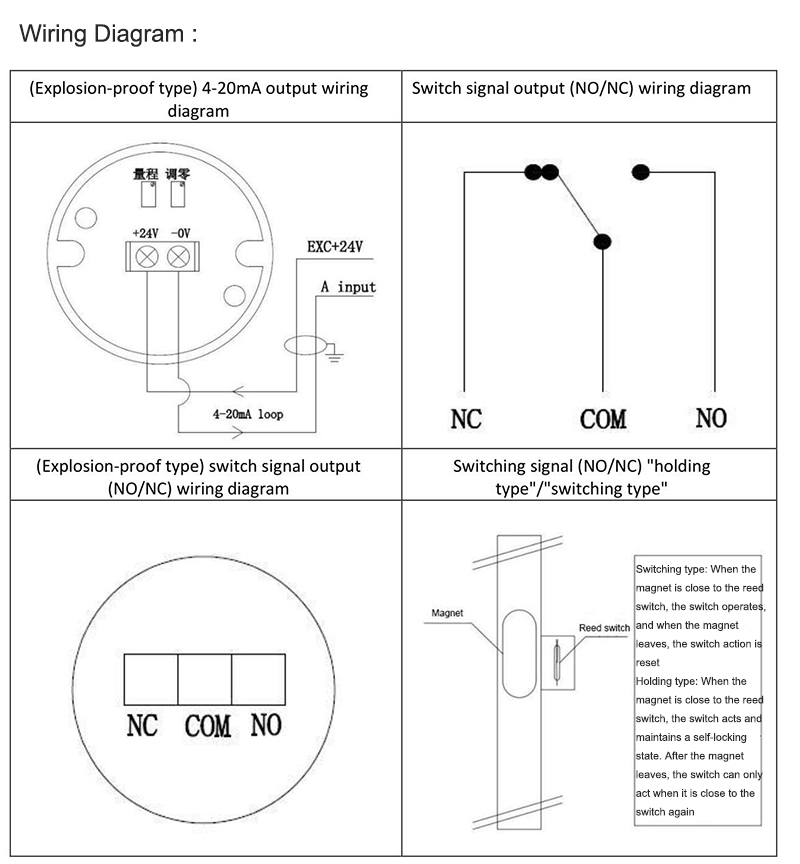

output | Mechanical type, output type(4-20mA+HART) |

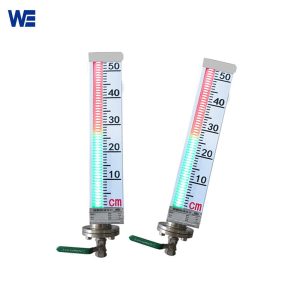

Display | With or Without |

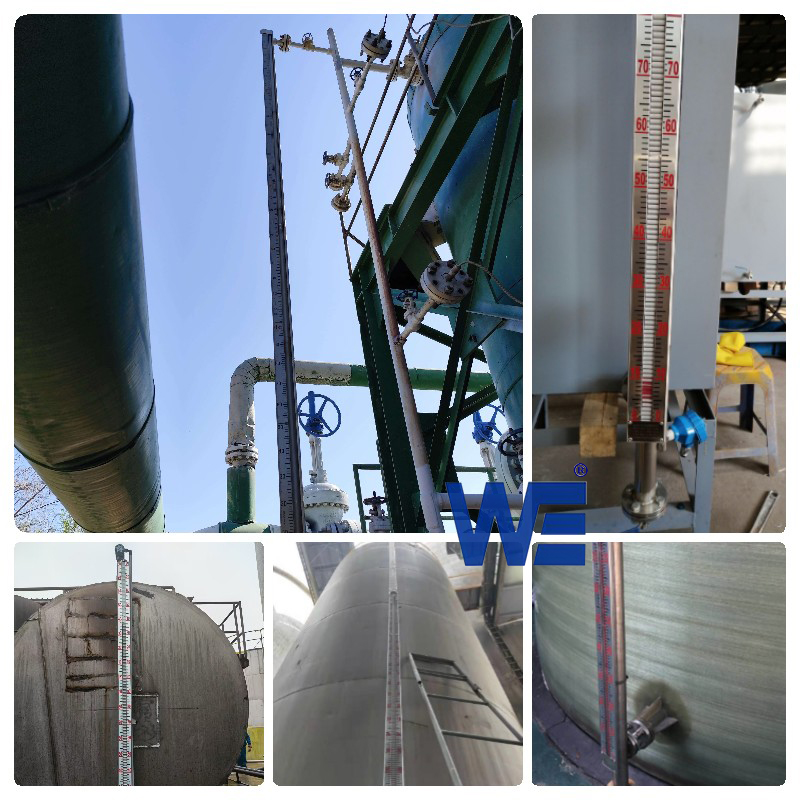

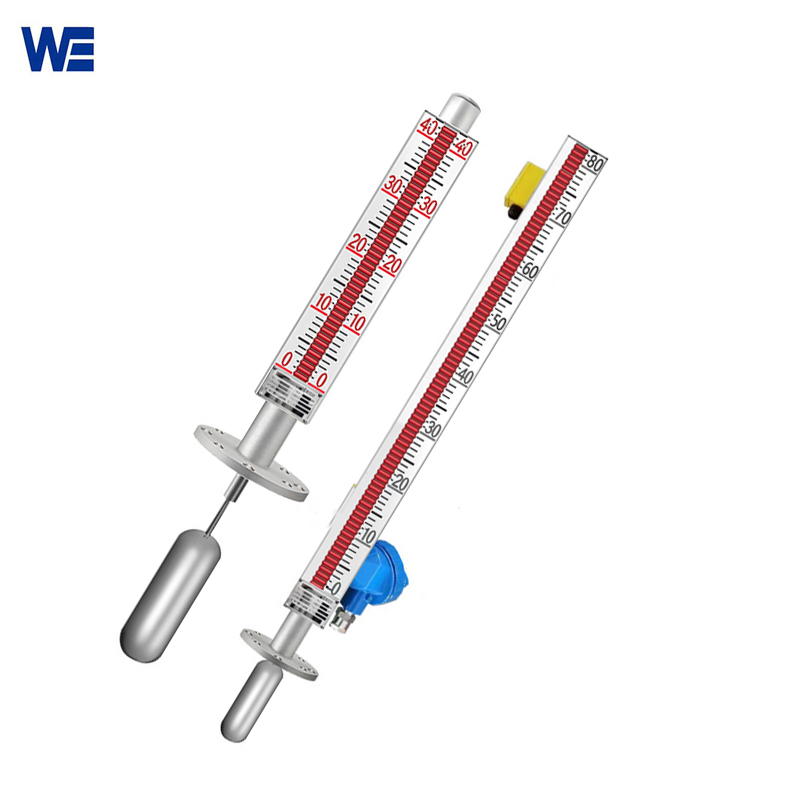

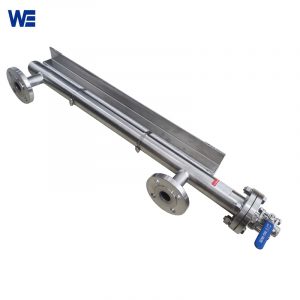

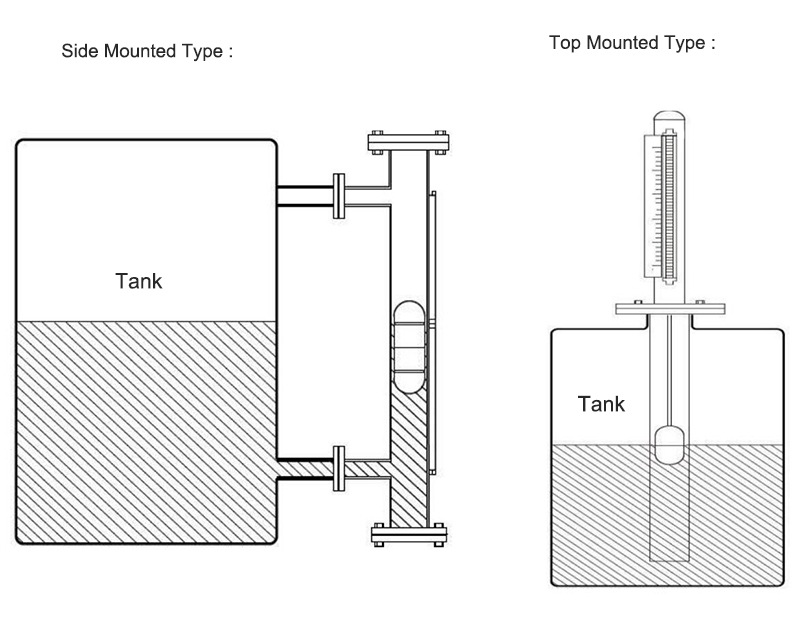

Installation type | Side mounted or top mounted |
Protection level | IP65 |
