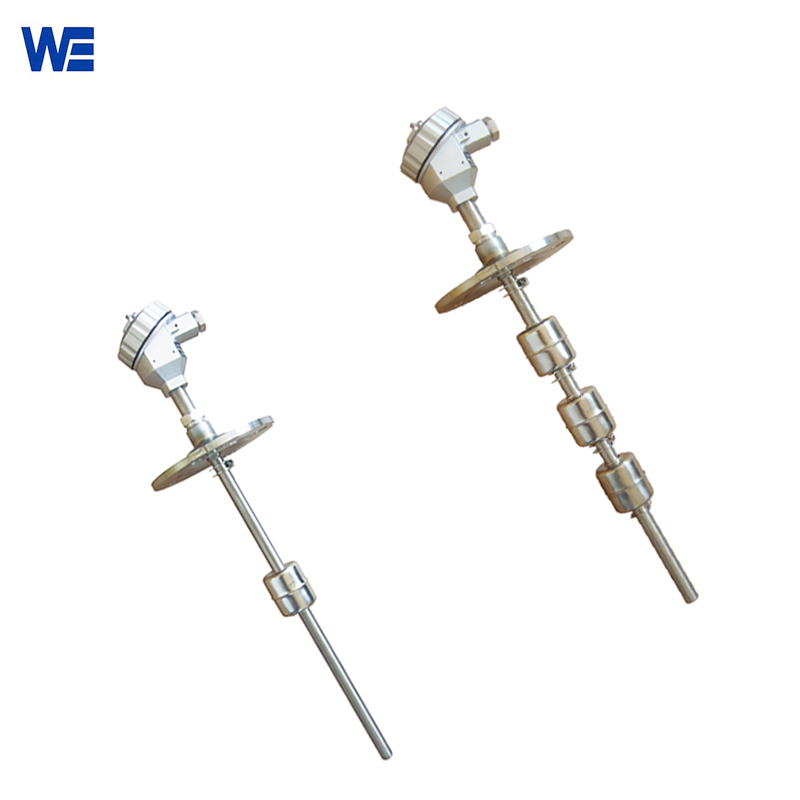

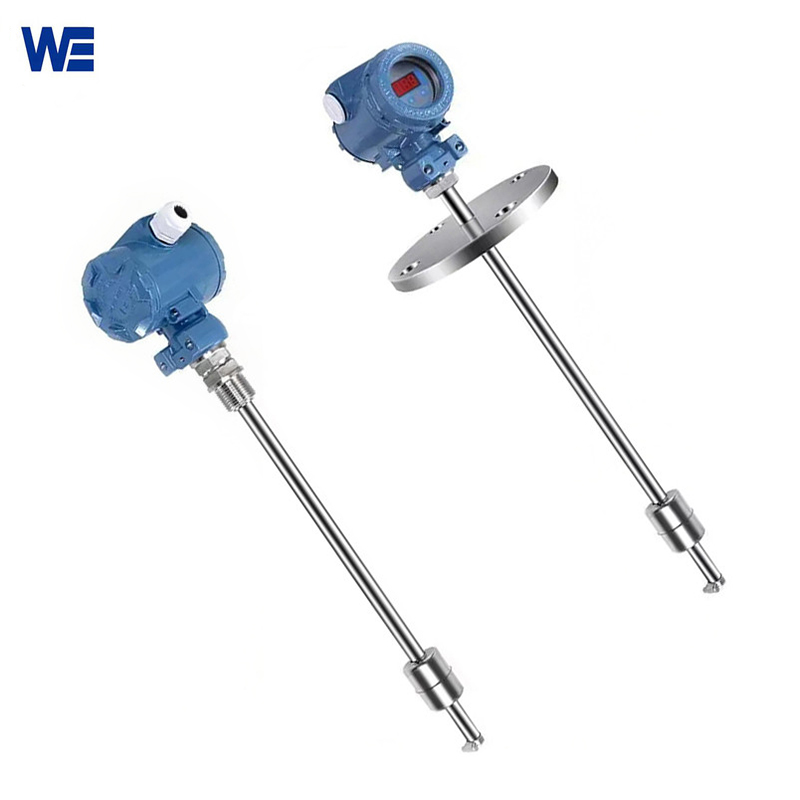

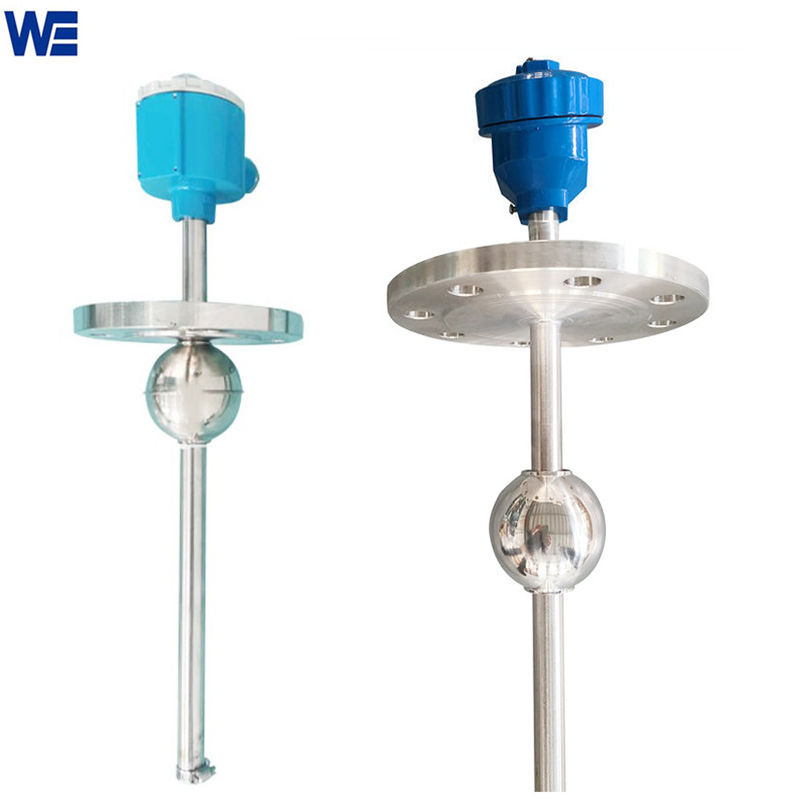

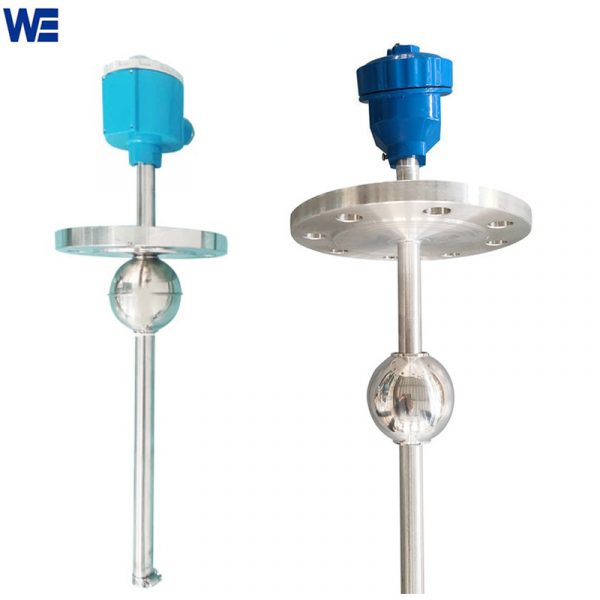

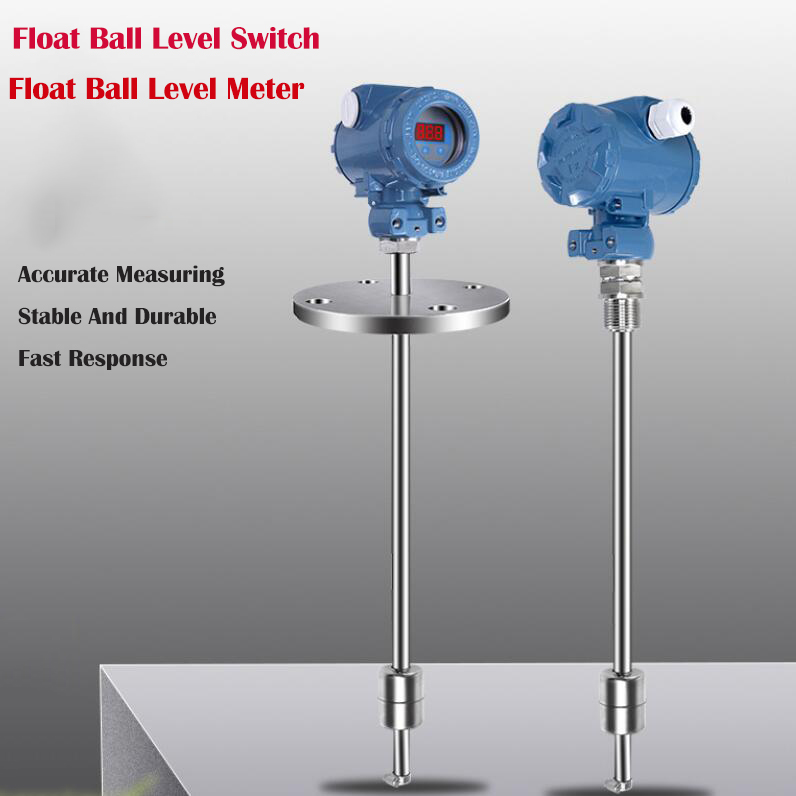

Float Ball Level Switch
Float ball level switches are usually top-mounted and can measure water, oil, and corrosive liquids. If you are in need of level float switches, contact WEpower please.
Float ball level switches are usually top-mounted and can measure water, oil, and corrosive liquids. And are usually threaded or flanged. When measuring corrosive liquids, PTFE conduits can be used,If you have special needs, please contact us.

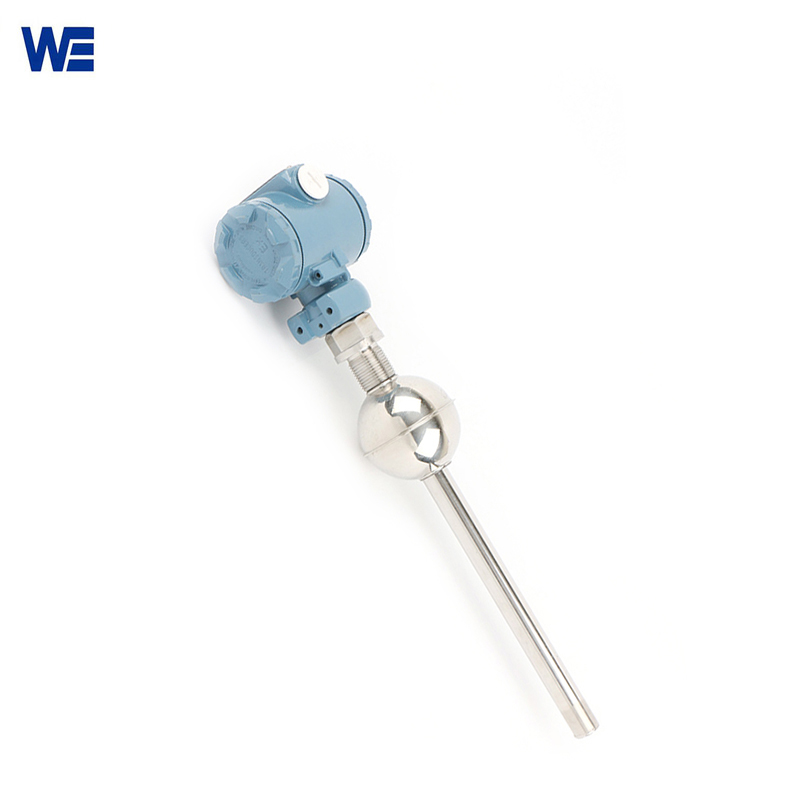

Level float switch can be installed on water tanks , fuel and other oil tanks .
| Product name | Float Ball Level Switch |
| Range | 299-8999mm |
| Power supply | 24VDC |
| Output signal | 4-20mA |
| Accuracy | ±5mm, ±10mm |
| Medium density | 0.5-2g/cm3 |
| Working temperature | -40-100℃:;-20-200℃; high temperature customized |
| Pressure level | ≦10Mpa |
| Metal floating ball | ￠45, ￠52, ￠75 and other specifications |
| Flange specifications | non-standard customization, DN20, DN25, DN35, DN50 |
| Wetted material | SUS304, SUS316L, PP, and other materials |
| Protection class | IP65 |
