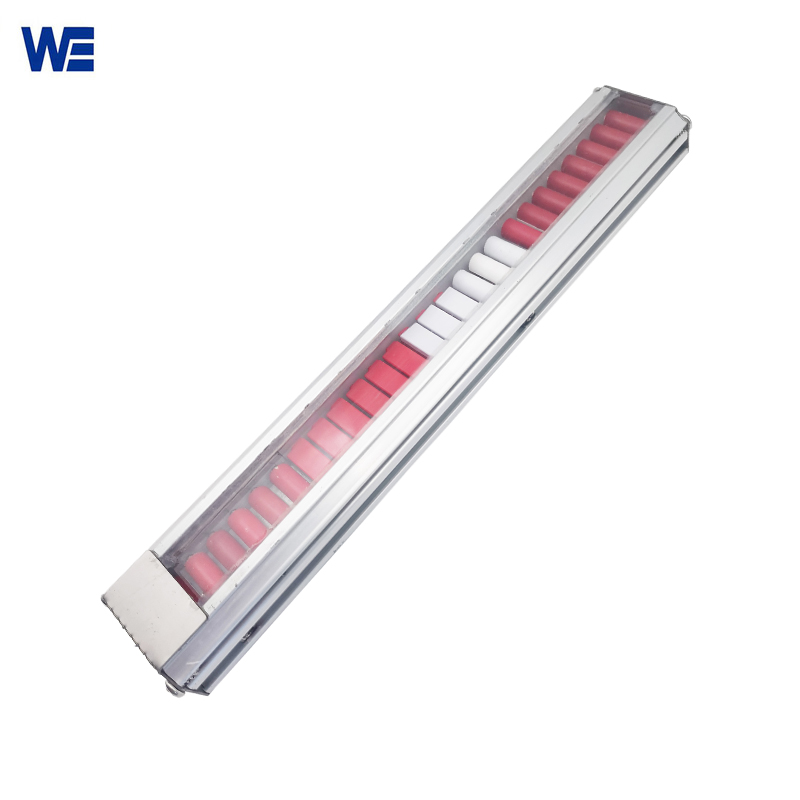

Flapper Indicator Without Scale

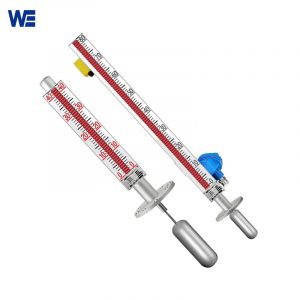

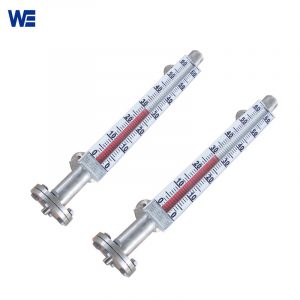

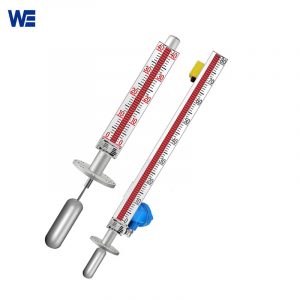

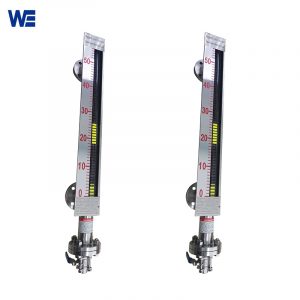

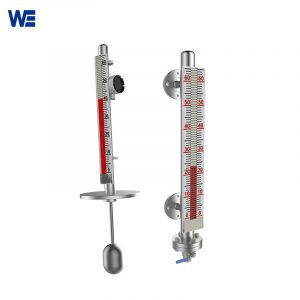

The Wepower Flapper Indicator Without Scale , a crucial component of the magnetic level indicator, is used to visualize the movement of the float inside the magnetic liquid level gauge chamber. Magnetic type level gauge is mainly composed of magnetic float, measuring chambers, visual indicator, vent plug, drain flange and plug.

In actual use, Wepower Magnetic Flapper Indicator is installed on the outer wall of measuring chambers. The indicating flaps or rollers in the flap indicator will flip due to the magnetic force, and the flipping of the flaps and rollers is consistent with the floating direction of the floater in the chamber.

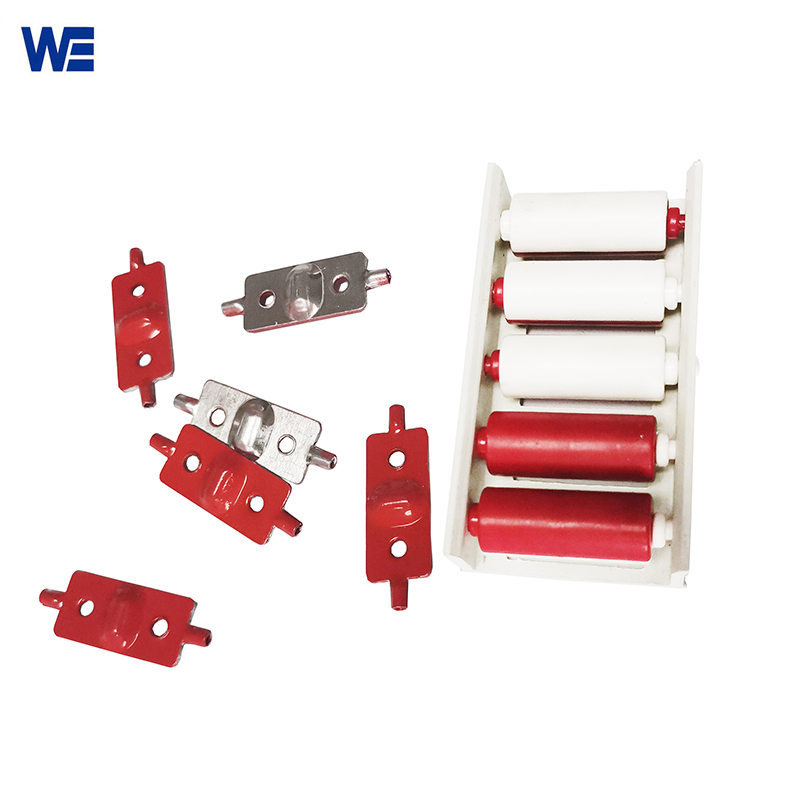

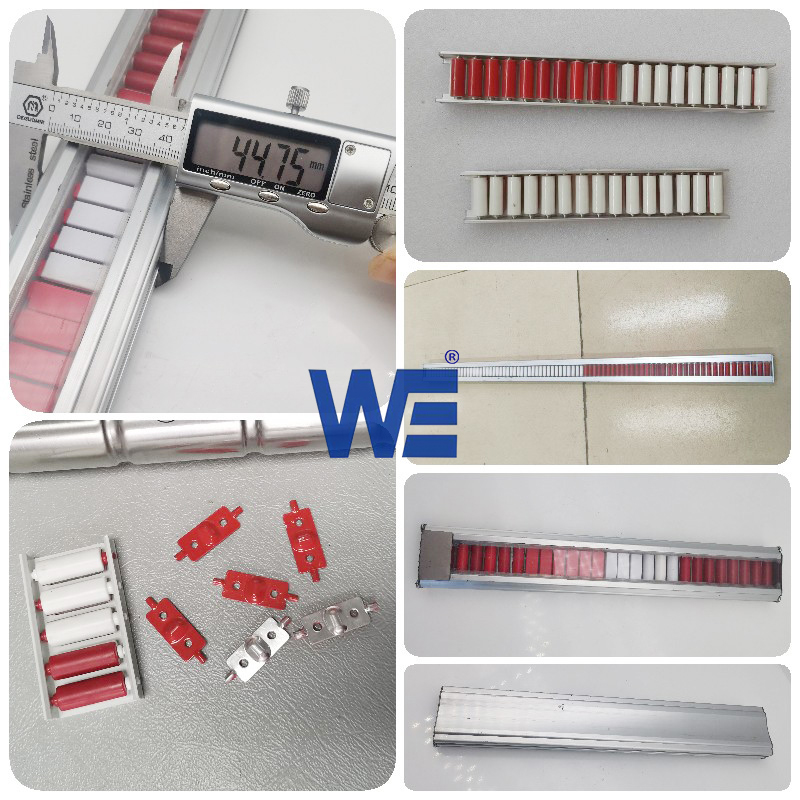

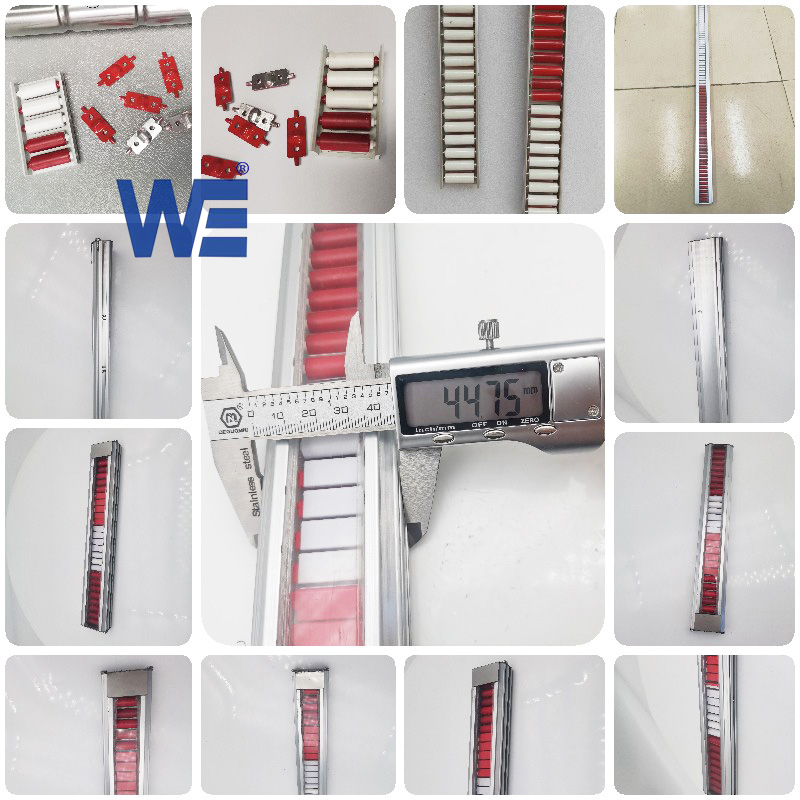

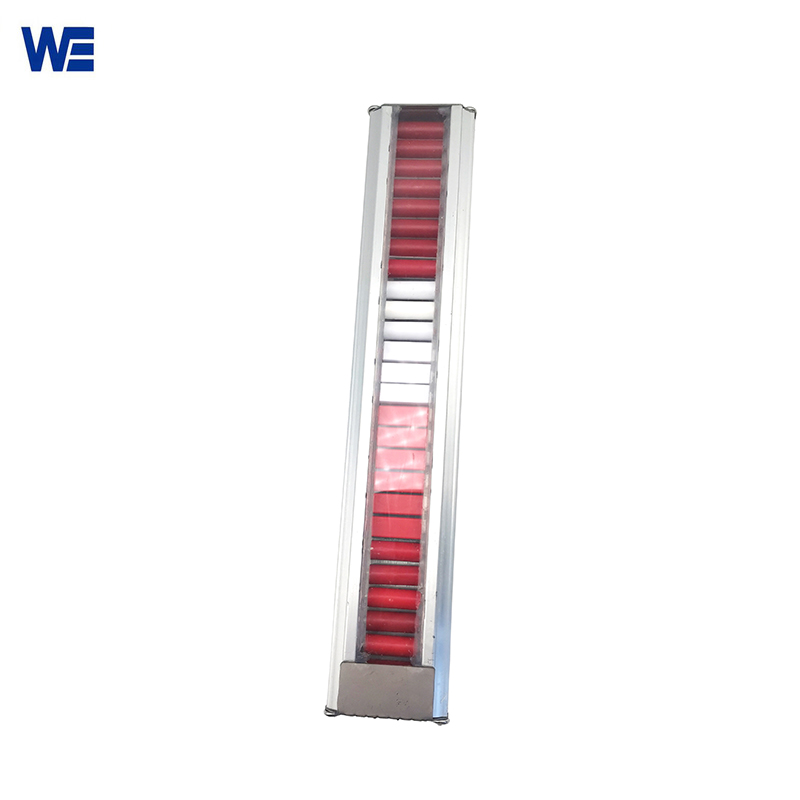

The flapper indicator’s structure is made up of a housing, internal flappers/rollers/flags, and a transparent protective screen. This type of flap indicator does not include a scale plate. The Flap indicator’s case is built of a silver aluminum alloy. Red and white double-sided flaps, rollers, and flags can be freely flipped. The flaps and rollers are protected by a transparent screen, which is ideal for outdoor use in windy conditions.

What is the classification of magnetic roller flapper indicator ?

• According to the working temperature, there are the normal temperature (max 90 ℃)and high temperature (max 350 ℃ ) and extra-high temperature ( max 500 ℃).

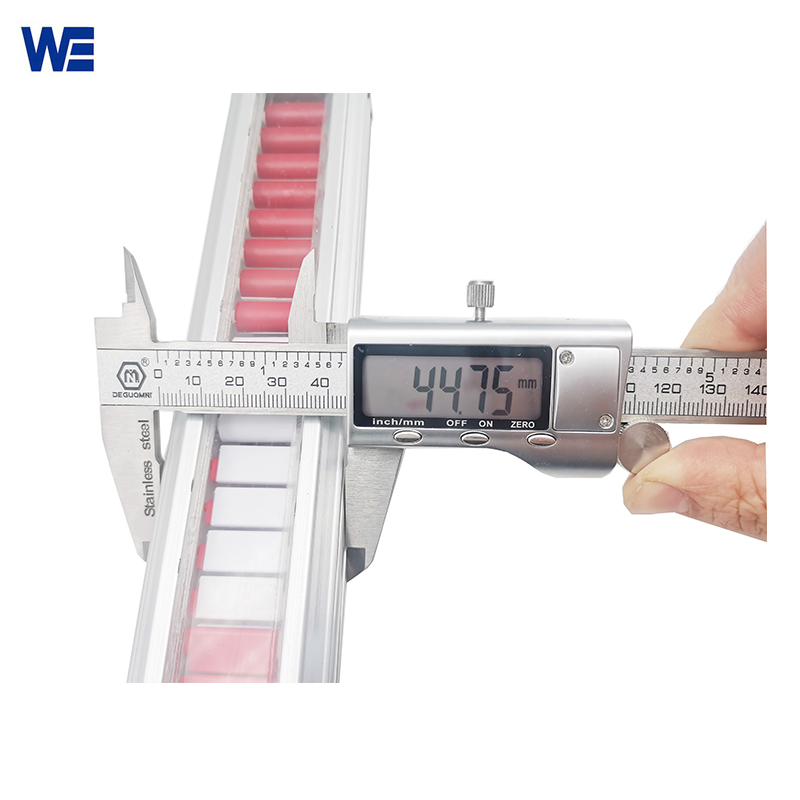

• Depending on whether there is a scale display, to meet customers’ various demands, we have the indicator panel with scale and the flapper indicator panel without scale. The width of roller flapper indicator chamber is shorter than the one with scale.

Can the magnetic roller flapper indicator component  be used in a high temperature environment?

• Flapper indicator is available in regular and high temperature versions. The regular style of the flap indicator is suitable for environments where the temperature is less than 90 ℃. The housing of the standard flapper indicator is made of aluminum alloy; the inner indicating flaps/rollers are made of plastic ABS; the outer transparent protective cover is made of acrylic.
• The high-temperature flapper indicator is used in the temperature max350 ℃. The case of the high-temperature flapper indicator is also made of aluminum alloy; the high-temperature type is equipped with special indicator flags that these flags are made of aluminum alloy; the protective cover of the high-temperature type indicator is made of high borosilicate glass(HBG).As the high temperature resistance material equipped for the high temperature model roller flapper indicator component, you can choose without any worries.

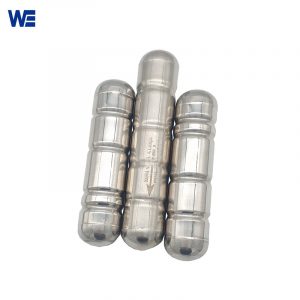

We can supply both the magnetic level gauge and also the components, such as the magnetic float, roller flapper indicator, the drainage valve etc. Flapper indicator supports customization of different specifications (length, with or without scale), the quality is guaranteed and there is a 12-month warranty.

Welcome to contact us now for these components price.
