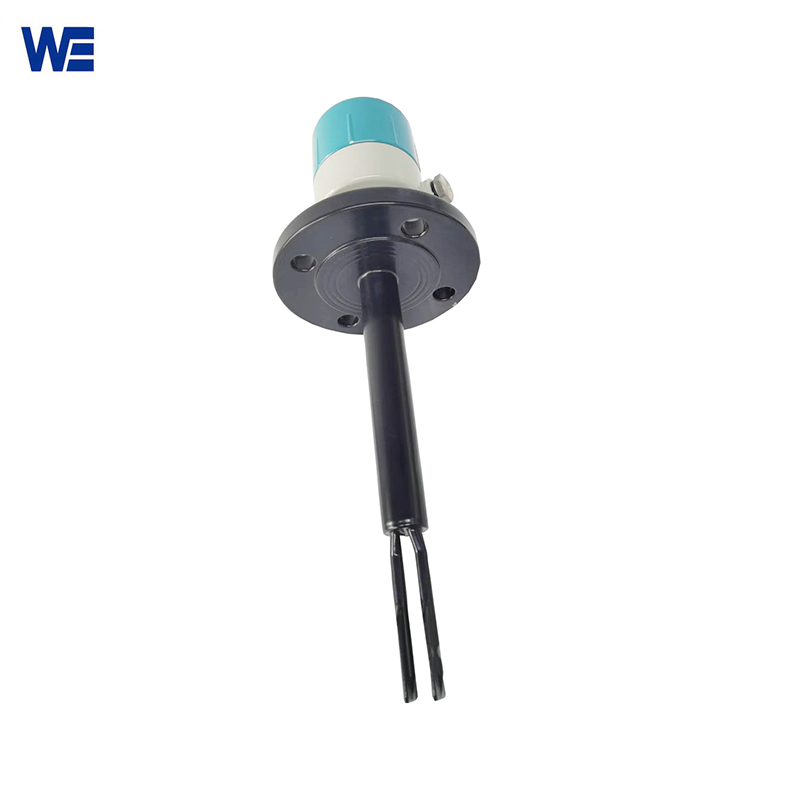

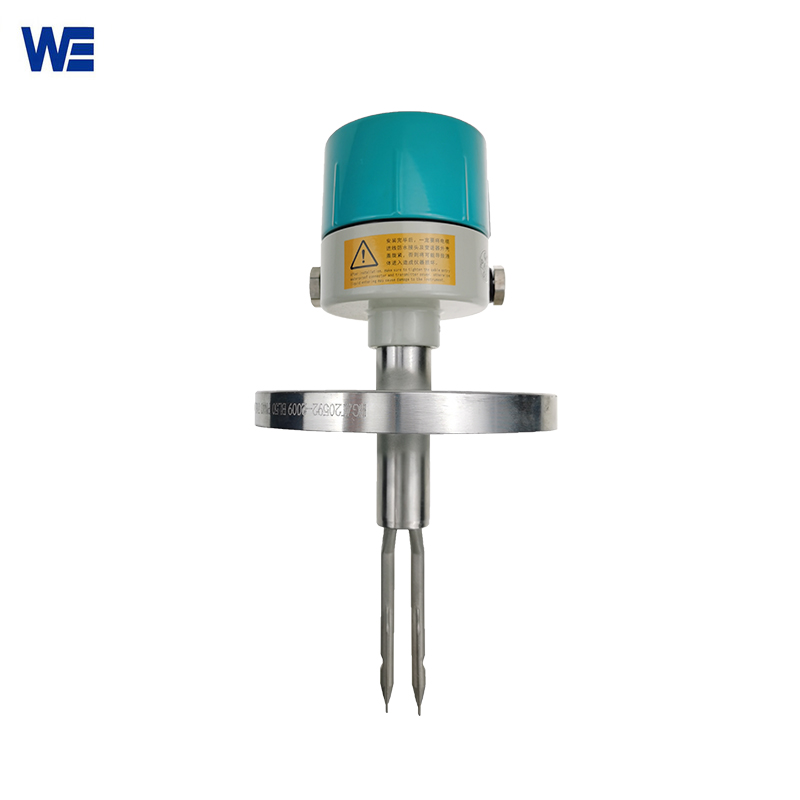

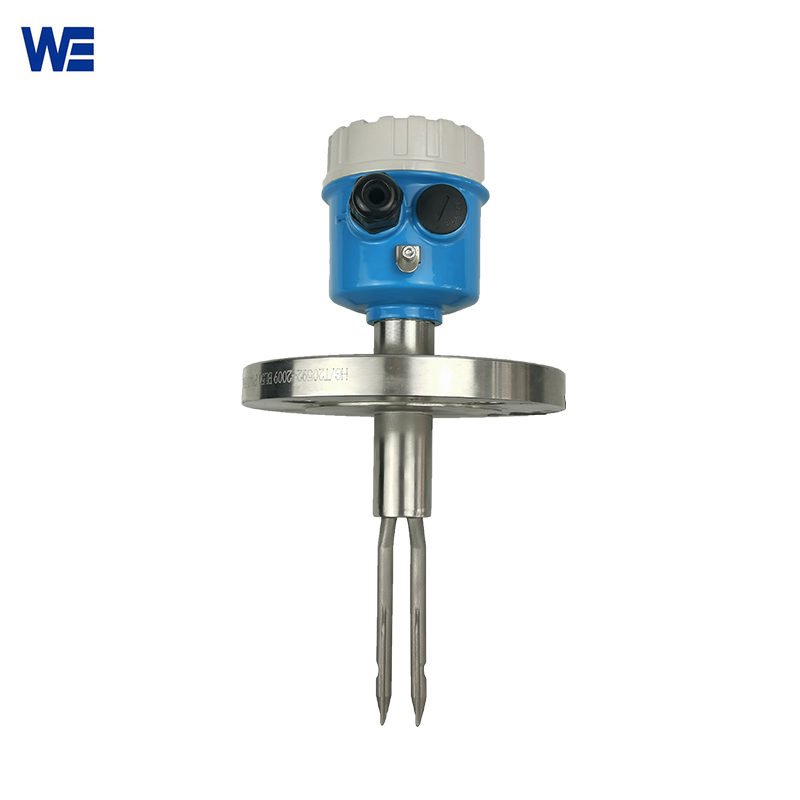

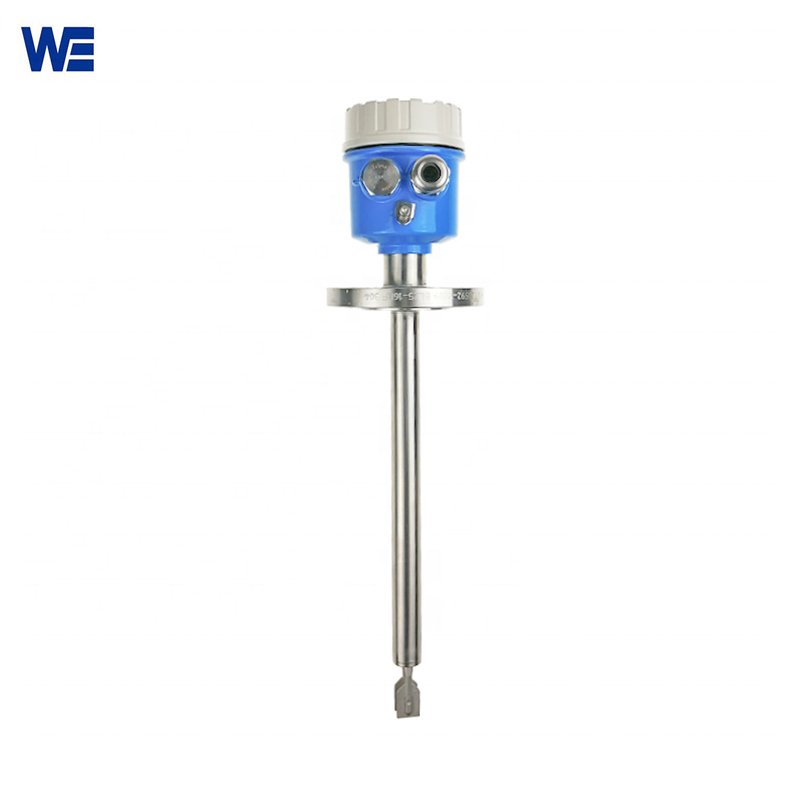

Flange Connecting Tuning Fork Level Switch
Flange connecting tuning fork level switch adopts a liquid level switch designed on the principle of tuning fork. Use the natural frequency of the piezoelectric crystal detuning fork to vibrate.
Application Areas Of Flange Connecting Tuning Fork Level Switch:
Flange Connecting Tuning Fork Level Switch is widely used in fields such as, Solid materials: rice, milk powder, sugar, salt, laundry, dyes, cement, stone powder, plastic particles, etc; Liquid medium: water, mud, dye, oil, milk, wine, beverage, etc. And can detect the sediment in the liquid!

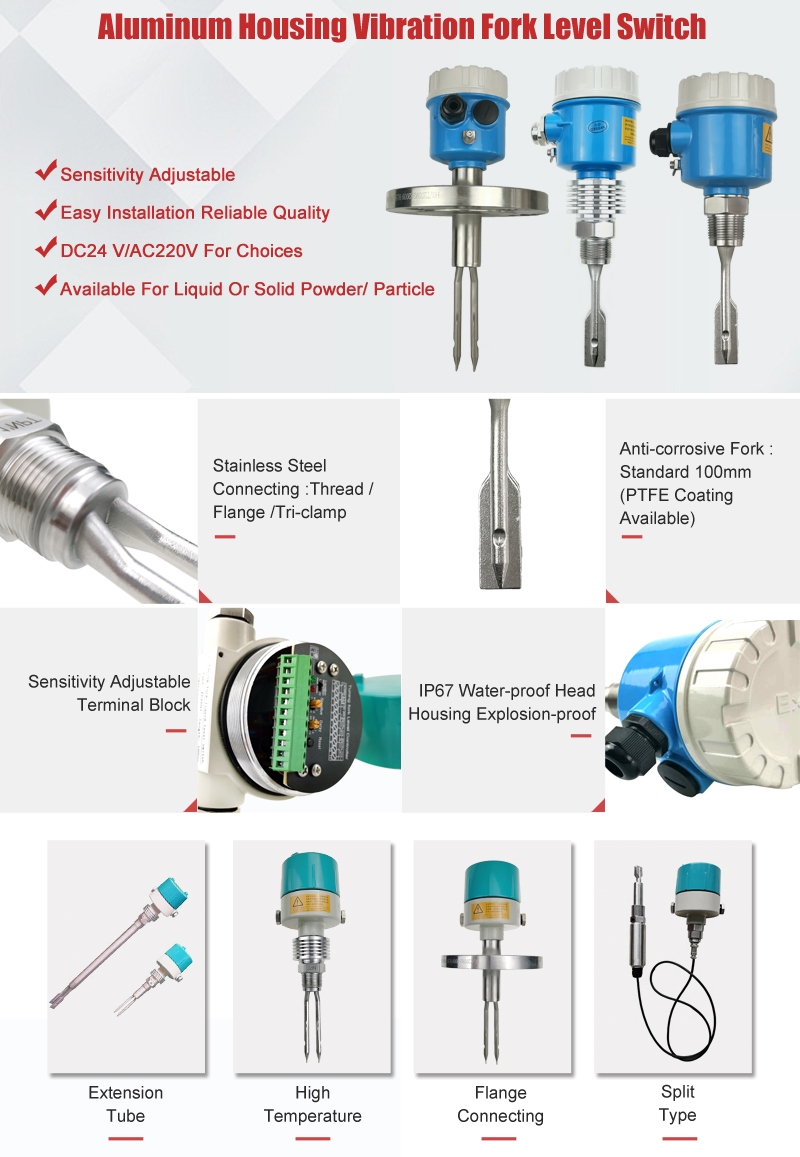

Process Connecting Of Vibrating Fork Switch:
Generally speaking ,there are three process connecting types : thread , flange , tri-clamp , our stainless steel flange is with flange standard options for customers . Actually that thread connecting are the most used connecting method , such as G1″ G1/2″ G3/4′ 1″NPT etc .
| Product Name | Flange connecting Fork Level Switch |
| Medium | liquid, powder or granular solid |
| Measured medium density: | solid ≥0.1g/cm3 Liquid ≥0.7g/cm3 |
| Measured solid particle size: | ≤10mm |
| Maximum liquid viscosity: | <1000mm2/s |
| Measured medium repose angle: | ≥200 |
| Fork Length | 40mm/100mm |
| Temperature | Medium temperature range: -20°C～150°C |
| Ambient temperature: -20°C～80°C | |
| Environmental humidity: | ≤95%RH |
| Pressure range: | ≤1MPa |
| Product Material | Housing Material: Die Cast Aluminum Alloy Or Compact Stainless Steel |
| Fork body material:SS304/SS316 | |
| Explosion-proof grade: | DIIBT4 |
| Housing protection class: | IP65 |
| Process Connection: | 1″ NPT thread;3/4″ thread,1/2″ thread,G1″ thread etc Flange (user selected) |
| Supply voltage: | DC24V; AC220V 50HZ |
| Output signal: Relay output: | 5A 220V AC ; 3A 24V DC |
| Power consumption: | ≤ 2W |
| Vibration frequency: | 300±50Hz |
| Environmental vibration level: | V.L.4 acceleration is less than 1 |
| Switch signal action time: | 1-60S |
Installation Guidance

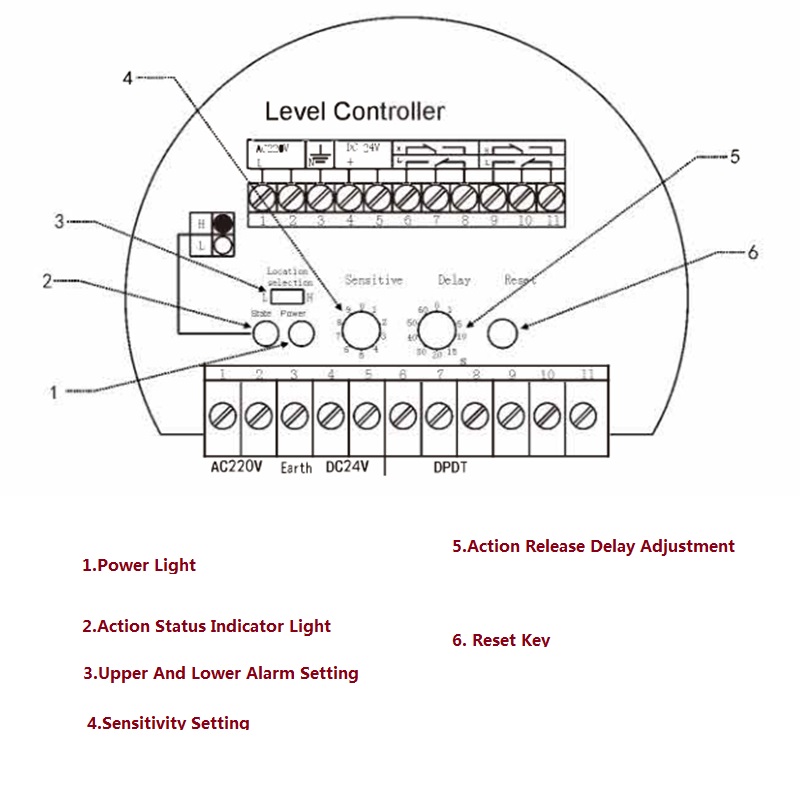

Wiring
