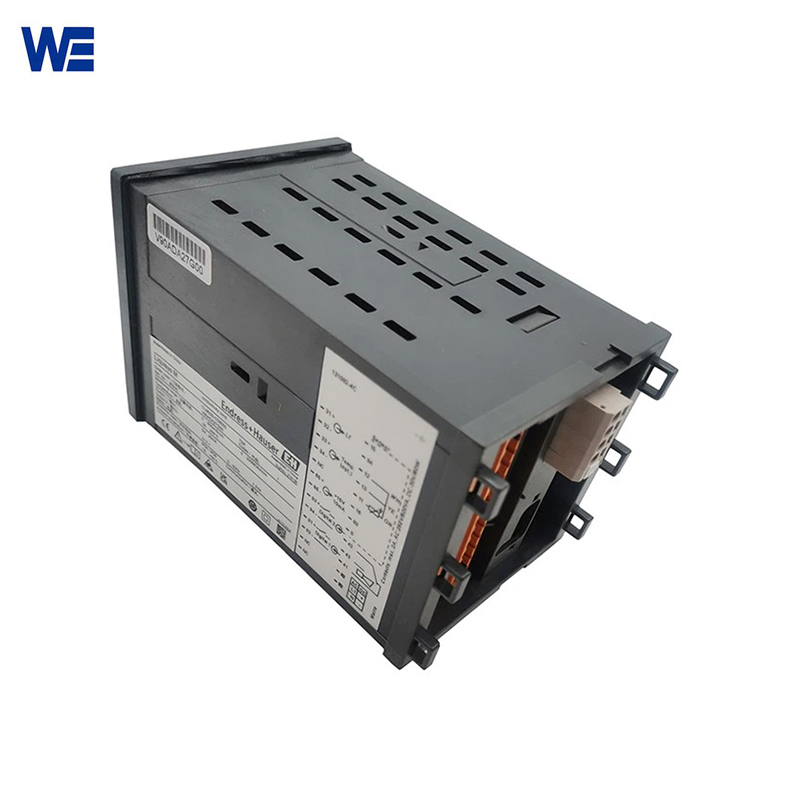

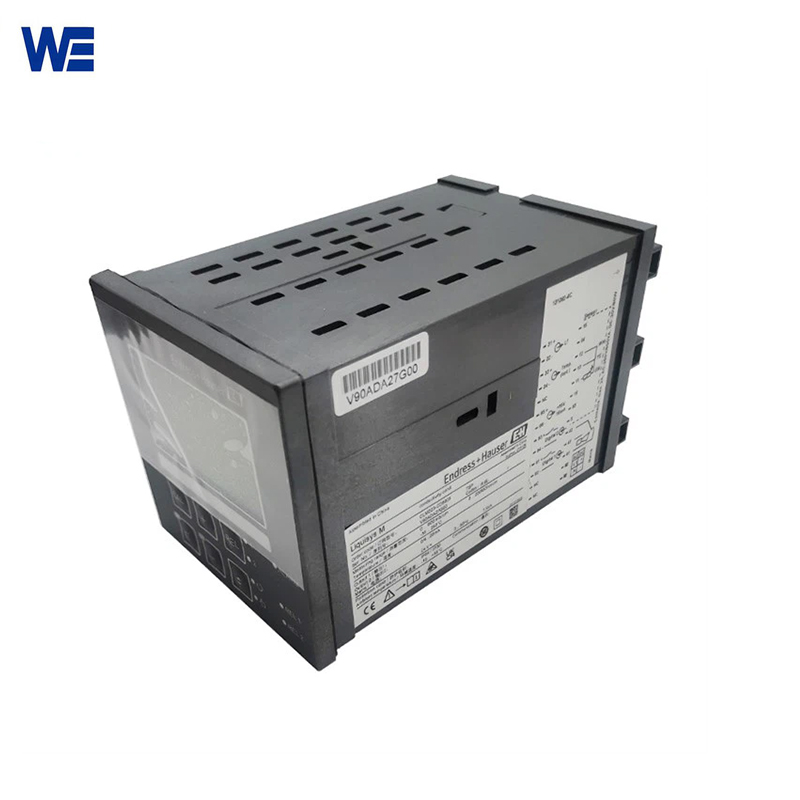

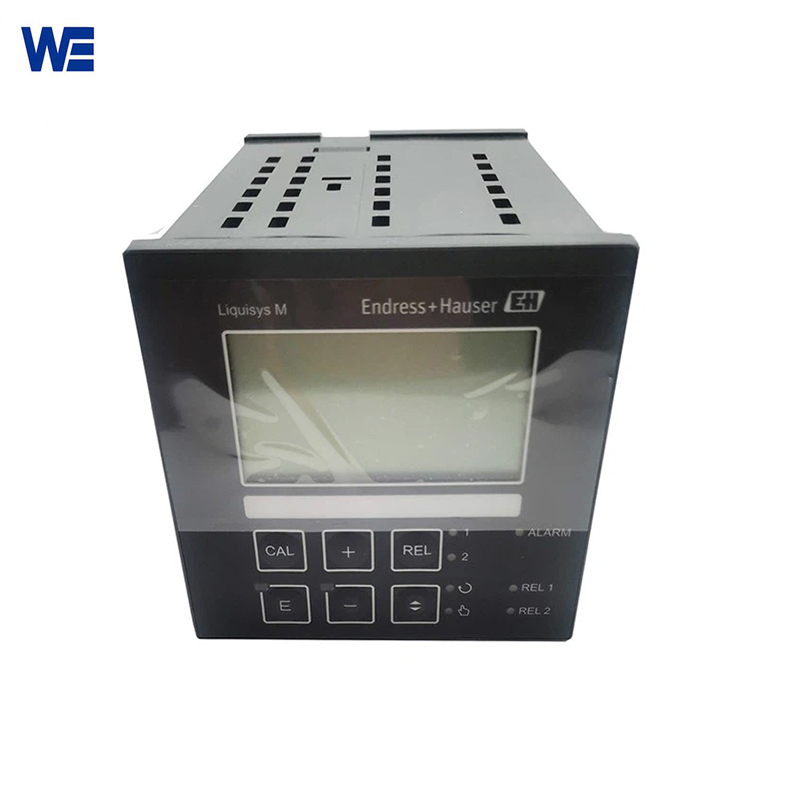

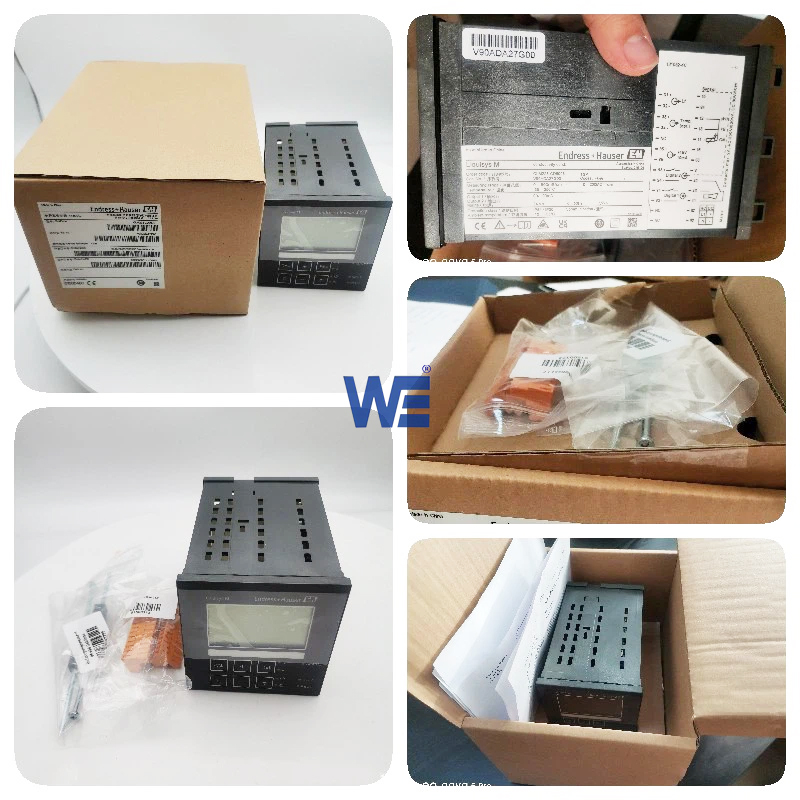

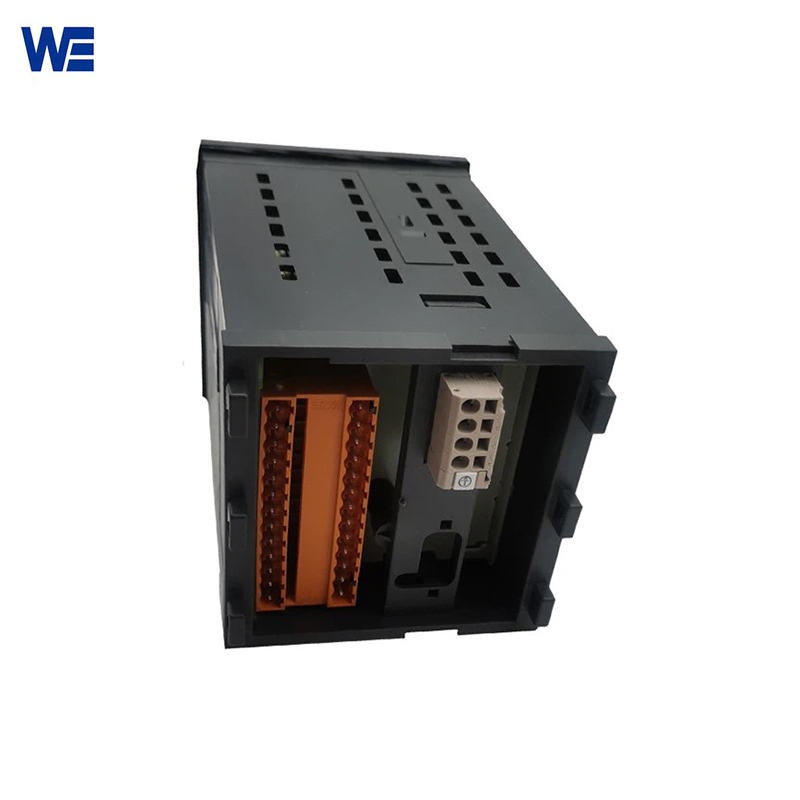

E+H CLM223 Conductivity Transmitter
E+H liquisys CLM223 conductivity transmitter is used to accurately measure the conductivity value of the solution and to indirectly measure the concentration of ions in the solution. Wepower Electronic is a professional supplier of original and genuine E+H products, contact us now.
Feature And Application Areas Of E+H CLM223 Conductivity Transmitter:
Endress + Hauser CLM223 Conductivity Transmitter is a single-channel transmitter for industrial use, which can output 4-10mA, HART and PROFIBUS. E+H CLM223 has a simple and elegant operation interface and is easy to operate. Engineers and users can easily achieve manual contact control. It is widely used in various fields such as beverages, food, brewing, pharmaceuticals, chemicals, water plants, semiconductor manufacturing, etc.
Wepower Electronic is a professional precision instrument manufacturer and distributor, supplying E+H, Rosemount and other world-renowned brand instrument products. All E+H products we supply are original and genuine. Our regular E+H products are in stock. You can contact us at any time.
Parameters:
| Name | E+H CLM223 Conductivity Transmitter |
| Measuring principle | Conductive |
| Model No. | CLM223 |
| Application | Water, waste water, process |
| Characteristic | 4-wire transmitter with a two-line display. |
| Design | Panel-mounted transmitter for conductivity |
| Dimension | 96×96 mm, built-in-depth: 146 mm |
| Temperature sensor | Display and current output |
| Ex certification | No |
| Ingress protection | IP65 |
| Input | 1-channel transmitter |
| Output / communication | 0/4-20mA, Hart, Profibus |
| Additional certifications | CSA Gen. Purpose |
Other popular E+H products:
PMP51B-J7W7/0 PMP51B-BFBACBH6AA3FCA1VNJA1+Q1VD 0-40KPA
PMP51B-J7V1/0 PMP51B-AABACBH6AA3KCA1VNJA1+Q1VD 0-200KPA
PMP51B-J7U6/0 PMP51B-BFBACBH6AA3KCA1VNJA1+Q1VD 0-200KPA
PMP51B-J7Q4/0 PMP51B-AABACBH6AA3SCA1VNJA1+Q1VD 0-4MPA
PMP51B-J7P9/0 PMP51B-BFBACBH6AA3SCA1VNJA1+Q1VD 0-4MPA
PMP51B-J7N8/0 PMP51B-AABACBH6AA3UCA1VNJA1+Q1VD 0-10MPA
PMP51B-J0K0/0 PMP51B-BFBACBH6AA3UCA1VNJA1+Q1VD 0-10MPA
PMP55B-4QV0/0 PMD55B-AABACBH37LCASAJA1D+Q1VD 0-1.6MPA
PMP55B-8WV9/0 PMD55B-BFBACBH37LCASAJA1D+Q1VD 0-1.6MPA
PMD55B-BFBACBH37CCASAJA1D+Q1VD 0-3KPA
PMD55B-AABACBH37DCASAJA1D+Q1VD 0-10KPA
PMD55B-BFBACBH37DCASAJA1D+Q1VD 0-10KPA
PMD55B-AABACBH37FCASAJA1D+Q1VD 0-50Kpa
PMD55B-BFBACBH37FCASAJA1D+Q1VD 0-50 Kpa
PMD55B-AABACBH37HCASAJA1D+Q1VD 0-300 Kpa
PMD55B-BFBACBH37HCASAJA1D+Q1VD 0-300 Kpa
PMD75-BBC7FK1DAAA+N573
PMC71-ABA1C1GAAAA
PMC71-ABA1H1GAAAA
PTC31B-AA4D1FGBVWJA
CPM223/253-MR0005 CPS11D-7BA21 CYK10-A101 COM253-DX0005 COS41-4F CPM253-MR0105 FDU91-RG1AA/2AA COS61-A1F0 CPS11D-7BT21 CUS71D-AA1A FMU90-R11CA111AA3A COS61D-AA1AA3 CPS11D-7BT2G FMU40-ARB2A2 CPS11D-7AA21 CPS12D-7NA21 CUS52D-AA1AA3 CPS11D-7AS21 CPS12D-7PA21 CPS11D-7BA2G CYK10-A201
CUS51D-AAD1A3 CM42-MAA000EAZ00 FMU30 5M 8M CLM253-CD0005
Regular Large Stock :100% original *fresh factory date * competitive price * No delivery time
| Pressure Transmitter | ||||||
| differential pressure | Explosion-proof | PMD75B-QKT1/0 | PMD75B-BNBAEJH37BCASAJA1D+Q1VD | |||
| differential pressure | non explosion-proof | PMD55B-65C9/0 | PMD55B-AABACBH37DCASAJA1D+Q1VD | |||
| differential pressure | Explosion-proof | PMD55B-65A8/0 | PMD55B-BFBACBH37DCASAJA1D+Q1VD | |||
| differential pressure | non explosion-proof | PMD55B-6340/0 | PMD55B-AABACBH37FCASAJA1D+Q1VD | |||
| differential pressure | Explosion-proof | PMD55B-6594/0 | PMD55B-BFBACBH37FCASAJA1D+Q1VD | |||
| differential pressure | Flameproof | PMD55B-6568/0 | PMD55B-BFBACBH37HCASAJA1D+Q1VD | |||
| differential pressure | Flameproof | PMP55B-8WV9/0 | PMD55B-BFBACBH37LCASAJA1D+Q1VD | |||
| pressure | Flameproof | PMP51B-J7W7/0 | PMP51B-BFBACBH6AA3FCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J7U6/0 | PMP51B-BFBACBH6AA3KCA1VNJA1+Q1VD | |||
| pressure | non explosion-proof | PMP51B-J7T0/0 | PMP51B-AABACBH6AA3PCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J7R0/0 | PMP51B-BFBACBH6AA3PCA1VNJA1+Q1VD | |||
| pressure | non explosion-proof | PMP51B-J7Q4/0 | PMP51B-AABACBH6AA3SCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J7P9/0 | PMP51B-BFBACBH6AA3SCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J0K0/0 | PMP51B-BFBACBH6AA3UCA1VNJA1+Q1VD | |||
| Temperature Transmitter : | ||||||
| Module (regular) | TMT72-8TN4/0 | TMT72-AAA1AABA1+F9 | ||||
| Module (intrinsically safe) | TMT72-8TP5/0 | TMT72-BAA1AABA1+F9 | ||||
| Explosion-proof case + display | TMT72-8TV8/0 | TMT72-B6A1AH4A1+F9G1 | ||||
| Explosion-proof case without display | TMT72-8TU2/0 | TMT72-B6A1AH3A1+F9 | ||||
| Rail type (regular type) | TMT72-8TQ0/0 | TMT72-AAA2AAAA1+F9 | ||||
| Rail type + Intrinsically safe | TMT72-8TR6/0 | TMT72-BAA2AAAA1+F9 | ||||
| Ultrasonic Level Sensor | ||||||
| FMU30-AAHEAAGGF | ||||||
| FMU30-AAHEABGHF | ||||||
