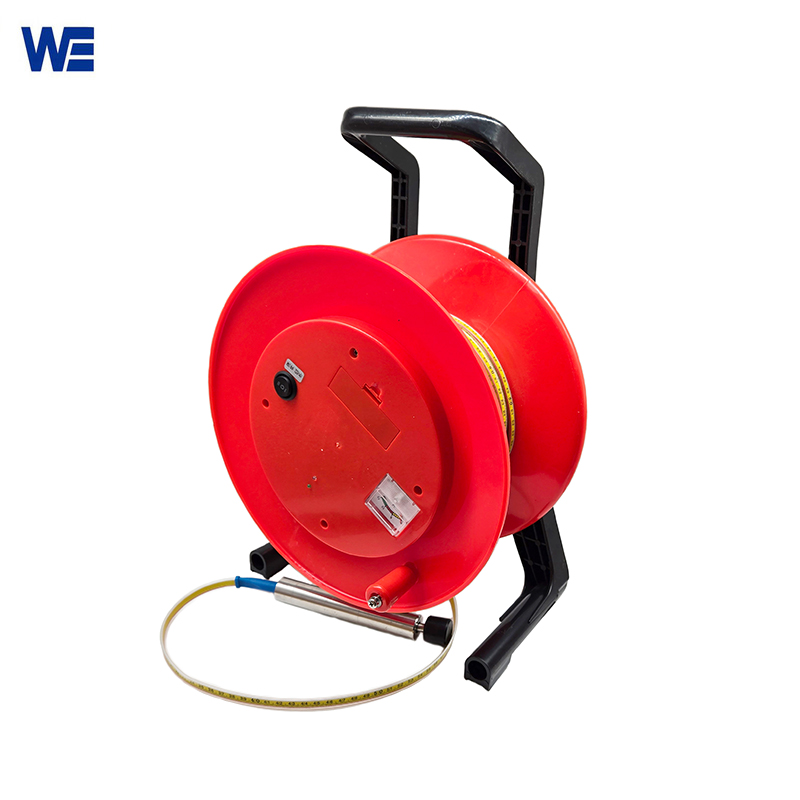

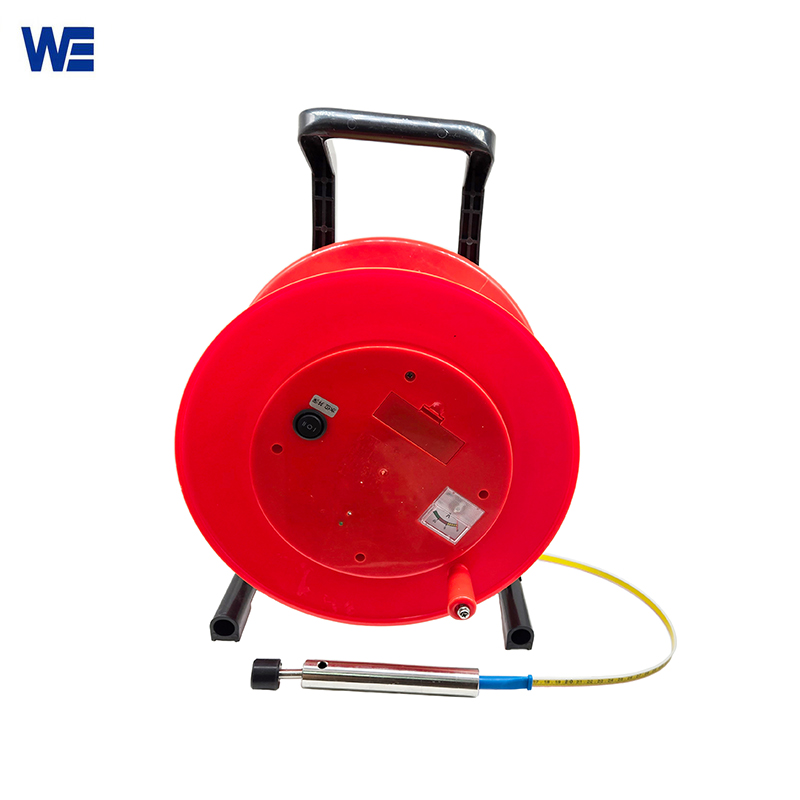

Dual Purpose Well Depth Sounder
WEpower dual purpose well depth sounder is composed of fixed stainless probe (25*170mm) and PE coating steel tape, which is sturdy and specially designed to precisely detect both well depth and water level. With double functions, this measurement offer you greatly convenience.
What is the advantages of this WEDL series dual purpose well depth sounder ?
- Dual purpose function
This dual purpose dip meter is not same as normally meters, as its name, it has two functions. It has two buttons that show the water level in addition to the well’s depth. Press the “Ⅰ” button to measure the water level, and switch to the “Ⅱ” button to measure the well depth
- Easy operation
It is easy to use and portable to move, requiring only a 9V lithium battery to operate. And all you have to do is submerge the probe in water, and the sensor will automatically urge you that the probe’s hole is filled with water, then read the value. Isn’t so easy to use this borehole well water level indicator?
- Reliability
Equipped with fixed probe that is composed of stainless steel, there is no need to worry about the quality of the dual purpose probe, which is heat-resisitant and bear many kinds of rigorous environments. In addition, the accurate service is guaranteed by the dependable and readable scale of this cable ruler.
- Thoughtful design
When the tape range is more than 400m, the weight will grow up, so we designed this indicator’s handel can be extended for your convenience. What’s more, wheels are equipped for easy movement. And durable metal reel disc for heavy ruler cables.
Why choose WEpower Electronic?
WEpower always wants the best quality and after-sales service for customers. And we offer a variety of versions to accommodate varied customer needs. Under strict quality supervision and advanced technology teams, WEpower offer you favorable and thoughtful price, and if you need help when you use our product, we provide detailed info and guidance.
So, never mind to contact us for more professional advice!
| Product Name | Dual Purpose Well Depth Sounder |
| Measuring Range(m) | WEDL-10M,WEDL-20M,WEDL-30M,WEDL-50M,WEDL-100M,WEDL-150M,WEDL-200M,
WEDL-250M,WEDL-300M,WEDL-350M,WEDL-400M,WEDL-500M,WEDL-600M |
| Minimum Indication(mm) | 1mm |
| Repeat Indication(mm) | ±2.0 |
| Power Supply(V) | 9V lithium battery |
| Probe Dimension | 25mm*170mm |
| Material | 30-350m range: strong ABS reel disc and frame
≥400m range: strong ABS reel disc+metal frame+wheel trolley for easy moving SS304 probe |
| Cable Material*Size | Steel ruler with PE coating; Width:10mm*Thickness 2mm |
| Ambient Temperature | -20~65℃, relative humidity ≤85%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator light, buzzer |
| Product Size | Length 46cm*Width 37cm*Height 28cm(150 meters and below); Length 46cm*Width 37cm*Height 30cm(200m,300m); Length 51cm*Width 48cm*Height 64cm(400m, 500m, 600m) |
| Weight | 5kg(50m)/9kg(300m)/30kg(500m) |
| Reel Disc Color | Orange |
