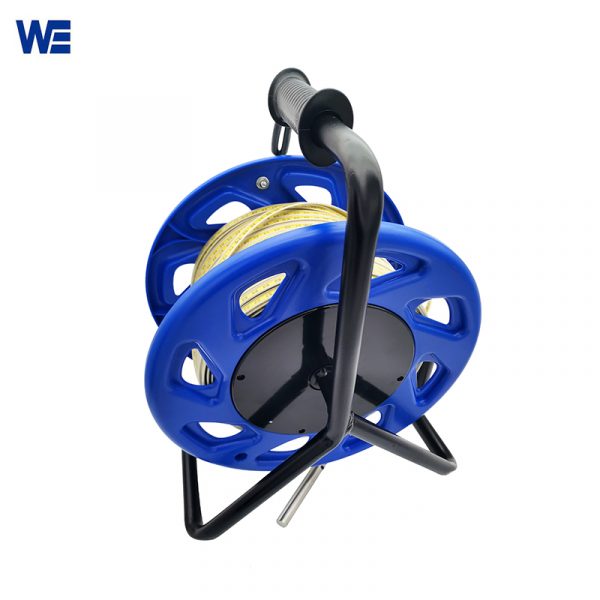

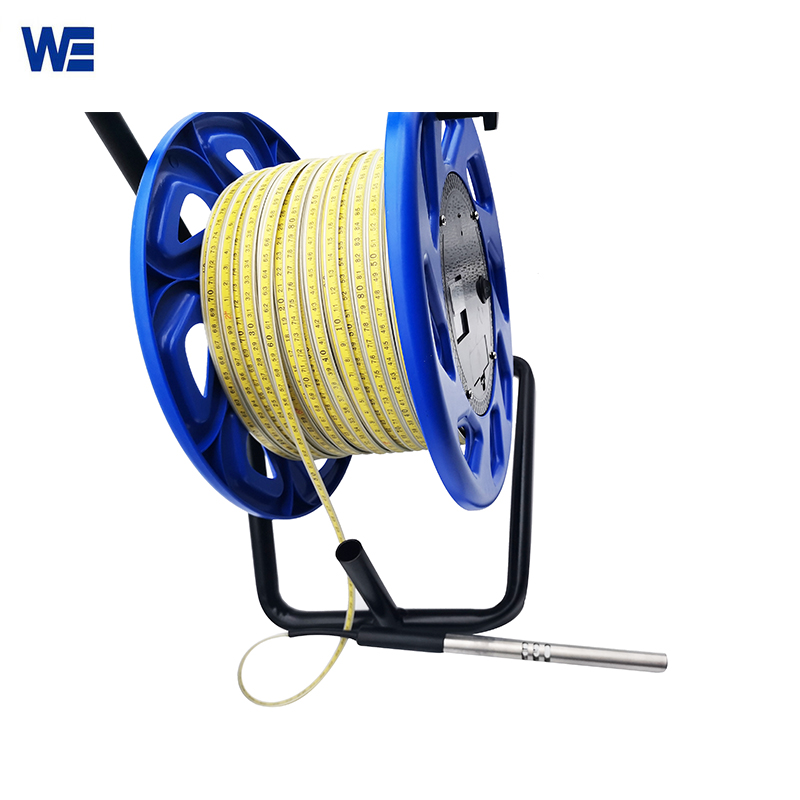

Dip Tape Level Indicator
Dip Tape Level Indicator is popular underground water monitoring instrument ,due to its compact design ,it is the most economical method water level tape used for measuring static water levels in wells, boreholes ,standpipes, borewells etc .
Dip Tape Level Indicator is popular underground water monitoring instrument ,due to its compact design , dip tape level indicator is the most economical method water level tape used for measuring static water levels in wells, boreholes ,standpipes, borewells etc . The dip tape level indicator will show to users both a visual (LED) signal and an auditory (buzzer ) with accurate measuring unit mm ,the depth of the water can be read easily and directly from the ruler tape. Dip tape level indicator is easy to use and portable.
Features Of Dip Tape Level Indicator :
- Precision measurement, simplicity, durability
- Polycarbonate sturdy stainless steel ruler
- Water and dust-proof encapsulated electronics
- Full depth stainless steel probe
- Tape marked in 1 foot and 0.01 foot intervals
- Self-contained power supply using a standard, small 9V battery
- Audio alert beeper and LED indicate contact with the water
| Product Name | Dip Tape Level Indicator |
| Measure Range (m) | WCL-30m,WCL-50m,WCL1-00m,WCL-150m,WCL-200m,WCL-250m,WCL-300m, WCL-350m ,WCL-400m, WCL500m, etc |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |
| Material | ● ABS Reel and handle ,Metal frame (Range less than 350m )
● Metal reel , Metal Handle , Metal Frame (Range≥ 400m ) ● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m) |
| Cable Material /Size | Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |

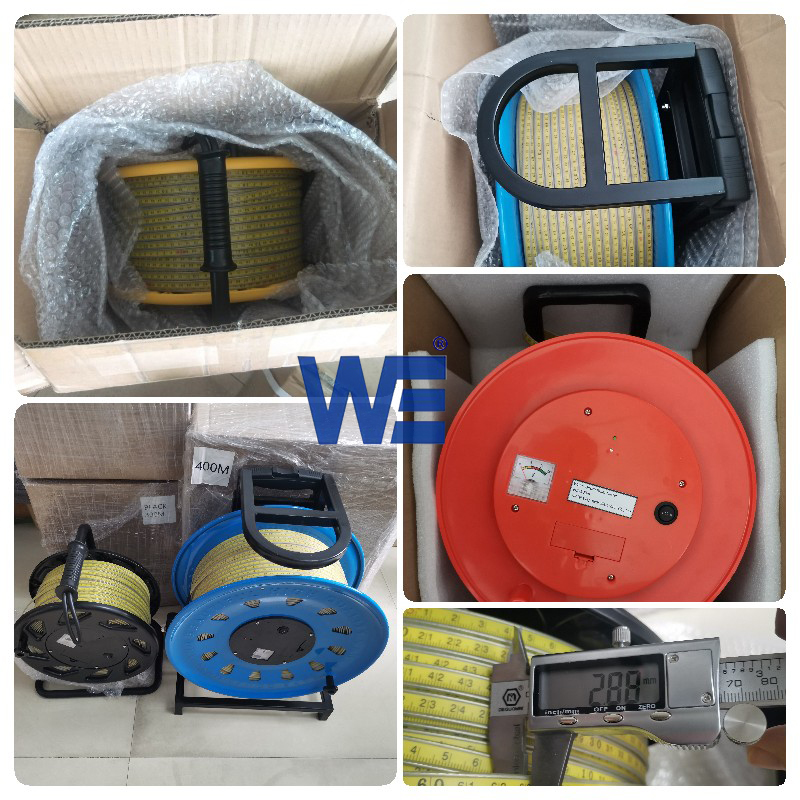

Customer Feedback
Our good quality level meter ,fast shipping , considerate service always get nice feedback from our customers all over the world , please see the details.
Maintenance & Storage For Dip Tape Level Indicator:
- The dip tape level indicator should be stored in an environment that is protected from direct sunlight and moisture.
- It is recommend that the measuring tape is neatly wound onto the reel and the probe placed in the holder
- For long periods of non-use, it is recommended that the battery is removed
- If the tape level indicator has been used in contaminated liquid , it is suggested that the probe and tape is washed in clean water before storage.
- Do not disassemble the stainless steel probe .
