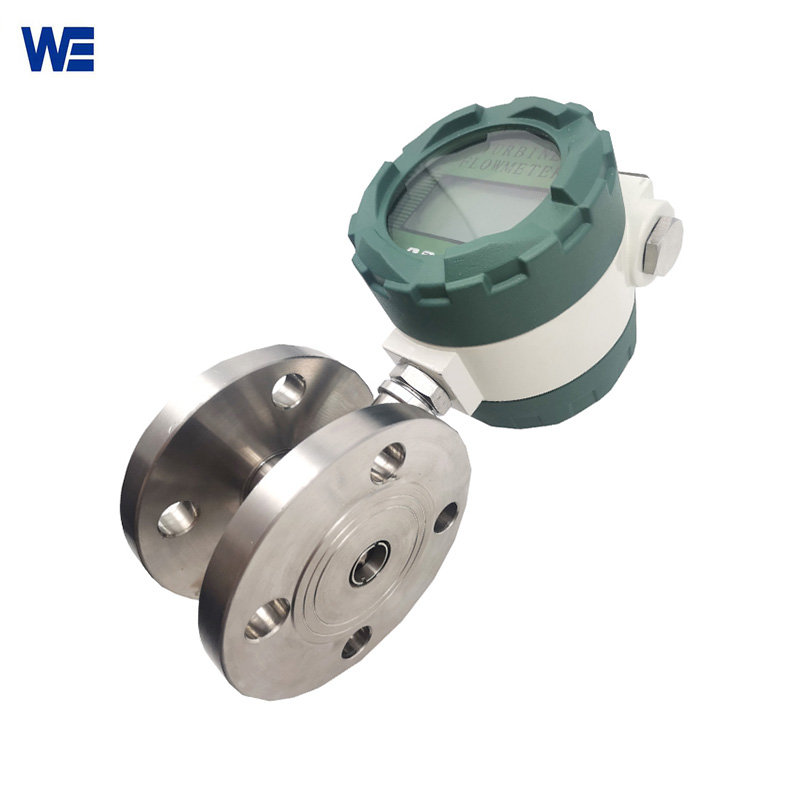

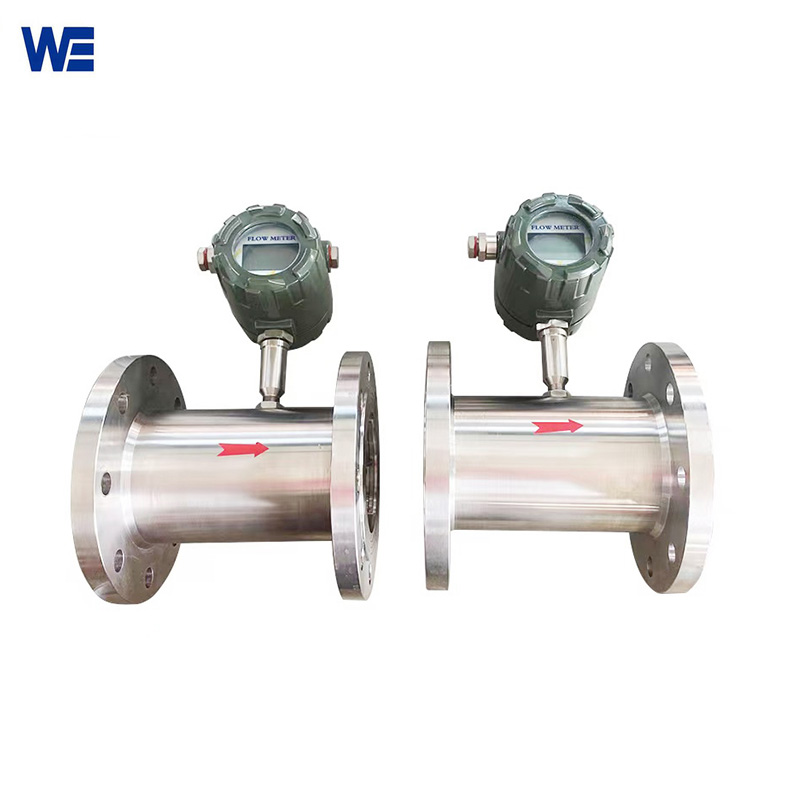

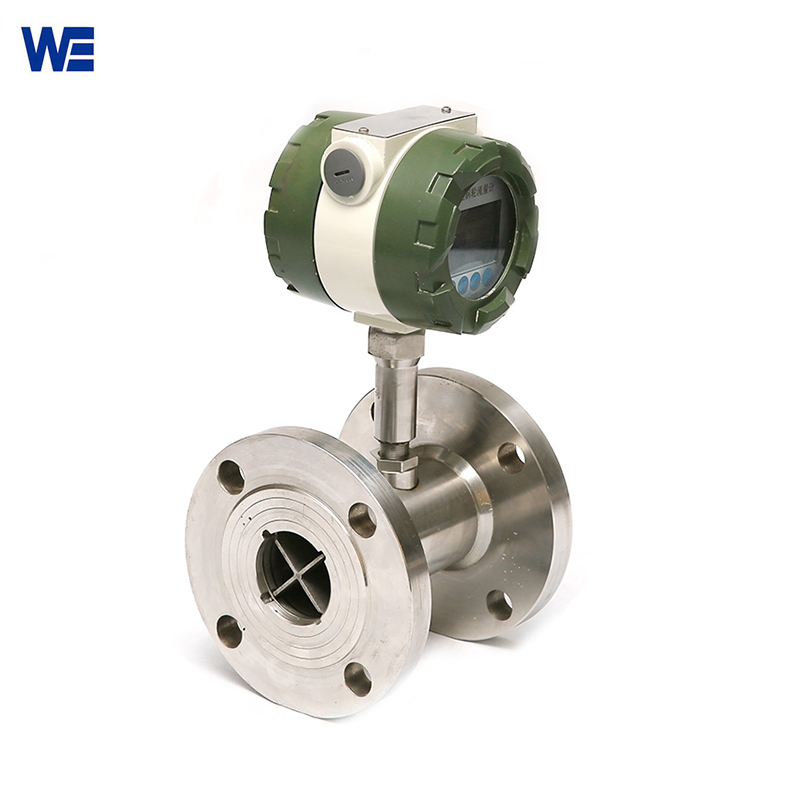

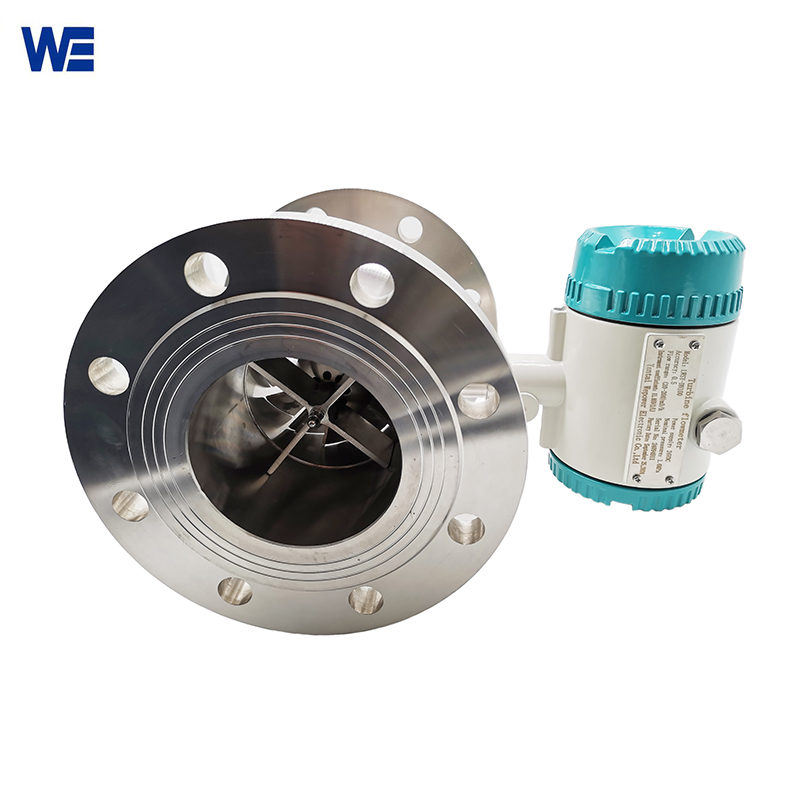

Digital Turbine Flow Meter
Digital turbine flow meter is a velocity flow meter that displays data automatically. The digital liquid turbine flow meter is composed of stainless steel body, which is both sturdy and elegant. The turbine flow meter has a simple structure and is easy to operate with high accuracy ,so it is the ideal instrument of measuring flow value and saving energy.
Digital turbine flow meter is a flow meter that integrates measurement and display. Turbine flow meters are among the most accurate measurement devices because of the design that results in a very small pressure drop. The body of digital turbine flow meters are commonly made of stainless steel 304. According to their needs, customers may choose the stainless steel 316 material.Our company’s LWGY digital turbine flow meter is mainly used to measure liquids . The digital turbine flow meter launched by our company is a volume flow meter.
| Measuring diameter | DN4-DN200 |
| Applicable media range | impurity-free, low viscosity, no strong corrosive liquid |
| Accuracy | 1% |
| Connection method | flange, thread, clamping |
| Medium temperature | -20°C~80°C |
| Nominal pressure | 1.6MPa、4.0MPa、6.3MPa、11MPa、15MPa、26MPa、42MPa |
| Precision class | 0.2, 0.5, 1.0, 2.5 |
| Signal output | Pulse, 4-20Ma, RS485, HART |
| Power supply | DC24V Meter head display 3.6V or DC24V+3.6V |
| Ambient temperature | -20°C~60°C |
| Relative humidity | 5%~90% |
| Meter body material | 304, 316L stainless steel |
| Protection class | IP65 |
| Explosion-proof grade | ExdIICT6Gb |
| Impeller material | 2Cr13 impeller |
| Pressure resistance grade | Duplex steel impeller |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Starting flow rate (m³/h) | Maximum pressure loss (KPa) |
| DN4 | 0.04-0.25 | 0.04-0.4 | 0.02 | 120 |
| DN6 | 0.1-0.6 | 0.06-0.6 | 0.05 | 80 |
| DN10 | 0.2-1.2 | 0.15-1.5 | 0.07 | 50 |
| DN15 | 0.6-6 | 0.5-5 | 0.35 | 35 |
| DN20 | 0.8-8 | 0.45-9 | 0.3 | 35 |
| DN25 | 1-10 | 0.5-10 | 0.4 | 35 |
| DN32 | 1.5-15 | 0.8-15 | 0.6 | 35 |
| DN40 | 2-20 | 1-20 | 0.6 | 35 |
| DN50 | 4-40 | 2-40 | 1 | 35 |
| DN65 | 7-70 | 5-70 | 4 | 25 |
| DN80 | 10-100 | 7-100 | 5 | 25 |
| DN100 | 20-200 | 10-200 | 8 | 25 |
| DN125 | 25-250 | 13-250 | 10 | 25 |
| DN150 | 30-300 | 15-300 | 12 | 25 |
| DN200 | 80-800 | 40-800 | 20 | 25 |
All our liquid turbine flow meter 100% tested and calibrated before shipment to ensure the accuracy, you can ask us to send you the factory testing report paper together with the turbine flow meter.
