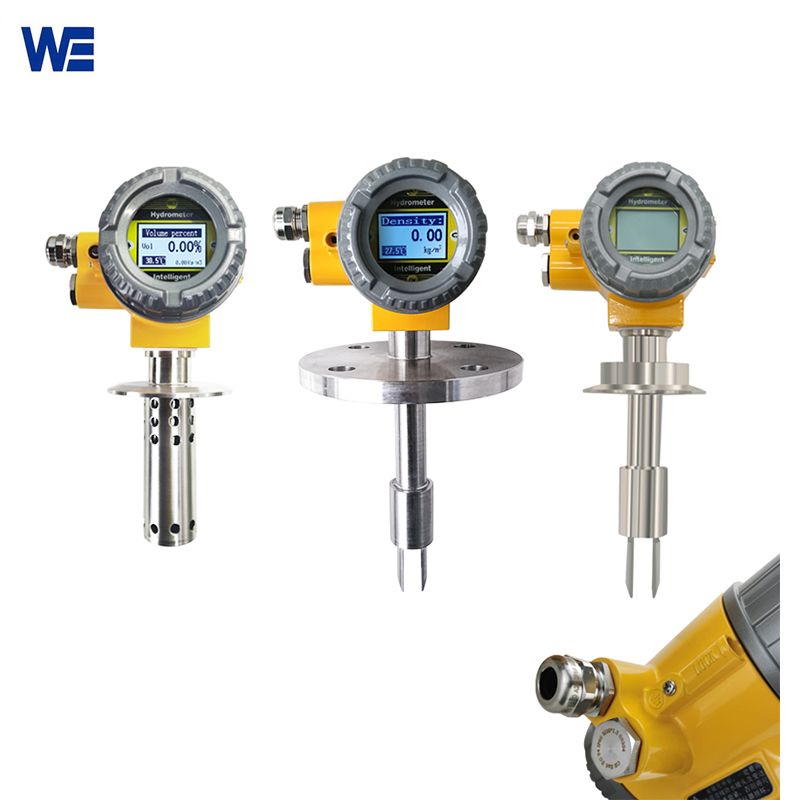

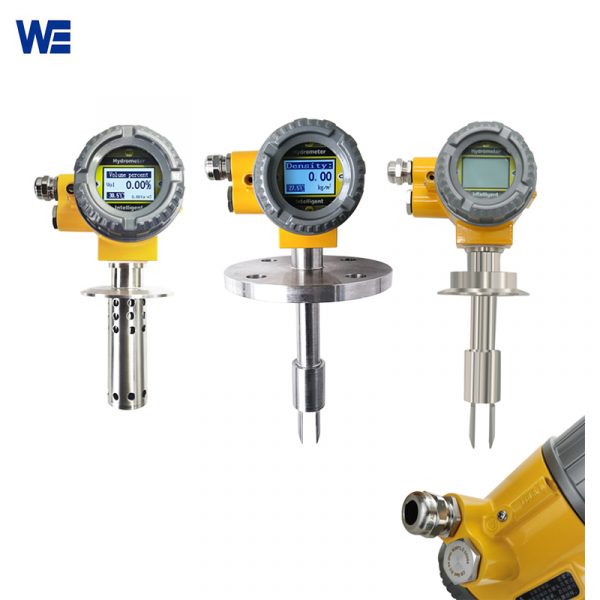

Vibrating Densitometer
Vibrating Densitometer is accurate density and concentration high tech measurement device，WPX301 vibration densimeter is widely used in pipelines, passby pipes , open or closed tanks . According to different liquid media, choose the corresponding wetted material such as SS316, 2205, PTFE sprayed PTFE, titanium alloy, Ha C .
Vibrating Densitometer is accurate density and concentration measurement，it is widely used in pipelines, passby pipes , open or closed tanks .Working principle of vibrating densimeter is detecting by the fully welded fork probe that directly immersed into the liquide to be measured , the fork tines are vibrated piezo-electrically at its natural frequency, therefore the tines’ natural frequency changes with the density of the surrounding liquid. According to different liquid media, choose the corresponding material SS316, 2205, PTFE sprayed PTFE, titanium alloy, Ha C as the wetted material .
Except measuring the clean liquid online ,vibrating densitometer also can measure the liquids of mixed containing solids particles or slurry, but not ideal for measuring crystallization and fouling liquids.
| Product name | Tuning Fork Densitometer/Density Meter Online For Liquids |
| Measurement range | 0-2.5 g /cc (0-2500 kg/m3);，0~100.0% |
| Medium | Liquid;slurry , liquid mixture |
| Function | Test Density and Concentration online |
| Temperature range | -50 c ~+150 c |
| Accuracy | ±1-2kg/m3(± 0.002 g/cc ) |
| Max Working Pressure | 207bar (3000psi) |
| Medium Viscosity | 0-10000cp;Fluid viscosity range 0-2000cp |
| Power Supply | 24 V DC |
| Signal Output | 4 -20 mA，0-1000Hz，RS485 Modbus RTU |
| IP Grade | IP67 |
| Wetted Material | SS316/SS2205/Hastelloy C/ PTFE |
| Process Connecting | Flange (ANSI 150 ~1500 RF，DIN 50 PN16，DIN 50 PN40) /Tri- clamp /Thread |
| Disadvantage | not ideal for measuring crystallization and fouling media |
Wepower WPX301 Vibration densitometer is widely used : Oil field refining, food and beverage, paper industry, chemical acid and alkali solutions. Wine industry, salt, printing and dyeing industries. Lime slurry, desulfurization circulating slurry, oil tank density measurement, salt pond density measurement, sewage density measurement, alcohol density measurement, battery sulfuric acid density measurement, cutting fluid density measurement, electroplating pool density measurement.
| Ordering Sheet | |||||||
| WPX301 | Vibrating Densitometer | ||||||
| / | CODE | Type | |||||
| A | Common | ||||||
| B | High Temp | ||||||
| C | Hygeian（Sanitary) | ||||||
| / | CODE | Length | |||||
| 01 | 150mm（Standard） | ||||||
| 02 | 200mm（Standard ） | ||||||
| 03 | Rod Extension 150mm～3000mm | ||||||
| / | CODE | Pressure | |||||
| D | 24V DC±10% | ||||||
| / | CODE | Material | |||||
| 1 | 316（Standard ） | ||||||
| 2 | 2205 | ||||||
| 3 | Hastelloy C | ||||||
| 4 | Anti-corrosive ，with coated PTFE | ||||||
| 5 | Other Customer Request | ||||||
| / | CODE | Process Connecting | |||||
| G | Dn50 PN16 316L | ||||||
| T | 1.5”G Thread | ||||||
| C | Tri-Clamp | ||||||
| F | Other Customer Request | ||||||
| / | CODE | Other Parameters | |||||
| A | Normal Temperature ℃ | ||||||
| B | Normal Pressure Kpa | ||||||
| C | IP Grade ：IP65 | ||||||
| D | Explosion-proof ：ExdⅡ CT5 | ||||||
| E | Temp:℃ | ||||||
| F | Pressure : Kpa or Mpa | ||||||
| （） | Other Customer Request | ||||||
| WPX301 | A | 01 | D | 1 | G | AB (Example ) | |
