Borehole Water Level Meter
Borehole water level meter provides the most accurate method of measuring the water level, typically used for measuring water level of wells, drilling and pipe, borehole , borewell etc .
What Occasions Are Borehole Water Level Meters Suitable For?
Borehole Water Level Meter provides the most accurate method of measuring the water level, typically used for measuring water levels of wells, drilling and pipe, borehole , borewells, except condensed water, or water level in magnetic fields, this borehole water level meter is very popular because of the low cost and easy operation and maintenance.
How To Use Borehole Water Level Meter?

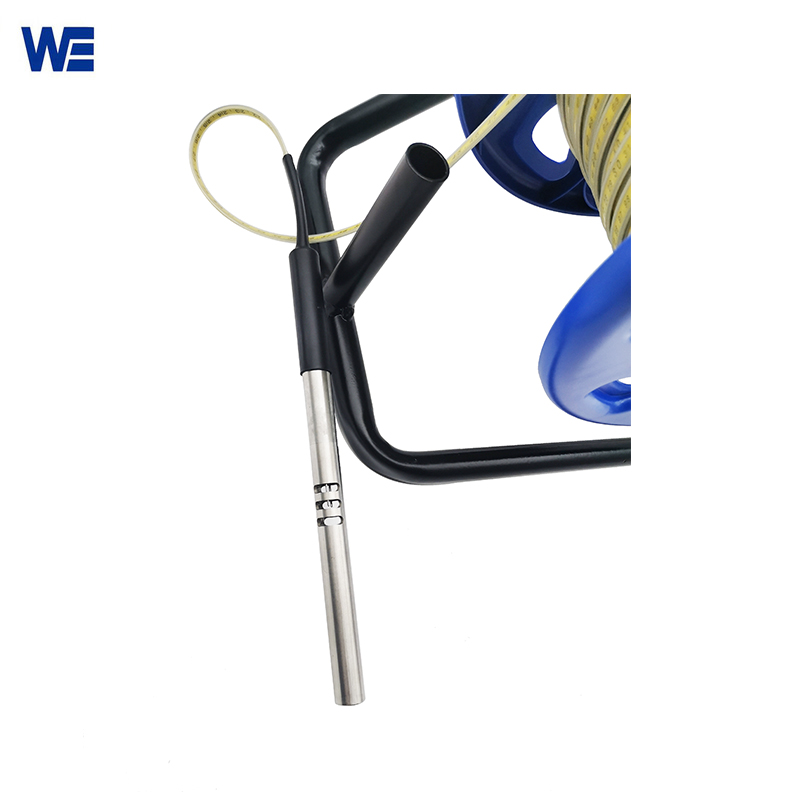

When using Borehole Water Level Meter , after allowing the winding reel to rotate freely, press the power button, put the probe into the water holes, hold the steel ruler cable in your hand, and let the probe move down slowly, when the contact point of the probe touches the water, the sounder of the system will beep continuously. At this time, read the depth dimension of the steel ruler tape at the nozzle, which is the distance between the groundwater level and the nozzle; If the buzzer is not audible while measuring is in a noisy environment, you can observe the indicator light and the voltmeter to learn the measuring result.
| Product Name | Borehole water level meter |
| Measure Range (m) | WCL-30m,WCL-50m,WCL1-00m,WCL-150m,WCL-200m,WCL-250m,WCL-300m, WCL-350m ,WCL-400m, WCL500m, etc |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |
| Material | ● ABS Reel and handle ,Metal frame (Range less than 350m )
● Metal reel , Metal Handle , Metal Frame (Range≥ 400m ) ● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m) |
| Cable Material /Size | Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |
Click The Image To View More About Borehole Water Level Meter
